T&L Brand CNC Press Brake Punch and Dies, Press Brake Bending Tools
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T&L Brand CNC Turret Punching Mold Die Eyelet Punching MouldNegotiableMOQ: 1 -
Drilling Head for Tooth Brush MachineNegotiableMOQ: 1
-
Toothbrush Drilling MachineNegotiableMOQ: 1
-
Wood Tube Making Machine for Toothbrush IndustryNegotiableMOQ: 1
-
T&L Brand CNC Turret Punch Press Tooling Thick Turret Standard 85 Series Punch DieNegotiableMOQ: 1
Company Information
|
Product Description
| Main Features: |
| 1. O frame structure, rigidity is more than 50% higher than common C structure |
|
2. Adopts the most advanced full close loop servo synchronized controlling system |
| 3. The machine is suitable for the production with multi-steps of bending with high bending accuracy. Adopt E type back gauge, with sufficient mechanical strength and stiffness. |
|
4. Small span high rigidity slider design, rigidity is 50% higher than ordinary slider structure.
The parallel tolerance of Y1,Y2 0.01mm. |
| 5. Domestic mechanical crowning device with point-by-point manual adjustment function. Adjustment range of manual crowning is 0-0.5mm. |
| 7. Multi-functional backgauge which can be expanded into 6 axes, i.e., X1 and X2 axes for back and forth, R1 and R2 axes for up and down and Z1 and Z2 for left and right. The workpiece bending can be realized flexibly. |

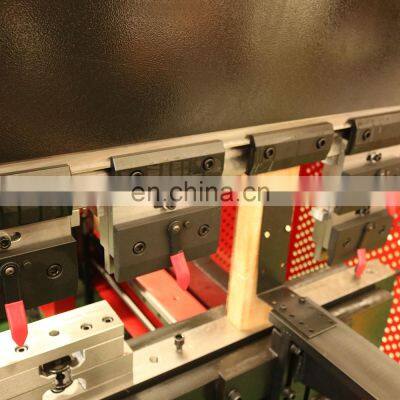

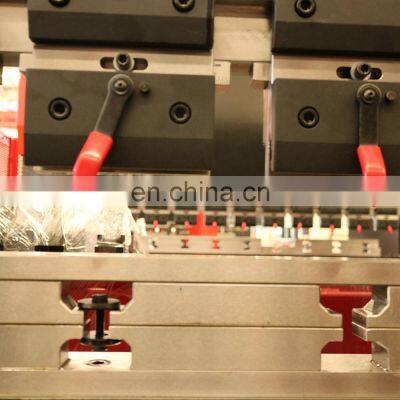

| 8. Segmented punch can be combined with certain length according to the bending requirement of special workpiece. |
| 9. CNC system adopts Delem DA66T/ DA69T CNC system. |
Product Overviews
Our Services
| 1. Standard Service: |
|
Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service. |
| 2. Installation: |
|
Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely. |
| 3. Quality Guarantee: |
|
Our guarantee time is 2 years from B/L Date ,If any component is damaged during guarantee time,we can send the component to the customer By DHL,TNT freely. |

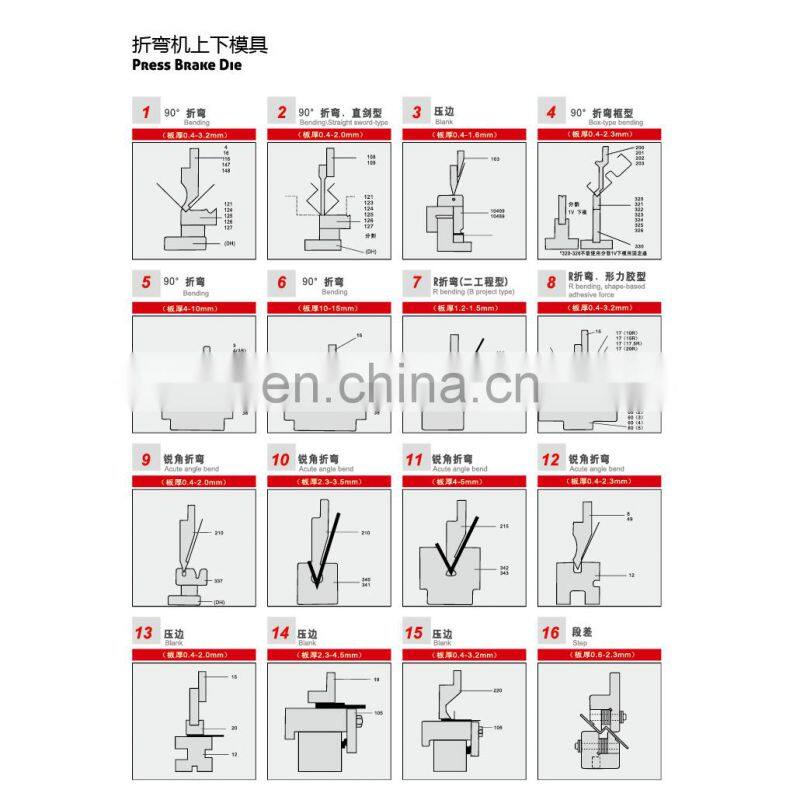

| 4. Order Processing: T&L Brand CNC Press Brake Punch and Dies, Press Brake bending tools |
|
Packaging & Shipping
FAQ
|
Requirement for Customer: |
| 1. Hydraulic oil: imported VG46# anti-wear hydraulic oil; and the required oil mass depend on the machine specification |
| 2. Environment temperature: 0°C - +40°C |
| 3. Environment humidity: relative humidity 20-80%RH(non-condensing) |
| 4. Keep away from the strong vibration source and electromagnetic interference |
| 5. Prepare the foundation according to the foundation drawing |
| 6. Voltage fluctuation 10%--5% |
