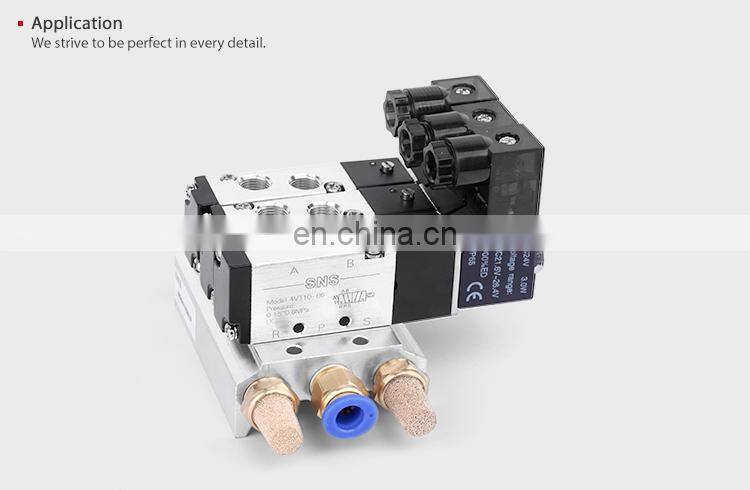

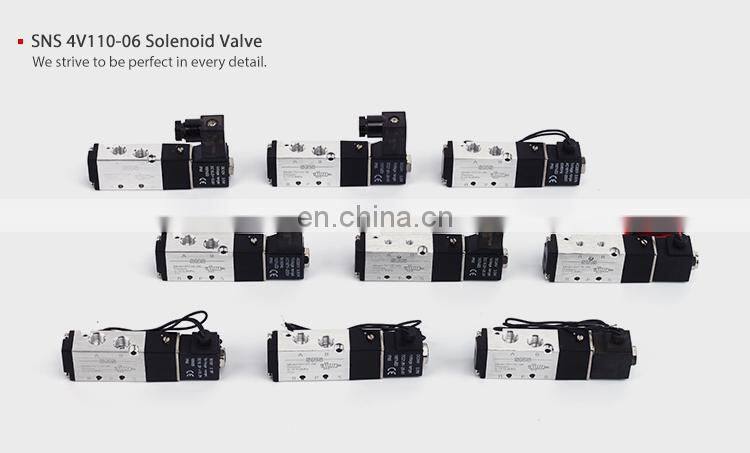

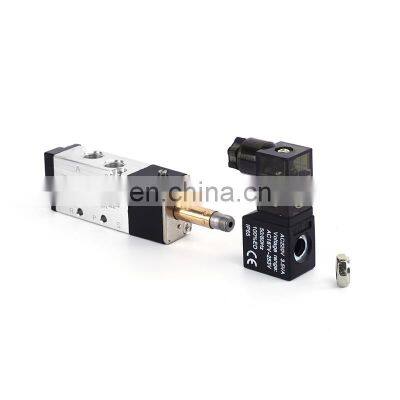

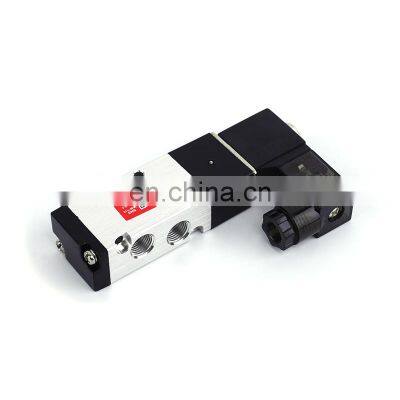

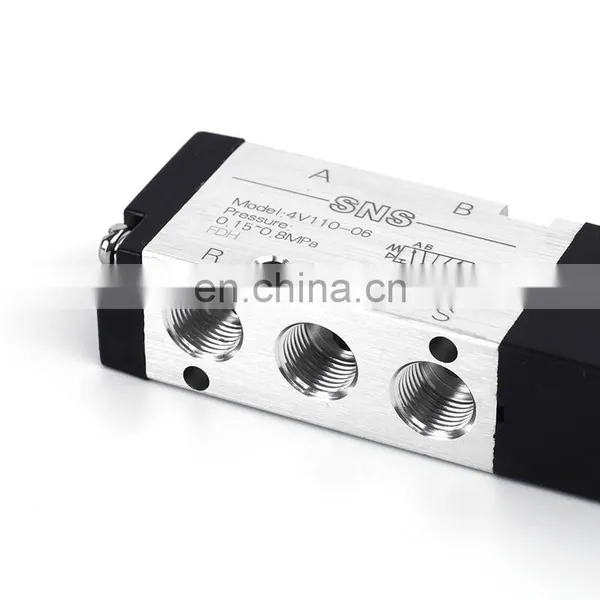

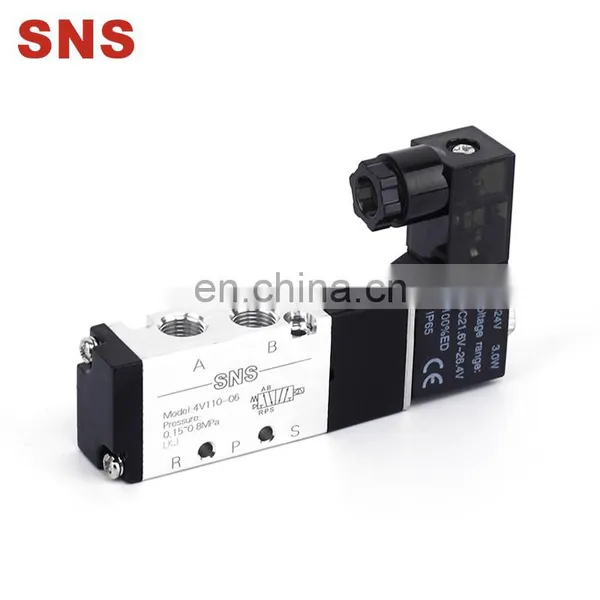

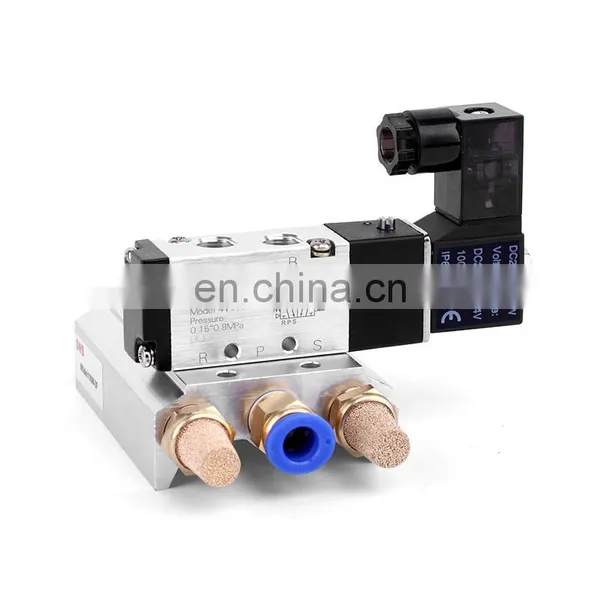

SNS 4V110-06 series inlet single coil pilot-operated electric solenoid valve
| Model |
4V110-06 |
|
| Working Media | Air | |
| Action mode | Internal Pilot Type | |
| Position | 5/2 Port | |
| Effective Sectional Area | 12.0mm²(Cv=0.67) | |
| Port size | Inlet=Outlet=Exhaust Port=G1/8 | |
| Lubication | No Need | |
| Working pressure | 0.15~0.8Mpa | |
| Proof Pressure | 1.0Mpa | |
| Working Temperature | 0-60℃ | |
| Voltage Range | ±10% | |
| Power Consumption | AC:2.8VA DC:2.8W | |
| Insulation Grade | F Level | |
| Protection Class | IP65(DIN40050) | |
| Connecting Type | Wiring Type/Plug Type | |
| Max.Operating Frequency | 5 Cycle/Sec | |
| Min.Excitation Time | 0.05 Sec | |
| Materaial | Body | Aluminum Alloy |
| Seal | NBR | |

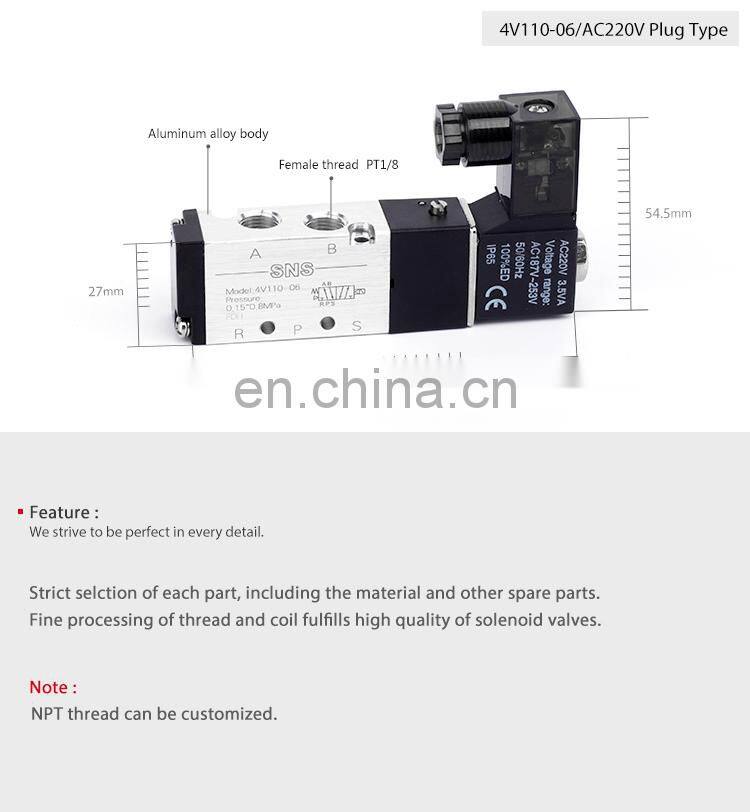

| Model | ΦD | A | B | C | E | F |
| 4V110-06 | G1/8 | 2 | 28 | 14.2 | 16 | 3 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
