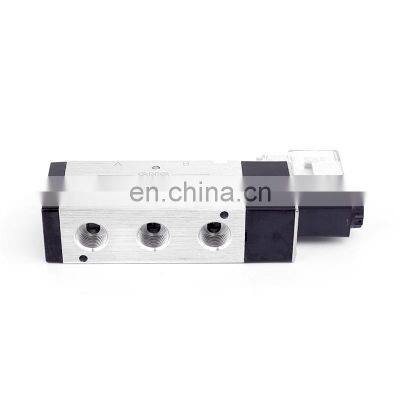

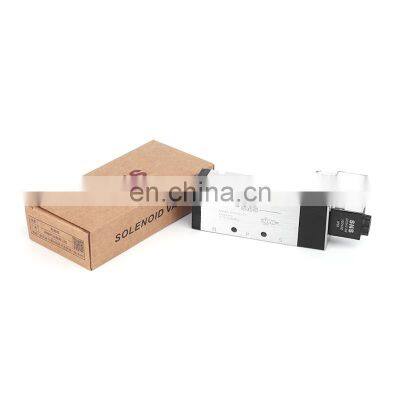

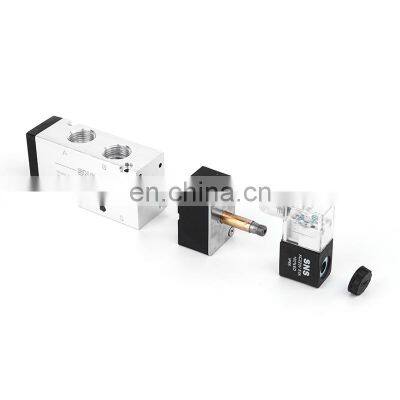

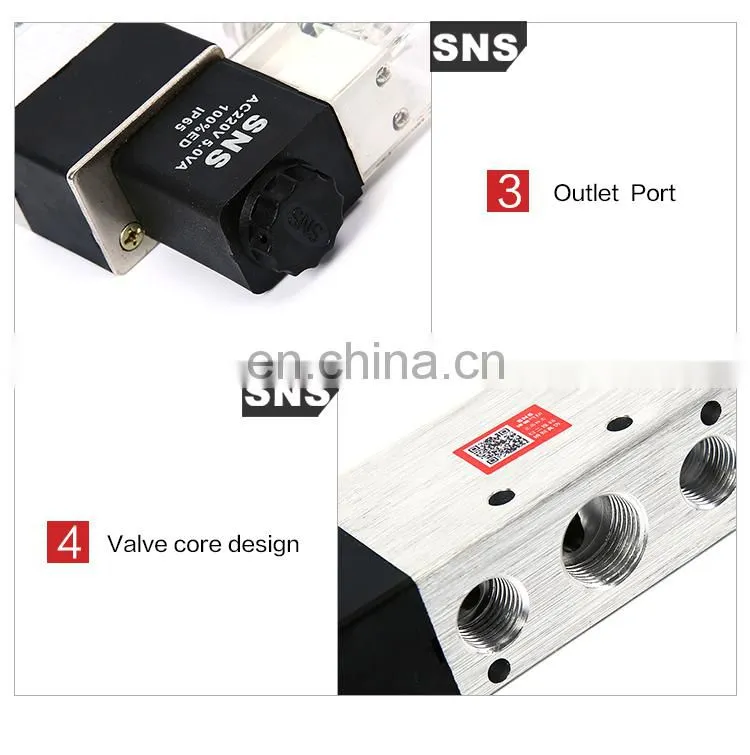

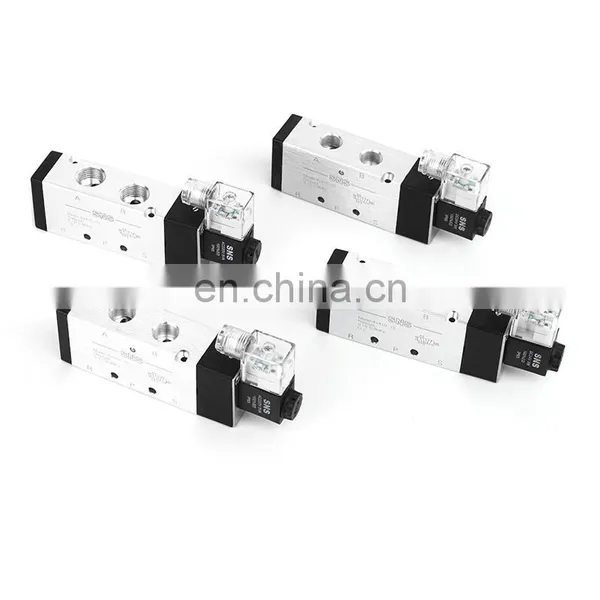

SNS Printing Machine Fittings Pneumatic Valve 4V310-10 Aluminum Alloy Electromagnetic Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS Pneumatic Control Directional Solenoid Valve 4V310-10 Air Source Drive Top ManufacturerNegotiableMOQ: 1 -
SNS 4V110-06 Series Directional Hydraulic Pump Solenoid Control Stainless Steel Solenoid ValveNegotiableMOQ: 1
-
SNS 4V230-08 Series Inlet Double Coils Pilot-operated Electric Solenoid ValveNegotiableMOQ: 1
-
SNS JPL Series Nickel Plated Brass Male Elbow Push to Connect Pneumatic Tube Fitting Air Hose ConnectorNegotiableMOQ: 1
-
SNS AD202-04 Series Pneumatic Drain Valve Automatic Tank Drain Air FilterNegotiableMOQ: 1
China SNS 4V Series Wholesale Pneumatic Solenoid Air flow Control Valve
Banner

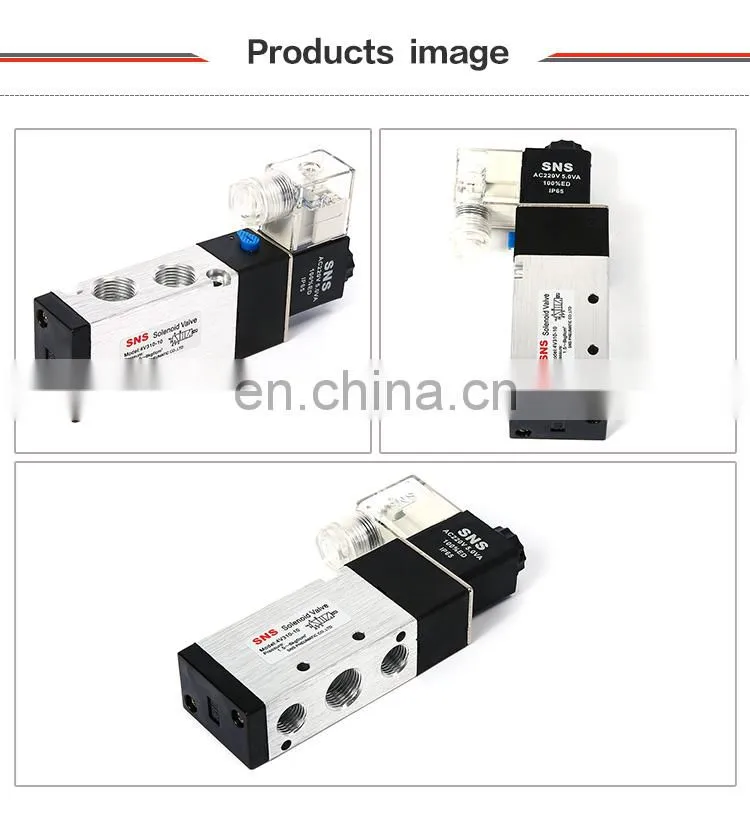

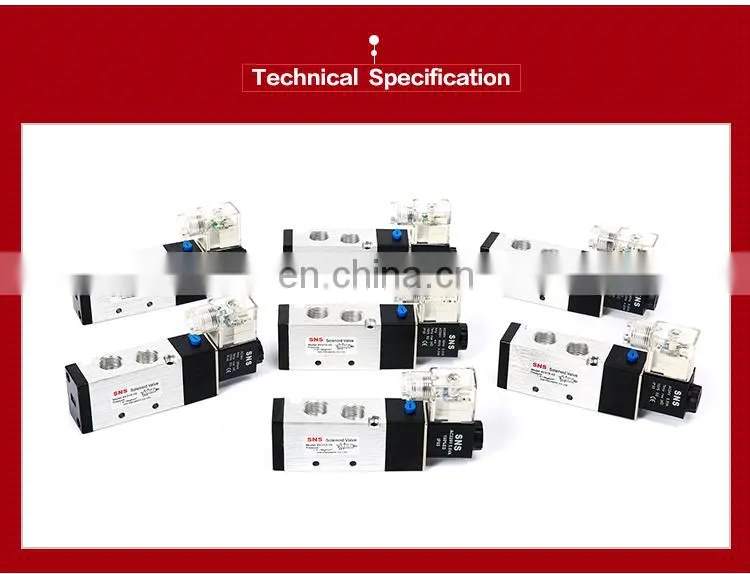

Product Description

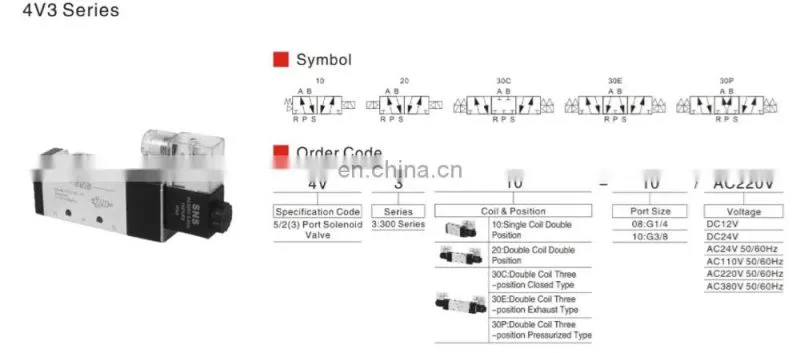

| Model |
4v310-08 4v320-08 |
4v330c-08 | 4v330e-08 | 4v330p-08 | 4v310-10 | 4v320c-10 | 4v330c-10 | 4v330e-10 | 4v330p-10 | |
| Working Media | Air | |||||||||
| Action Mode | Internal Pilot Type | |||||||||
| Position | 5/2Post | 5/3Port | 5/2Port | 5/3Port | ||||||
| Effective Sectional Area | 25.0mm^2(Cv=1.40) | 18.0mm^2(Cv=1.00) | 30.0mm^2(Cv=1.68) | 18.0mm^2(Cv=1.00) | ||||||
| Port Size | Input=Output=Exhaust Post=G1/4 | Input=Output=G3/8,Exhaust Post=G1/4 | ||||||||
| Lubrication | No Need | |||||||||
| Working Pressire | 0.15~0.8Mpa | |||||||||
| Proof Pressure | 1.0Mpa | |||||||||
| Working Temperature | 0~60℃ | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||
| Insulation Grade | F Level | |||||||||
| Protection Class | IP65(DIN40050) | |||||||||
| Connecting Type | Plug Type | |||||||||
| Max.Operating Frequency | 5Cycle/Sec | 3Cycle/Sec | 5Cycle/Sec | 3Cycle/Sec | ||||||
| Min.Excitation Time | 0.05Sec | |||||||||
| Material | Body | Aluminum Alloy | ||||||||
| Seal | NBR | |||||||||

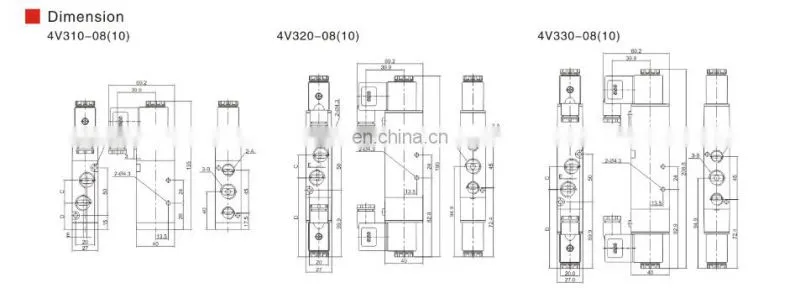

| Model | A | B | C | D | E |
| 4V310-08 | G1/4 | G1/4 | 21 | 28.8 | 3 |
| 4V310-10 | G1/4 | G3/8 | 24 | 27.5 | 4 |
| 4V320-08 | G1/4 | G1/4 | 21 | 83.8 | 3 |
| 4V320-10 | G1/4 | G3/8 | 24 | 82.5 | 4 |
| 4V330-08 | G1/4 | G1/4 | 21 | 83.5 | 3 |
| 4V330-10 | G1/4 | G3/8 | 24 | 82.5 | 4 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
