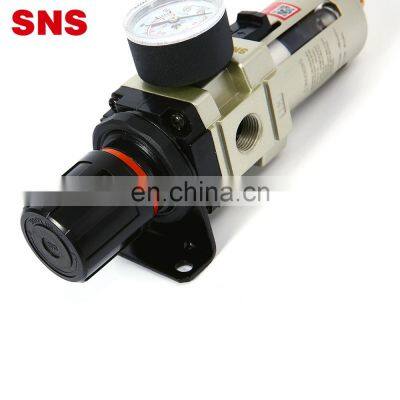

SNS Pneumatic AW Series Air Source Treatment Unit Air Filter Pressure Regulator With Gauge
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS IR Series Pneumatic Control Regulating Valve Aluminum Alloy Air Pressure Precision RegulatorNegotiableMOQ: 1 -
SNS AC Series Pneumatic Air Source Treatment Unit FRL Combination Air Filter Regulator Oil LubricatorNegotiableMOQ: 1
-
SNS Pneumatic AR Series Air Source Treatment Pressure Control Air Regulator With G/PT/NPT ThreadNegotiableMOQ: 1
-
SNS QIU Series High Quality Air Operated Pneumatic Components Automatic Oil LubricatorNegotiableMOQ: 1
-
SNS A/B Series Aluminum Alloy Adjustable Pneumatic Air Source Treatment Filter Air RegulatorNegotiableMOQ: 1

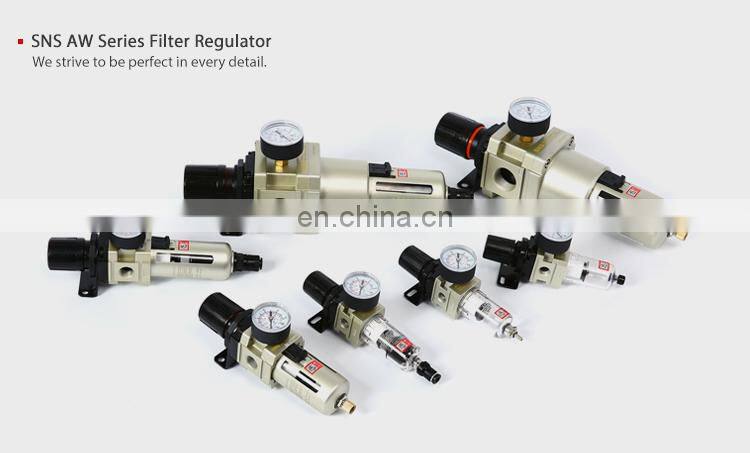

SNS pneumatic AW Series air source treatment unit air filter pressure regulator with gauge
Banner
Product Description
| Model | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| Port Size | M5*0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 |
| Pressure Gange Port Size | M5*0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 |
| Rated Flow(L/Min) | 100 | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 |
| Working Media | Compressed Air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||||||
| Ambient Temperature | 5~60℃ | |||||||||
| Filter Precision | 40μm(Normal) or 5μm(Customized) | |||||||||
| Body material | Aluminum Alloy | |||||||||
| Bracket(one) | B120 | B220 | B320 | B420 | ||||||
| Pressure Gange | Y25-M5 | Y40-01 | Y50-02 | |||||||
| Material | Body Material | Aluminum Alloy | ||||||||
| Cup Material | PC | |||||||||
| Cup Cover | AW100~AW2000: without AW3000~AW5000: with(Steel) | |||||||||

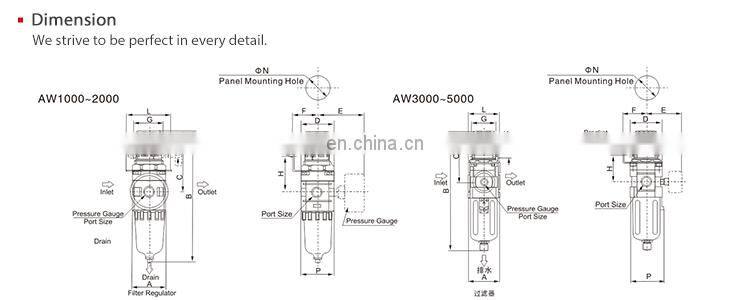

| Model | Port Size | A | B | C | D | F | G | H | J | K | L | M | ΦN | P |
| AW1000 | M5*0.8 | 25 | 109.5 | 50.5 | 25 | 25 | 38 | 30 | 4.5 | 6.5 | 40 | 2.0 | 20.5 | 28 |
| AW2000 | PT1/8,PT1/4 | 43 | 164.5 | 78 | 40 | 30 | 34 | 45 | 5.5 | 10.54 | 55 | 2.3 | 33.5 | 40 |

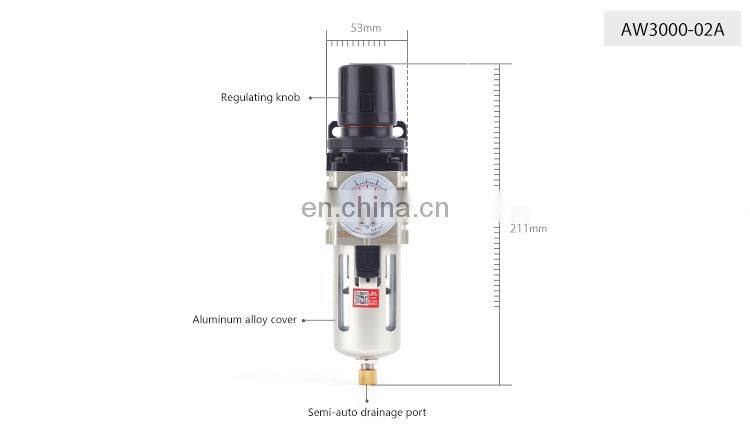

| AW3000 | PT1/4,PT3/8 | 53 | 211 | 92.5 | 53 | 41 | 41 | 46 | 6.5 | 8.0 | 53 | 2.3 | 42.5 | 56 |
| AW4000 | PT3/8,PT1/2 | 70 | 262.5 | 112 | 70 | 50 | 50 | 54 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 |
| AW4000-06 | G3/4 | 75 | 267 | 114 | 70 | 50 | 50 | 56 | 8.5 | 10.5 | 70 | 2.3 | 52.5 |
73 |
| AW5000 | G3/4,G1 | 90 | 345 | 115 | 90 | 50 | 70 | 62 | 9 | 12 | 70 | 2.3 | 52.5 | 73 |
Certificate

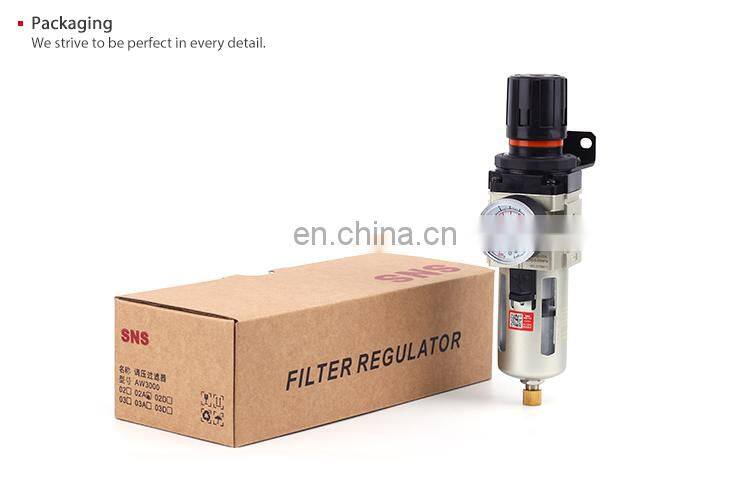

Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
