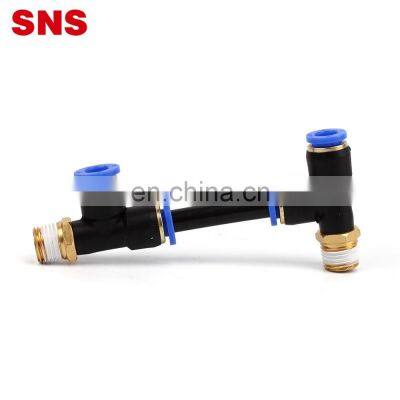

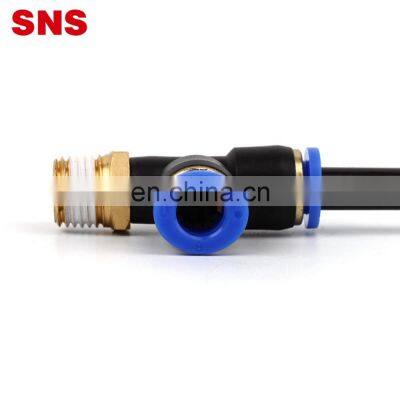

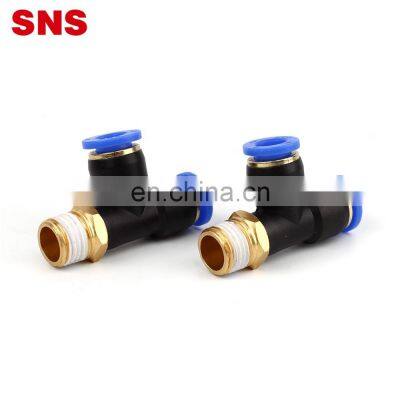

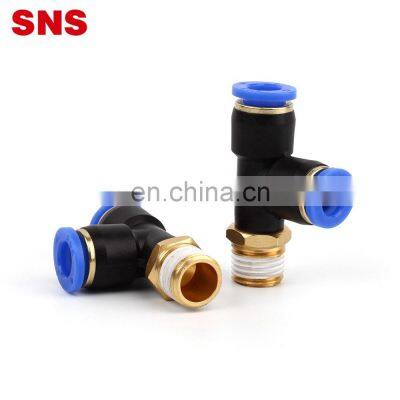

SNS SPD Series pneumatic one touch T type 3 way joint male triple branch run tee plastic quick fitting air hose tube t connector
- 1000 per Month
- T/T Credit Card
-
SNS BW Series pneumatic double male thread straight extension connector adapter brass quick coupler pipe fitting
-
SNS NRC Series pneumatic male threaded rotary tube connector rotating pipe fitting
-
SNS AMC series pneumatic male straight PT thread pipe fast plug-in connector fittings
-
SNS KLB series high quality three joint t type tube fitting pneumatic brass pipe fitting
-
SNS NHRC Series Inch pneumatic high speed straight male threaded brass pipe connector rotary fittings
-
SNS BLSM Series metal zinc alloy fast 2 pin pneumatic quick self-locking couplers fitting
Product Description

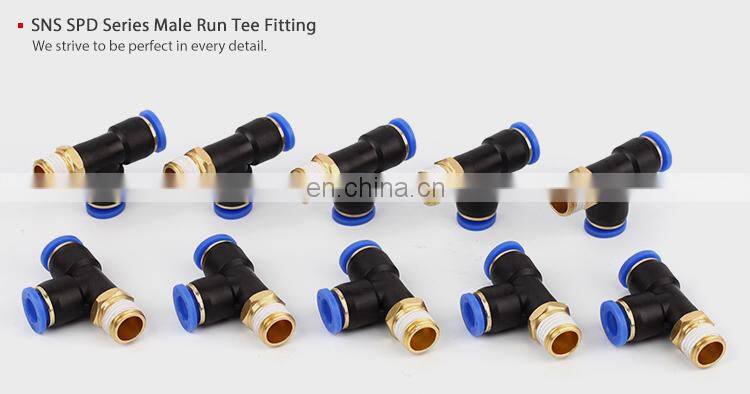

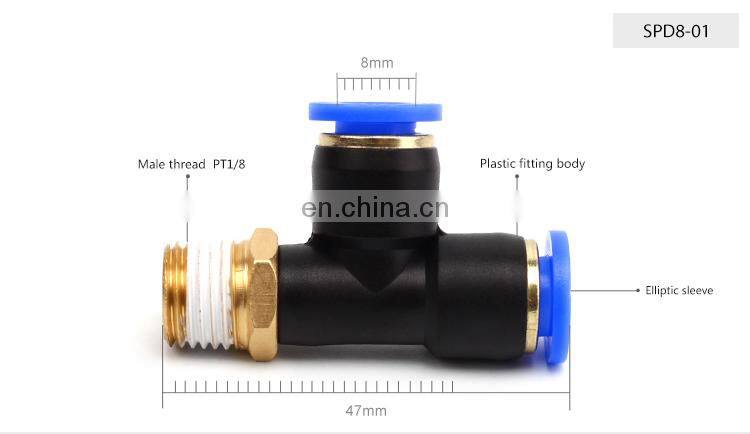

SNS SPD Series pneumatic one touch T type 3 way joint male run tee plastic quick fitting air hose tube t connector

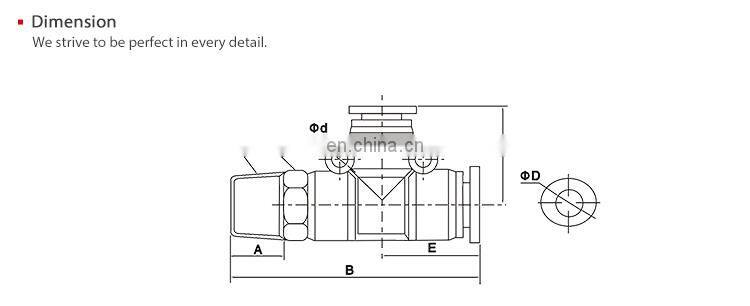

| Inch Pipe | Metric Pipe | Ød | R | A | B | E | H | Ød |
| SPD5/32-M5 | SPD4-M5 | 4 | M5 | 4.5 | 37 | 18.5 | 10 | / |
| SPD5/32-01 | SPD4-01 | 4 | PT1/8 | 7 | 40.5 | 18.5 | 10 | / |
| SPD5/32-02 | SPD4-02 | 4 | PT1/4 | 9 | 42.5 | 18.5 | 14 | / |
| SPD1/4-M5 | SPD6-M5 | 6 | M5 | 4.5 | 41 | 21 | 12 | 3.5 |
| SPD1/4-01 | SPD6-01 | 6 | PT1/8 | 7 | 44.5 | 21 | 12 | 3.5 |
| SPD1/4-02 | SPD6-02 | 6 | PT1/4 | 9 | 46.5 | 21 | 14 | 3.5 |
| SPD1/4-03 | SPD6-03 | 6 | PT3/8 | 10 | 48.5 | 21 | 17 | 3.5 |
| SPD1/4-04 | SPD6-04 | 6 | PT1/2 | 11 | 49 | 21 | 21 | 3.5 |
| SPD5/16-01 | SPD8-01 | 8 | PT1/8 | 8 | 47 | 23 | 14 | 4.5 |
| SPD5/16-02 | SPD8-02 | 8 | PT1/4 | 10 | 48 | 23 | 14 | 4.5 |
| SPD5/16-03 | SPD8-03 | 8 | PT3/8 | 10 | 50.5 | 23 | 17 | 4.5 |
| SPD5/16-04 | SPD8-04 | 8 | PT1/2 | 11 | 51.5 | 23 | 21 | 4.5 |
| SPD3/8-01 | SPD10-01 | 10 | PT1/8 | 8 | 56 | 26 | 14 | 4 |
| SPD3/8-02 | SPD10-02 | 10 | PT1/4 | 10 | 58 | 26 | 14 | 4 |
| SPD3/8-03 | SPD10-03 | 10 | PT3/8 | 10 | 59 | 26 | 17 | 4 |
| SPD3/8-04 | SPD10-04 | 10 | PT1/2 | 11 | 60 | 26 | 21 | 4 |
| SPD1/2-01 | SPD12-01 | 12 | PT1/8 | 8 | 58 | 27 | 14 | 5 |
| SPD1/2-02 | SPD12-02 | 12 | PT1/4 | 10 | 60 | 27 | 14 | 5 |
| SPD1/2-03 | SPD12-03 | 12 | PT3/8 | 10 | 61 | 27 | 17 | 5 |
| SPD1/2-04 | SPD12-04 | 12 | PT1/2 | 11 | 62 | 27 | 21 | 5 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.

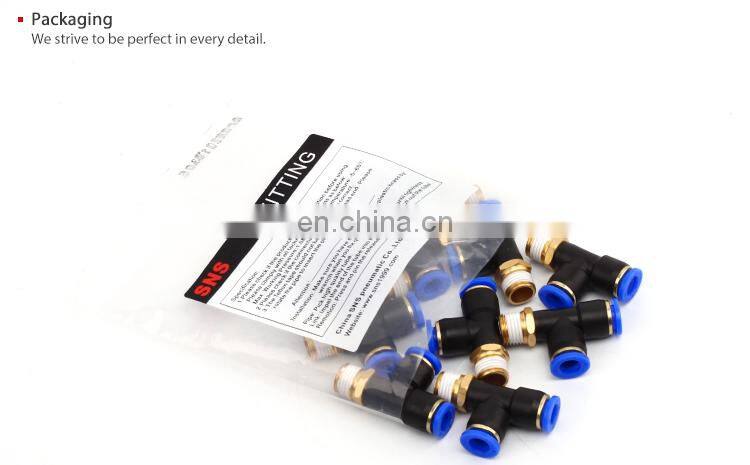

Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
