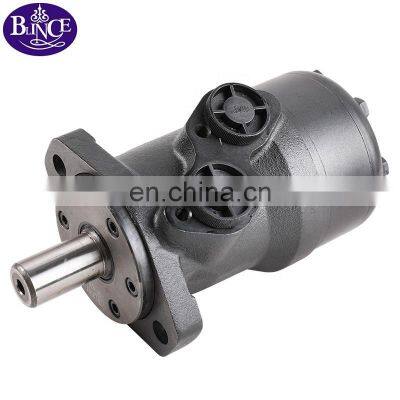

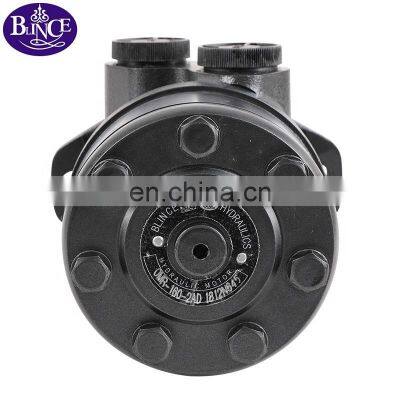

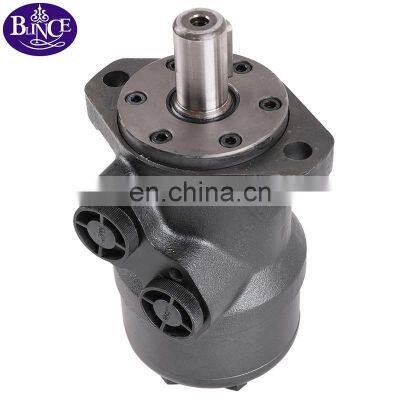

Blince High Speed BMR/OMR 100 160 200 250 375 Orbital Hydraulic Motors for Injection Moulds
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1996
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer Supply Low Speed Large Torque OMT OMTS OMTE OMTJ OMTZ Motors Hydraulic Oil MotorNegotiableMOQ: 1 -
Blince High Quality BMH250 OMM OMP OMR OMH Orbit Hydraulic Motors for Agriculture MachineryNegotiableMOQ: 1
-
Blince Low Speed Large Toruqe OMVE400-K6-CC-S OMV OMVE 800 1000 Orbit Motor Hydraulic MotorsNegotiableMOQ: 1
-
Blince Replace Danfoss Parker OMR BMRS OMRS Hydraulic Orbital Motor For Micro ExcavatorNegotiableMOQ: 1
-
Blince Factory Supply Speed 30-1341rpm Max Torque 400N.M OMP 36-400cc Hydraulic Orbit MotorNegotiableMOQ: 1
Product Description
BLINCE OMR series Orbital Hydraulic Motor
OMR motors are interchangeable with MR, SMR, BMR, OZMR or EPMR motors
Orbital hydraulic motors OMR are medium size motors which have compact and light construction. They are characterized by maximum rotational speeds of 55 through 800 rpm and maximum power from 4 to 10 kw. Due to the simpe design of the motors, they can be used in light operating conditions.
Rotational speed range: from 5 through 800 rpm; maximum continuous pressure: up to 140 bar.
Features
Displacement: 52.9 - 317.3 cm3/rev;
Rotational speed range: 5 - 800 rpm;
Maximum pressure: from 90/130 through 140/200 bar (continuous/peak);
Maximum power: 5 - 17 kW.
Multiple displacement, Multiple flanges, multiple shaft types are available for your choice.
OMR Orbital Hydraulic Motor
Displacement range: 36cc,50cc,80cc,100cc,125cc,160cc,200cc,250cc,315cc,400cc
Mounting flange: 2 bolts,4 bolts
Output shaft: Straight shaft, Spline shaft, Tapered shaft
Port: G3/4,G1/4.
Rotation direction: Bi-directional
Distribution Type |
Model |
Displacement (lm/r)(cm3/rev) |
Max. Operating Pressure( Bar/Mpa) |
Speed Range (rpm) |
Max.output power (KW) |
Axial Distribution
|
BMP/OMP |
36-500 |
225/22.5 |
30-1650 |
13 |
BMR/OMR |
36-375 |
200/20 |
30-1220 |
17 |
|
BMH/OMH |
200-500 |
225/22.5 |
30-430 |
18.5 |
|
BMM/OMM |
8-50 |
200/20 |
30-1950 |
3.2 |
|
BMJ |
65-375 |
200/20 |
30-842 |
17.9 |
Distribution Type |
Model |
Displacement (lm/r) (cm3/rev) |
Max. Operating Pressure( Bar/Mpa) |
Speed Range(rpm) |
Max.output power (KW) Cont. |
Max.output power (KW) Int. |
Disc Distribution
|
BMSY |
80-475 |
225/22.5 |
30-800 |
20 |
25 |
BMER |
125-750 |
276/27.6 |
30-470 |
18 |
21 |
|
BMT |
160-800 |
240/24 |
30-705 |
35 |
40 |
|
BMV |
315-1000 |
280/28 |
10-446 |
43 |
52 |
Application
Related Products
Orbital motor.
OMM/BMM Hydraulic motor,
OMR/BMR hydraulic motors
OMP/BMP orbital motor,
OMSY/BMSY hydraulic orbital motor,
BMT/OMT orbital motors,
OMV/BMV orbital hydraulic motor,
BMK2/BMK6/BMER hydraulic gerotor motor.
Hydraulic product:
Radial piston hydraulic motor
Oil cooler
Hydraulic valve
Steering control unit
Vane pump
Company Profie
Blince
Dongguan Blince Machinery & Electronics Co., Ltd was established in the year of 2004, which specializing in design, manufacture and sales of hydraulic components. Blince Hydraulics has become the leading manufacturer of hydraulic components, as well as a well known enterprise in the world.
Specializing in design, manufacturing and sales of hydraulic product include hydraulic orbital motor, radial piston motor, hydraulic pump, hydraulic steering control unit, oil cooler, hydraulic system and more, with over 15 years experience onproducts research and development.
Orbital motor from small OMM type to large torque OMS, OMT and OMV series. Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31.
We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port. It is very convenient for us to arrange shipment by sea.
For hydraulic equipment, please look for Blince！
For hydraulic equipment, please look for Blince！
Exhibition Customers
Why Choose Us
*Blince company advantage
*Hydraulic motor spare part and production line
*Hydraulic motor assembly line
*Hydraulic motor teat after production and before shipment
*Our High Quality Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Teach how to MOUNTING and USE the hydraulic motor.
* Sample testing support. * Arrange shipment 7-30days and update tracking No.
* View our Factory. * Warranty 1 year.
* Inquiry and consulting support. * Teach how to MOUNTING and USE the hydraulic motor.
* Sample testing support. * Arrange shipment 7-30days and update tracking No.
* View our Factory. * Warranty 1 year.
Payment Term
1,T/T, Paypal, Wester union and Alibaba Trade Assurance.
2. Delivery time: 7-15days after receiving deposite.
3. samples for quality reference are available.
4. Shipping port: Shenzhen/Guangzhou as your require.
2. Delivery time: 7-15days after receiving deposite.
3. samples for quality reference are available.
4. Shipping port: Shenzhen/Guangzhou as your require.
*Packing & Deliver
Package
Size: 1.2 (L) *0.8(W) * 0.8 (D)
Packaging Details:
Packaging Details:
1. 30/50/100pcs wooden case
2. 100pcs plastic/wooden pallet.
3. 1 piece seperate weeden case.
2. 100pcs plastic/wooden pallet.
3. 1 piece seperate weeden case.
Delivery
1. MOQ is 1pc, price is more favorable for large quantity.
2. Leading time is within 3days if have inventory. If don't, within 30days if the quantity is less than 500pcs.
3. DHL, UPS, FEDEX, TNTetc, usually 5-7 days to arrive.
4. By sea/air, FOB/CIF trade etc, is normally 20-30days.
2. Leading time is within 3days if have inventory. If don't, within 30days if the quantity is less than 500pcs.
3. DHL, UPS, FEDEX, TNTetc, usually 5-7 days to arrive.
4. By sea/air, FOB/CIF trade etc, is normally 20-30days.
