Product Description
Blince

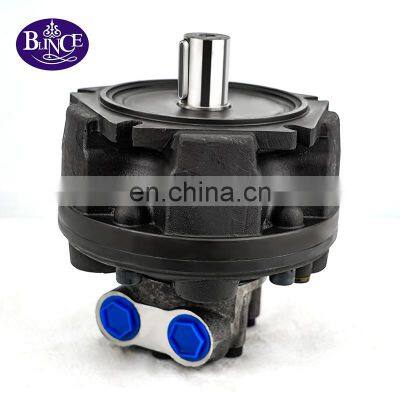

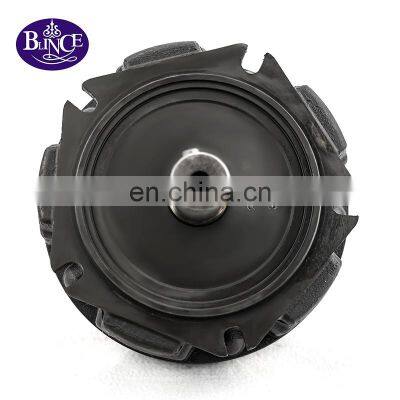

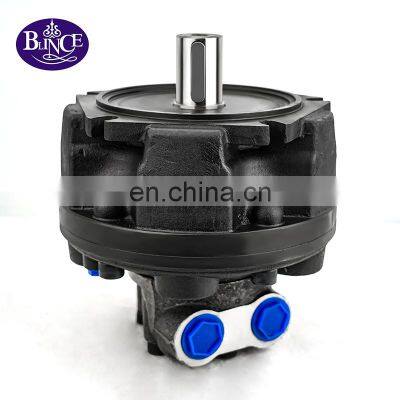

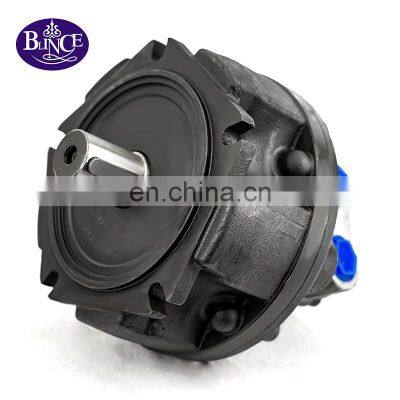

GM Series GM05 760N.m Radial Piston Hydraulic Motor for Hydraulic Transmission Systems
GM series hydraulic motor is a new type of product of our company, which is based on years practical experience. The design is improved in the foundation on the original technologies.
Products application range：
As GM series hydraulic motor has the above characteristic, it has wide application range. It can be applied in the hydraulic transmission systems of various types of machinery in plastic injection machine, light industry machine, engineering machine, metallurgical equipment, petroleum, coal mine, geological prospecting, railway, ship, environment protection, machine tool and agriculture machine industries.
Technical Data |
||||||||||||||||
Model |
Displacement (ml/r) |
Rated pressure (Mpa) |
Peak pressure (Mpa) |
Rated torque (N.m) |
Theoric specific torque (N.m/Mpa) |
Speed range (r/min) |
nt speed(r/min) |
Weight (kg) |
||||||||
GM05-(60-200) |
59-191 |
25 |
31.5-28 |
235-760 |
9.4-30.4 |
(1-700)-(1-600) |
1000-800 |
22 |
||||||||
GM1-(100-350) |
99-340 |
25 |
31.5-28 |
385-1350 |
15.4-54 |
(1-550)-(1-350) |
1000-600 |
31 |
||||||||
GM2-(200-630) |
192-623 |
25 |
31.5-28 |
750-2433 |
30-97.3 |
(0.7-550)-(0.7-400) |
800-650 |
51 |
||||||||
GM3-(425-1000) |
426-987 |
25 |
31.5-28 |
1660-3850 |
66.4-154 |
(0.5-500)-(0.5-300) |
650-350 |
87 |
||||||||
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. For hydraulic equipment, please look for Blince！
|
||||||||||||||||
Model |
Displacement (ml/r) |
Rated pressure (Mpa) |
Peak pressure (Mpa) |
Rated torque (N.m) |
Theoric specific torque (N.m/Mpa) |
Speed range (r/min) |
nt speed(r/min) |
Weight (kg) |
GM05-60 |
59 |
25 |
31.5 |
235 |
9.4 |
1-700 |
1000 |
22 |
GM05-75 |
74 |
25 |
31.5 |
295 |
11.8 |
1-700 |
1000 |
22 |
GM05-90 |
86 |
25 |
31.5 |
343 |
13.7 |
1-700 |
1000 |
22 |
GM05-110 |
115 |
25 |
31.5 |
458 |
18.3 |
1-650 |
900 |
22 |
GM05-130 |
129 |
25 |
31.5 |
513 |
20.5 |
1-650 |
900 |
22 |
GM05-150 |
151 |
25 |
31.5 |
600 |
24 |
1-650 |
900 |
22 |
GM05-170 |
166 |
25 |
31.5 |
660 |
26.4 |
1-600 |
800 |
22 |
GM05-200 |
191 |
25 |
28 |
760 |
30.4 |
1-600 |
800 |
22 |
Recommend Products
Hydraulic motor-- Blince hydraulic motor Can perfect replace:
Danfoss: OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV/ DH/ DS series , TE/ TG/ TF series
Eaton Char Lynn: J (129-), H(101-) , S(103-), T(158-), 2000(104-), 6000 series orbit motor
M+S: MM, MLHM/MP, MLHP/MR, MLHR/ MH, MLHH/ MS, MLHS/MT, MLHT/MV, MLHV hydraulic motor.
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Hydraulic vane pump-- Blince hydraulic motor Can perfect replace:
Denison: T6C/T6DC/T6EDC
Yuken: PV2R series
Vickers: V/VQ/ V10/V20 series
Tokimec: SQP series
ect.
Company Profie
Blince
Dongguan Blince Machinery & Electronics Co., Ltd was established in the year of 2004, which specializing in design, manufacture and sales of hydraulic components. Blince Hydraulics has become the leading manufacturer of hydraulic components, as well as a well known enterprise in the world.
Specializing in design, manufacturing and sales of hydraulic product include hydraulic orbital motor, radial piston motor, hydraulic pump, hydraulic steering control unit, oil cooler, hydraulic system and more, with over 15 years experience onproducts research and development.
Orbital motor from small OMM type to large torque OMS, OMT and OMV series. Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31.
We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port. It is very convenient for us to arrange shipment by sea.
