Product Description

Blince

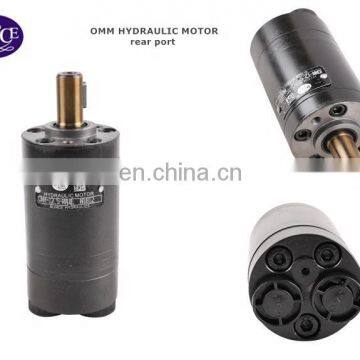

BMM OMM 1500 rpm High Speed Hydraulic Orbit Motor
Orbital hydraulic motors MM and MMS are lightweight, small gerotor motors are designed for continiuous work in light conditions. The MM motors can transfer low power at relatively high rotational speed in comparsion with other motors with similar construction. They can reach maximum power up to 3.2 kW.
Rotational speed range: from 20 through 1950 rpm; maximum continuous pressure: up to 105 bar.
Main Features:
1,Displacement: 8.2 - 50 cm3/rev;
2,Rotational speed range: 20 - 1950 rpm;
3,Maximum pressure: from 70/125 bar through 105/200 bar (continuous/peak);
4,Maximum power: 2.1 - 3.2 kW.
OMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Characteristic features: 1.Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life. 2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series. 3.Advanced construction design, high power and low weight.
Model
OMM-8
OMM-12.5
OMM-20
OMM-32
OMM-40
OMM-50
Geometric displacement（cm²/rev.）
8.2
12.9
19.9
31.6
39.8
50.3
Max.speed（rpm）
cont.
1950
1550
1000
630
500
400
int.
2450
1940
1250
800
630
500
Max.torque
(N*m)
cont.
11
16
25
40
45
46

int.
15
23
35
57
70
88
Max.output
（kw）
cont.
1.8
2.4
2.4
2.4
2.2
1.8

int.
2.6
3.2
3.2
3.2
3.2
3.2
ure drop (MPa)
cont.
10
10
10
10
9
7
int.
14
14
14
14
14
14
Max.flow
(L/min)
cont.
16
20
20
20
20
20
int.
20
25
25
25
25
25
Max.inlet pressure (MPa)
cont.
17.5
int.
22.5
Net weight (kg)
1.9
2
2.1
2.2
2.3
2.4
*Rated speed and rated torque: output value of speed and torque under rated flow and rated pressure;
*Continuous pressure: Max.value of operating motor continuously;
*Intermittent pressure: Max. value of operating motor in 6 seconds per minute;
*Peak pressure: Max.value of operating motor in 0.6 second per minute.
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs.
For hydraulic equipment, please look for Blince！
