Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor

Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor thumbnail-1
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor thumbnail-2
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor thumbnail-3
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor thumbnail-4
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor thumbnail-5
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor photo-1
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor photo-2
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor photo-3
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor photo-4
Blince OMSY250 Orbital Hydraulic Motor Crane Rotation Motor photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1996
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Dongguan Blince Machinery & Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

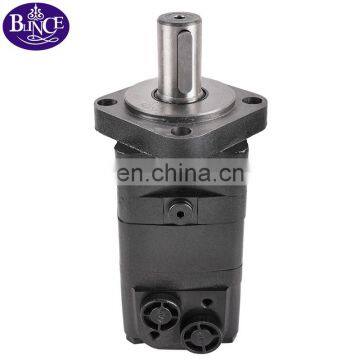

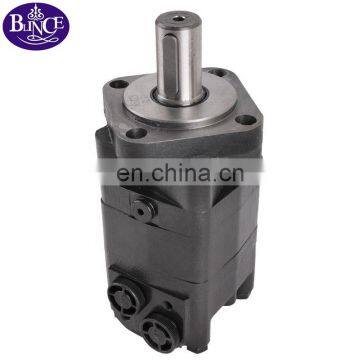

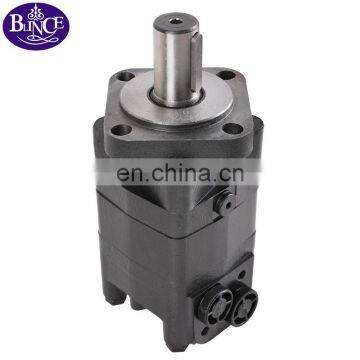

                                  Blince OMSY250 orbital hydraulic motor Crane rotation motor


BMS/OMS/BMSY/OMSY/MS/MLHS orbital motors are characterized by high torque and maximum speeds between 180 and 810 rpm. They are dedicated to continuous work in heavy duty conditions. The BMS series and the OMZS series consist of eight compact models. These motors are gear motors with internal gear (rotor).

Rotational speed range: from 5 through 810 rpm; maximum continuous pressure: up to 235 bar.

Advantages:
Low pressure start;
Reinforced shaft seal;
High startup torque and ability to withstand significant back pressures;
The ability totransferaxial and radial loads;
Compact volume and easy installation.

Applications:
The BMS and OMZS motors are used in forklifts, agriculture machinery, small loaders, indystry machines, cconveyors etc.
Distribution Type
Model
Displacement (lm/r)(cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range
(rpm)
Max.output power (KW)



 Axial Distribution
BMP/OMP
36-500
225/22.5
30-1650
13
BMR/OMR
36-375
200/20
30-1220
17
BMH/OMH
200-500
225/22.5
30-430
18.5
BMM/OMM
8-50
200/20
30-1950
3.2
BMJ
65-375
200/20
30-842
17.9
Distribution Type
Model
Displacement (lm/r) (cm3/rev)
Max. Operating
Pressure( Bar/Mpa)
Speed Range(rpm)
Max.output power (KW)
Cont.
Max.output power (KW)
Int.


Disc Distribution
BMSY
80-475
225/22.5
30-800
20
25
BMER
125-750
276/27.6
30-470
18
21
BMT
160-800
240/24
30-705
35
40
BMV
315-1000
280/28
10-446
43
52
Detailed Images

Dongguan Blince Machinery & Electronics Co., Ltd
specializing in design,manufacturing and sales of hydraulic product include hydraulic orbital motor,radial piston motor,hydraulic pump,hydraulic steering control unit,and oil cooler. Orbital motor from small OMM type to large torque OMS,OMT and OMV series.Vane pump include Yuken PV2R series, Vickers V/VQ series and Tokemic SQP series. Radial piston motor like NHM1 to NHM31. We are located in Dongguan city which is an manufacturing city nearby Shenzhen port and Guangzhou port.It is very convenient for us to arrange shipment by sea.

                                                                                    Factory pictures:

                                                                      Hydraulic motor spare part and production line:

   Hydraulic motor body BEFORE processing.                                                 Hydraulic motor body AFTER processing.

                                                                                     Hydraulic motor Assembly line

                                      Hydraulic motor TEST after production and before shipment.

Packing & Delivery

Package:

Size: 1.2 (L) *0.8(W) * 0.8 (D)
Packaging Details:

1. 30/50/100pcs wooden case

2. 100pcs plastic/wooden pallet.

3. 1 piece seperate weeden case.

Exhibition customer
Our Service

Pre-Sales Service

 * Inquiry and consulting support.

* Sample testing support.
* View our Factory.

After-Sales Service

* Teach how to MOUNTING and USE the hydraulic motor.

* Arrange shipment 7-30days and update tracking No.
* Warranty 1 year.

Payment term:

1,T/T, Paypal, Wester union and alibaba Trade Assurance.


2. Delivery time: 7-15days after receiving deposite

3. samples for quality reference are available

4. Shipping port: Shenzhen/Guangzhou as your require.
