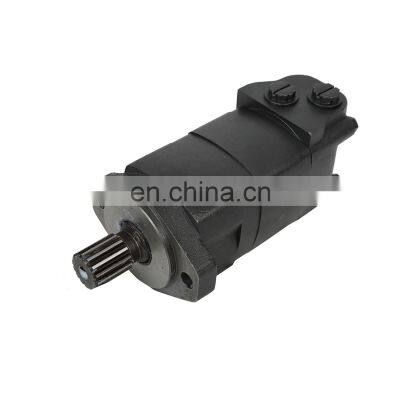

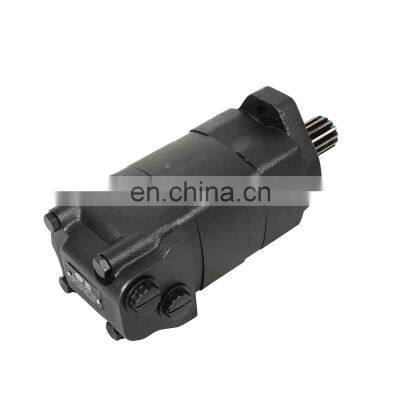

Char-Lynn 104-1229-006, 14 spline 2000 Series LSHT Hydraulic Motor
Blince BMK2 series Hydraulic motor replace Eaton char-lynn 2000 series hydraulic motor
Displacement - 28.98 cu in
Mounting - SAE "A", 2 Bolt
Shaft - 1-1/4" 14 DP Spline
Rotation - Bi-Directional
Ports - 7/8"-14 SAE O-Ring
Max Speed - 155 rpm (cont) / 185 rpm (interm)
Max Flow - 19.81 gpm (cont) / 23.77 gpm (interm)
Max Torque - 8053 lb-in (cont) / 8495 lb-in (interm)
Max Differential Pressure - 2030 psi (cont) / 2175 psi (interm)
Product Name
|
eaton 2k hydraulic motors |
Material |
Cast iron |
Color |
Black , Gray |
Flange |
Wheel flange |
Shaft |
31.75mm/32mm/1:10 tapper shaft /17th splined shaft/14th splined key shaft |
Flow Distribution |
Axial Distribution Type |
Brand |
Blince |
Used |
Drilling rig ,Harvesters, Augers, Conveyors, Machine Tools, Food Processing |
EPMSY - Reinforced orbital motor (OMS) with straight 32mm shaft and SAE A-4 4-bolt mount
EPMSYE - Reinforced orbital motor (OMS) with straight 32mm shaft and SAE A-4 4-bolt mount rear ports
EPMSYF - Reinforced orbital motor (OMS) with splined 14th shaft and magneto mount
EPMSS - Orbital motor (OMSS) short model
EPMSW - Orbital motor (OMSW) with 1:10 tapered 35mm shaft and wheel mount
All series hydraulic orbit motor
Radial piston hydraulic motor replace NHM/Staff
BZZ/101/101S steering control unit replace OSPB/OSPC
Packing Details : Standard export wooden case package/ Pallet package
Delivery Details : 3-30 days after order and get the payment.
1. Cartons package
2. Wooden case package
3. pallet package
4. Standard wooden case package
5. Waterproof package
6. Complete package
Thailand Exhibition
Vietnam Exhibition
Warehouse
Workline
Russian customers
After visit Blince-hydraulic factory, customer purchase OMT250cc hydraulic motor for their Drilling rig.
France customer purchase about 500pcs for the mini Excavator every two month.
Vietnamese distributor purchase 1000pcs motor,pump ans steering control unit for local customer each month.
hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers
2.freely disassemble leakage,no leakage!!
3.phosphating coating to protect from rusting,no rust!!
4.double needle bearing ,can bear more large radial force
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: For stock order, 100% in advance. For the order no have in sotck. 30% in advance, and full payment before shipping.
