Sizzix Big Shot Duty Heavy Corrugated Automatic Die Cutting Machine With Full Stripping

FOB Price

USD $32000 - $148000 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port Qingdao
Payment Terms:T/T L/C Credit Card
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Lukes	Place of Origin:	China	Model Number:	LKS-1650G
Certification:	CE	Type:	Die-cutting Machine	After-sales Service Provided:	Overseas third-party support available
Weight:	38000KG	Dimension(LWH):	11200x5560x2550mm	Condition:	New
Voltage:	34.6KW	Power(W):	380V.50HZ	Computerized:	Yes

Product Description

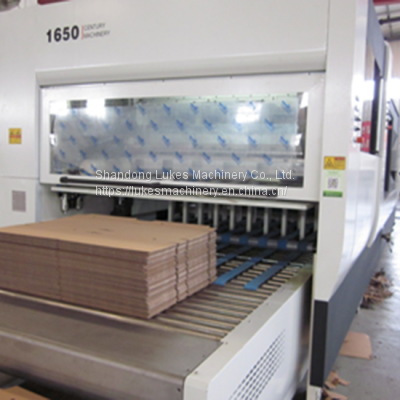

1650x1200mm duty heavy sizzix big shot corrugated carton lead edge automatic die cutting machine with full stripping model

Products Description

Name	High speed lead edge automatic die cutting machine
Model	LKS1650G
Max.sheet Size	1650×1200mm
Min.sheet Size	650×550mm
Max.Die-Cutting Size	1630×1180mm
Max.Mechanical Speed	5500s/h (depand on die and sheet’s conditions)
Min.gripper waste	Min.gripper waste
Die cutting precision	± 0.5mm
Electrical Power	380V.50HZ, 3-Phase
Max.Die-Cutting Pressure	450tons
Gross Weight	38000KGS
Stock range	E.B.C.A and AB flute corrugated board ≤ 9mm
Inner chase size	1660x1210mm
Dimension	11200x5560x2550mm( include working platform)

Advantage

Which adopts high technology with gear main drive can run max speed 5500s/h, shorter preparation process and perfect quality, which professional applies to all kinds of corrugated board.
Paper hold down pressing plate is adjustable to adapt warped board, no double sheets to ensure continuous and smooth feeding.
Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.
Main drive adopts high quality precision worm gear and toggle system.

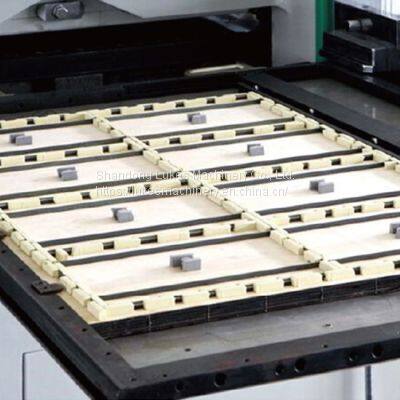

Centreline system for quick stripping tool set up and change over, compatiable with centreline Il.
Front edge waste removal system removes and transfers waste edge outside the machine visa conveyor belt
Counter can set based on your products stack request, which will be improve working efficiency.
Motorized upper frame suspending hoister.

Application

More Products

Payment & Delivery

Company Profile

    Lukes machinery is a leading manufacturer and supplier for design 、manufacturer 、sale and service of flat bed die cutting machine and folder gluer machine as well as corrugated converting equipment such as flexo printing machine with case marker/ flute laminating machine /stitching machine and handle stripping machine for more than 15 years in package filed .
    We have a professional team with 12 excellent technical engineers 8 after sales engineers and rich experience sales of corrugated /cardboard package industry and keeps good relations with many equipment factories.
    Lukes group is not only on order fulfillment but also promoting a cordial relation with our clients forever to get best result. We takes a consultative approach and likes to full understand the needs of our client so that we are able to offer the best solution.
    We will serve every of our clients with professional knowledge of packages industry by heart.
    Looking forward to hearing from you to initiate a long term and satisfying relationship.

Certifications

Exhibition & Clients

FAQ

1. Q:Are you trading company or manufacturer?

     A: We are manufacturer, and also provide the business solution to all the friends.

2. Q：What is your delivery time ?

     A：Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

     A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q：How was your machine warranty ?

     A：our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply       cost spare parts and free maintenance knowledge .

5. Q：How can you do after sales service ?

     A：beside the quality guarantee, our company also regards the after sales service, using a full        arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
     hours on phone / on site technical support / on site service / preventive maintenance also training
     again.

6. Q：What’s your payment terms ?

     A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also      accepted for us .
