Paper Die Cutting Ceasing used Corrugated Carton Die Cutter Machine/ Corrugated Cardboard Die Cutting Machine With Automatic

FOB Price

USD $68000 - $138000 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port Qingdao
Payment Terms:T/T L/C Credit Card
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Lukes	Place of Origin:	China	Model Number:	LKS-1620B
Certification:	CE	Type:	Die-cutting Machine	After-sales Service Provided:	Overseas third-party support available
Weight:	27T	Dimension(LWH):	10695x5248x2677mm	Condition:	New
Voltage:	34.6KW	Power(W):	380V.50HZ	Computerized:	Yes

Product Description

Paper Die Cutting Ceasing used Corrugated Carton Die Cutter Machine/ Corrugated Cardboard Die Cutting Machine With Automatic

Products Description

Name	Lead Edge Automatic Die Cutting Machine With Stripping
Model	LKS1620G
Max.sheet Size	1650×1210mm
Min.sheet Size	650×550mm
Max.Die-Cutting Size	1620×1190mm
Max.Mechanical Speed	4200s/h (depand on die and sheet’s conditions)
Die cutting precision	± 0.5mm
Electrical Power	380V.50HZ, 3-Phase
Max.Die-Cutting Pressure	350tons
Gross Weight	27T
Stock range	E.B.C.A and AB flute corrugated board ≤ 9mm
Inner chase size	1650x1220mm
Dimension	10695x5248x2677mm( include working platform)

Advantage

1. Adopt high-tech chain main drive, the maximum running speed is 4500s/h, the preparation process is shorter, the quality is perfect, and it is professionally suitable for all kinds of corrugated cardboard. 2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets to ensure continuous and smooth feeding. 3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin. 4. Main drive adopts high quality precision worm gear and toggle system. 5. Centreline system for quick stripping tool set up and change over, compatiable with centreline Il. 6. Front edge waste removal system removes and transfers waste edge outside the machine visa conveyor belt 7. Counter can set based on your products stack request, which will be improve working efficiency. 8. Motorized upper frame suspending hoister.

Feed Section

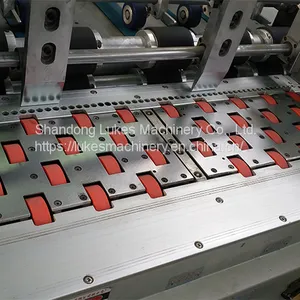

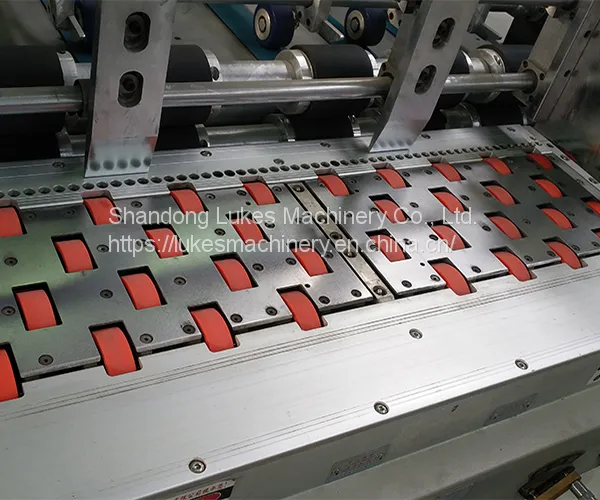

New technology polyurethane wheel surface with gridlifer ensuresmooth feeding and accurate alignment even warped board.

Double servo motor control high precision feed.

Feed Table

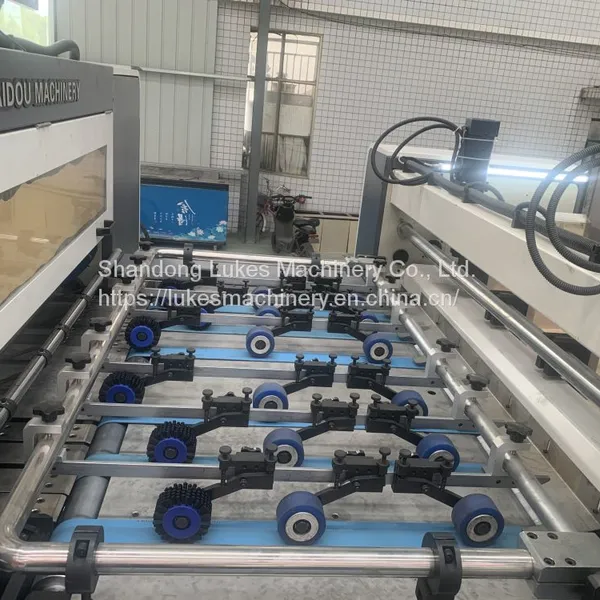

Servo driven with adjustable slow down ensuring sheet arrives at entry to die cutter under control.

Front gauge no stop back and forth adjustable to accommodate variation in gripper margin.

Die Cutting Section

Quality precision-made die cutting unit with built in overload mechanism. Easy loading and removal of chase and plate, centralized
positioning for speedy make ready.

New technology of driving index with large motion angle to allow gripper bar gentle start and stop, less and smaller nicks
required to achieve higher productivity.

Stripping Section

Double action movement with upper and lower stripping frames.
Male and female boards inserted subject to desired job. Right, left,and internal stripping function to optimise stripping.
Centralised positioning to reduce downtime onstripping set-up.

Delivery Section

Standard pallet style delivery unit presented in a neat stack allowing simple extraction of die cut blanks.

Optional non-top batch counter collector to increase production and work-flow.

Application

More Products

Payment & Delivery

Company Profile

    Lukes machinery is a leading manufacturer and supplier for design 、manufacturer 、sale and service of flat bed die cutting machine and folder gluer machine as well as corrugated converting equipment such as flexo printing machine with case marker/ flute laminating machine /stitching machine and handle stripping machine for more than 15 years in package filed .
    We have a professional team with 12 excellent technical engineers 8 after sales engineers and rich experience sales of corrugated /cardboard package industry and keeps good relations with many equipment factories.
    Lukes group is not only on order fulfillment but also promoting a cordial relation with our clients forever to get best result. We takes a consultative approach and likes to full understand the needs of our client so that we are able to offer the best solution.
    We will serve every of our clients with professional knowledge of packages industry by heart.
    Looking forward to hearing from you to initiate a long term and satisfying relationship.

Certifications

Exhibition & Clients

FAQ

1. Q:Are you trading company or manufacturer?

     A: We are manufacturer, and also provide the business solution to all the friends.

2. Q：What is your delivery time ?

     A：Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

     A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q：How was your machine warranty ?

     A：our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply       cost spare parts and free maintenance knowledge .

5. Q：How can you do after sales service ?

     A：beside the quality guarantee, our company also regards the after sales service, using a full        arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
     hours on phone / on site technical support / on site service / preventive maintenance also training
     again.

6. Q：What’s your payment terms ?

     A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also      accepted for us .
