1、 Overview
Lrsz-200-y powder bulk dust collection machine is mainly used in bulk cement and building materials, metallurgy, mining, chemical, grain and other departments of the powder loading and unloading truck, ship. The machine has the characteristics of automatic control of the whole loading process, strong adaptability of the process, no dust outside, reliable indication of full material, simple structure and low cost. The technical index reaches the international level of similar products.
2、 The bottom of the bulk machine
1.Schematic diagram of bulk machine at the bottom of the warehouse
2, Description
(1) Bulk machine is not suitable for materials with viscosity, corrosion and temperature higher than 150℃.
(2) The loading speed of SZ type cement bulk machine is determined by the unloading valve and the conveying capacity of the conveying equipment. Loading large cars, trains or boats usually requires great speed. About 120-300 tons/hour, loading ordinary bulk truck requires a slower speed, about 60-100 tons/hour.
(3) Pneumatic valves should be selected in the case of compressed air source (pressure about 0.4mpa) in the workplace.
(4) For users with special needs can be specially designed and manufactured.
(5)SZ type cement bulk machine is divided into two forms: control cabinet control and button station control. Requirements should be explained when ordering.
(6) When ordering, please indicate the model and the number of units and attach the process diagram.
3、 Warehouse side bulk machine

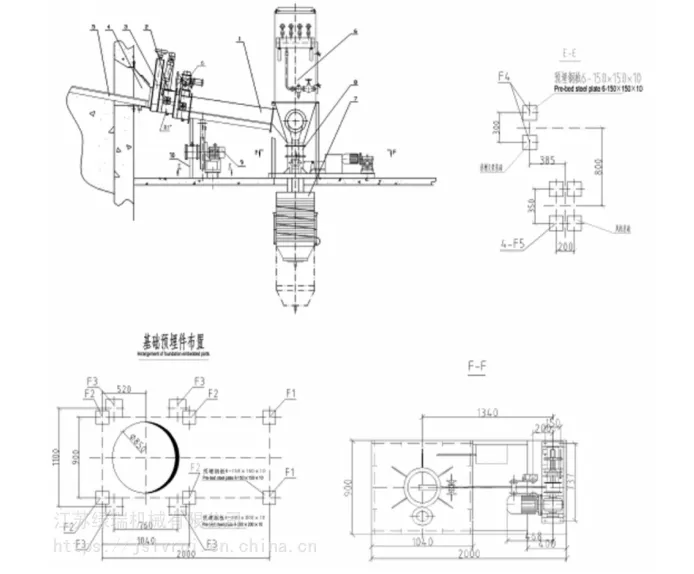

1. Schematic diagram of bulk machine at warehouse side
1, chute 2, electric on/off valve 3, inflatable spiral gate 4, outlet connecting groove
5, charging box 6, dust collector 7, bulk head 8, pipe 9, chute fan 10, support
2, description,
(1) The bulk machine is suitable to be installed on the side of the warehouse, and the loading capacity is 60-300t/h;
(2) The inclined Angle of chute installation is 6°. When the inclined Angle is increased or decreased, the loading capacity changes accordingly.
