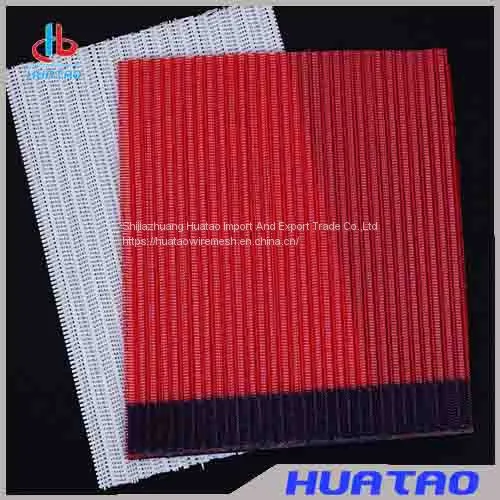

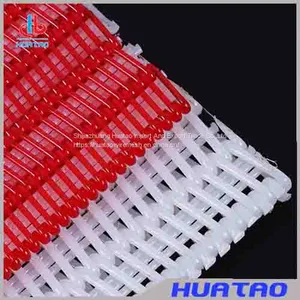

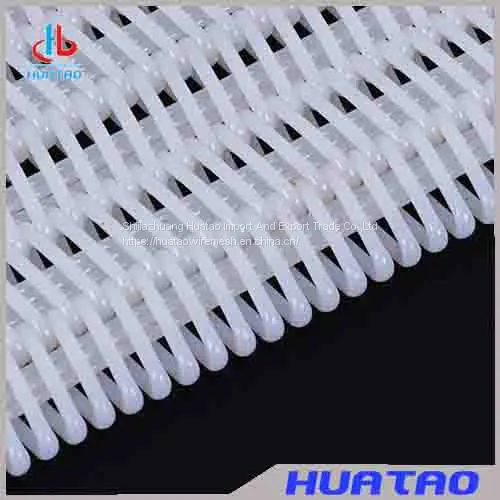

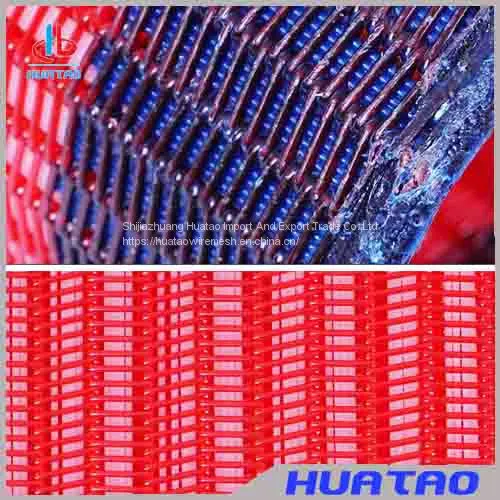

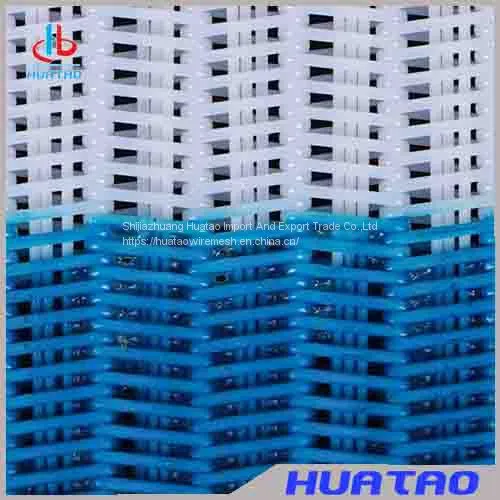

Polyester Spiral Mesh Belt

Polyester Spiral Mesh Belt thumbnail-1
Polyester Spiral Mesh Belt thumbnail-2
Polyester Spiral Mesh Belt thumbnail-3
Polyester Spiral Mesh Belt thumbnail-4
Polyester Spiral Mesh Belt thumbnail-5
Polyester Spiral Mesh Belt photo-1
Polyester Spiral Mesh Belt photo-2
Polyester Spiral Mesh Belt photo-3
Polyester Spiral Mesh Belt photo-4
Polyester Spiral Mesh Belt photo-5
Negotiable MOQ: 100 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUATAOI
Place of Origin:
China
Model Number:
7
Contact Supplier Request Quote Chat Now
Shijiazhuang Huatao Import And Export Trade Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUATAOI
Place of Origin China
Model Number 7
Material 100% Polyester
Use Industry
Certification Other
Supply Type Make-to-Order
Feature Anti-Static

Specification

Material of Polyester Spiral Mesh Belt,100% polyester

Small loop,Middle loop,Big loop,etc

Mainly used in paper making,rubber thread production, printing and dyeing, food, pharmaceutical,

ceramics and sold & liquid separation industry, mine, metallurgy and other fields.



Polyester Spiral Mesh Belt,also named Polyester Spiral Belt,Spiral Link Dryer Screen spiral synthetic fabrics,polyester spiral link dryer fabric(SLDF),polyester spiral dryer screen.

It can be devided into small loop,medium loop,large loop,etc



Features

Large air permeability with long life time. Flat surface and Good Strength.

High temperature resistance,abrasion resistance and aging resistance.



Applications

Polyester Spiral Mesh Belt are mainly used in paper making,rubber thread production, printing and dyeing, food, pharmaceutical,

ceramics and sold & liquid separation industry, mine, metallurgy and other fields.



Technical Parameters

Model

Warp thread diameter
mm

weft thread diameter
mm

The specification of single loop

Weight kg/m2

Thickness mm

Air permeability CFM/127 Pa

Large loop

0.9

1.1

LW 4.0 X8.0mm

1.7

3

900cfm-1250cfm

Medium loop

0.7

0.9

LW 3.8X6.8mm

1.4

2.5

900cfm-1250cfm

Small loop

0.5

0.7

LW 3.2X5.2mm

1.1

1.9

900cfm-1250cfm

More details contact us:

Huatao Group - Polyester Wire Mesh

Web: www.huataowiremesh.com

Email: maple@huataogroup.com

Tel: 0086 0311 80690567

Mob: 0086 133 8311 0583




Product Tags: Polyester Spiral Belt , Spiral Link Dryer Screen, SLDF , Polyester Spiral Dryer Fabric
