Antistatic Synthetic Mesh Belt

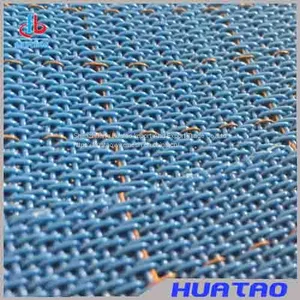

Antistatic Synthetic Mesh Belt thumbnail-1
Antistatic Synthetic Mesh Belt thumbnail-2

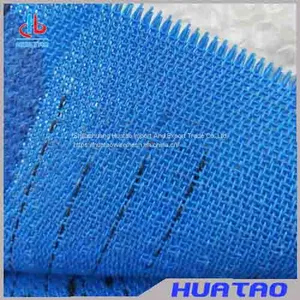

Antistatic Synthetic Mesh Belt thumbnail-3
Antistatic Synthetic Mesh Belt thumbnail-4

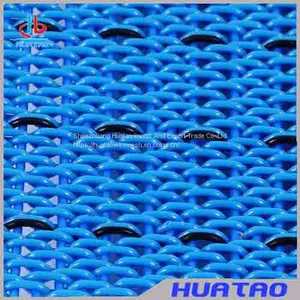

Antistatic Synthetic Mesh Belt thumbnail-5
Antistatic Synthetic Mesh Belt photo-1

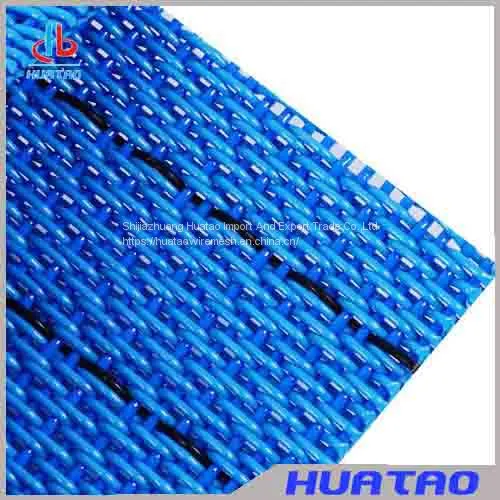

Antistatic Synthetic Mesh Belt photo-2
Antistatic Synthetic Mesh Belt photo-3

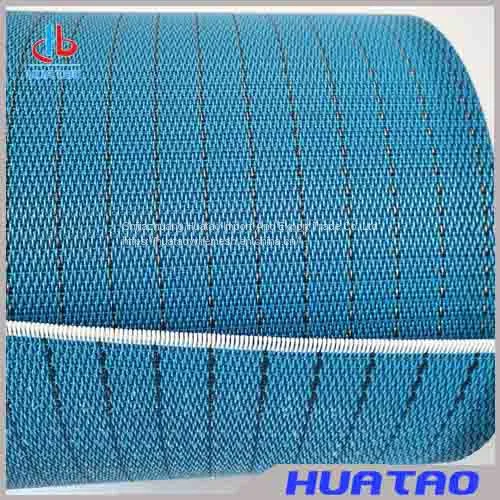

Antistatic Synthetic Mesh Belt photo-4

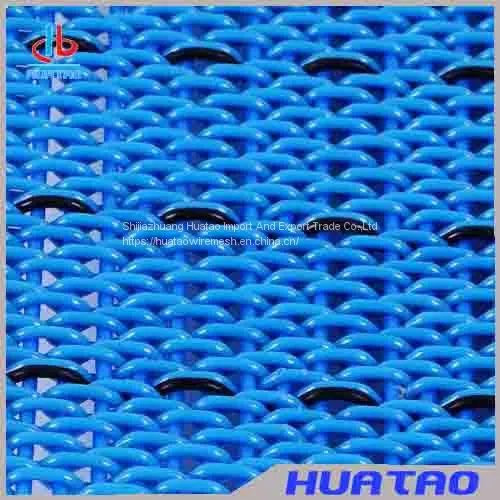

Antistatic Synthetic Mesh Belt photo-5
Negotiable MOQ: 100 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUATAO
Place of Origin:
China
Model Number:
1
Contact Supplier Request Quote Chat Now
Shijiazhuang Huatao Import And Export Trade Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUATAO
Place of Origin China
Model Number 1
Material 100% Polyester
Use Industry
Supply Type Make-to-Order
Style Plain
Feature Anti-Static

Specification

Polyester Material

Antistatic monofilament material, carbon wire or bronze wire

Model HT31505 HT14804,HT14804-1

Mainly used for MDF (Medium-density fibreboard ) board and fiberboard process industry, chemical fiber and drying for papers,spunbond nonwoven fabric production,ect



Description:

Antistatic synthetic mesh belt,can be named as polyester conductive conveyor belt,antistatic process belt,polyester mesh belt with carbon wire,etc

Antistatic synthetic mesh belt is professional unique design and weaving from Polyester fiber & bronze wires or cabon wire, mainly used for MDF (Medium-density fibreboard ) board and fiberboard process industry, chemical fiber and drying for papers,spunbond nonwoven fabric production,ect. Act the continous press filter belt of forming press and other application with antistatic requirement.



Technical Parameters

Model

warp filament diameter

mm

weft filament diameter

mm

warp density

thread/cm

weft density

thread/cm

surface tensile strength
N/cm

joint tensile strength
N/cm

weight

Kg/m2

thickness

mm

CFM

127Pa

Electric conductivity

Ω*cm

31505

0.40

0.50

33

9

1600

900

0.80

1.30

186

5*10³

14804

0.65

0.80

14.8

7.2

2000

900

1.6

1.95

430

5*10³

14804-1

0.65

0.80

14.8

7.2

2000

900

1.6

1.95

430

5*10³

4106

0.50

0.30/0.70

22.8

2200

900

1.5

1.80

500

5*10³

14708

0.64

0.70

15

8

2000

900

1.03

1.78

700

6*10³

12708

flat wire 0.46×0.68

0.70

14.1

7.3

2000

900

0.90

1.76

500

6*10³



More details contact us:
Huatao Group - Polyester Wire Mesh
Web: www.huataowiremesh.com
Email: maple@huataogroup.com
Tel: 0086 0311 80690567
Mob: 0086 133 8311 0583




Product Tags: Antistatic Synthetic Mesh Belt , Antistatic polyester mesh , Polyester Anti-static Woven Mesh Belt
