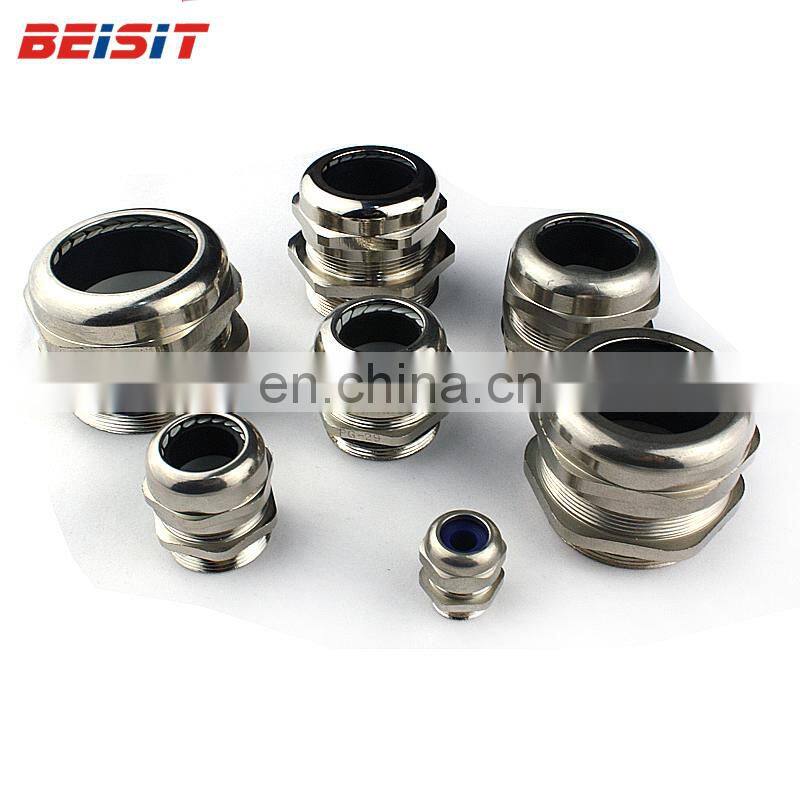

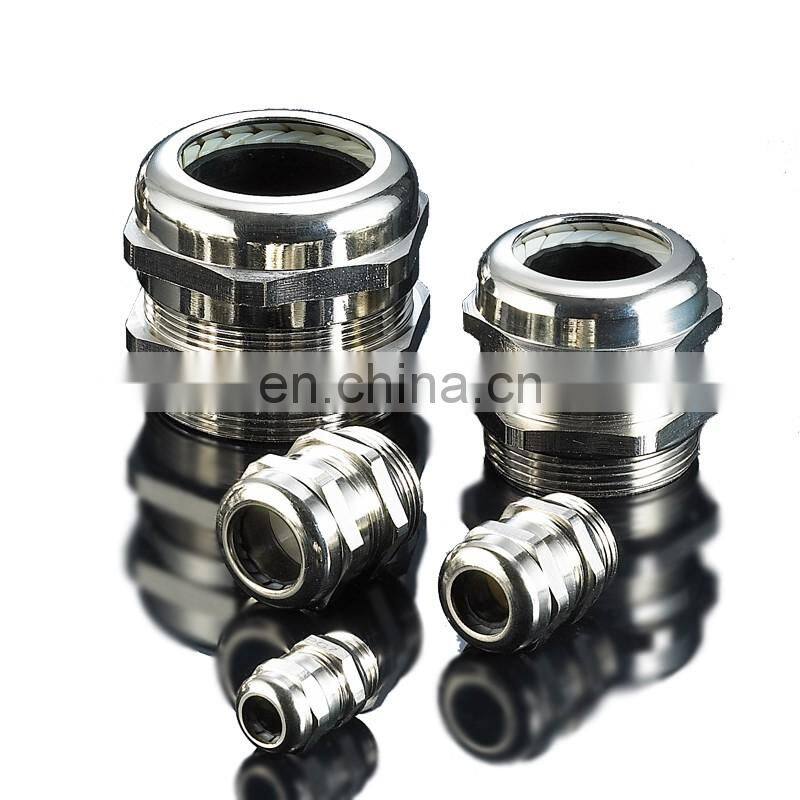

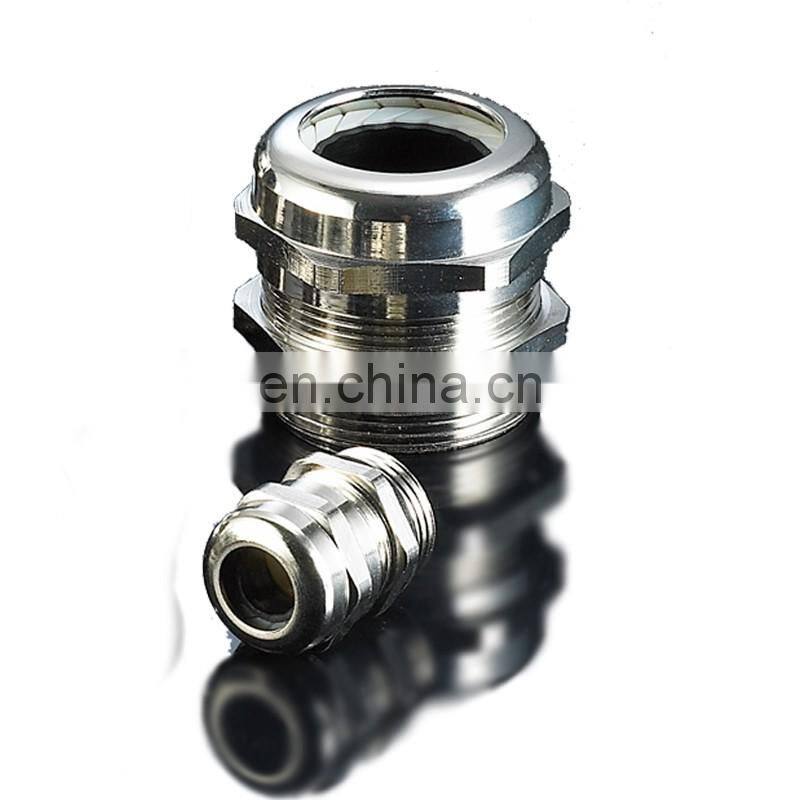

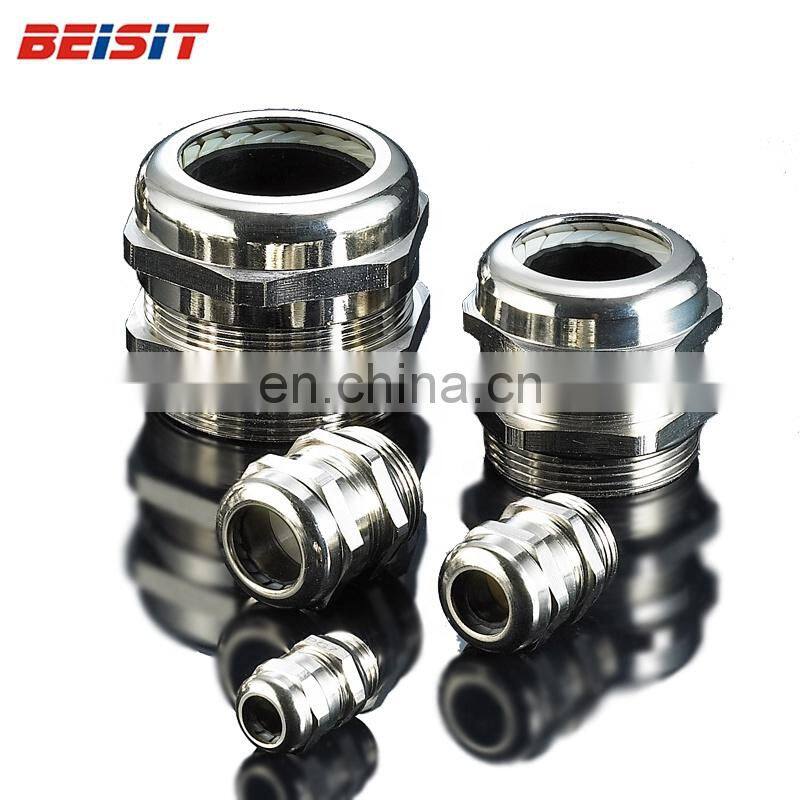

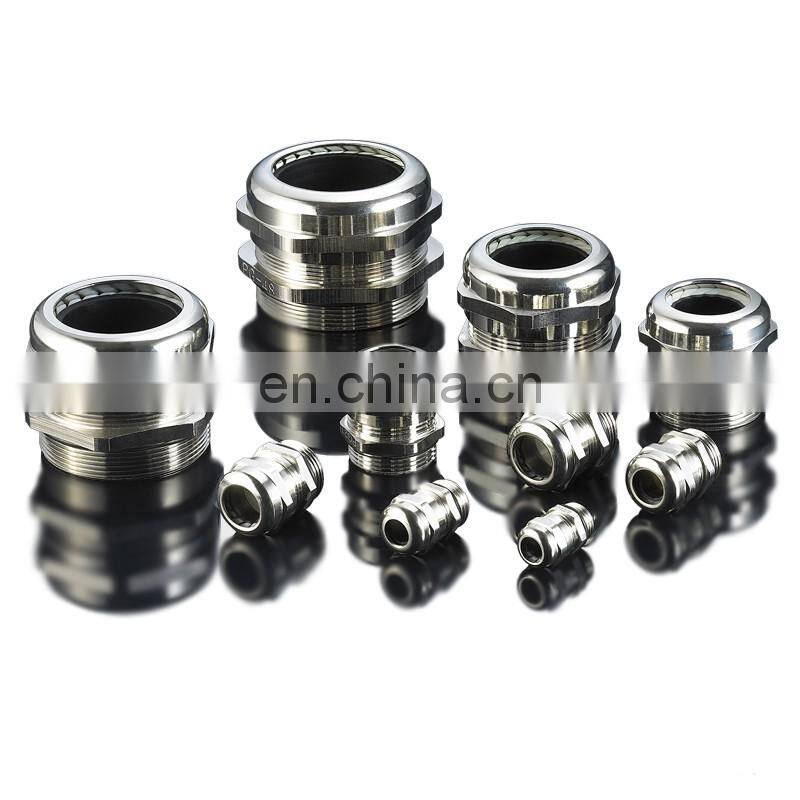

Cable Glands For Unarmoured for Rigid Flexible Conduits
Standard specification of PG, NPT, G, MG,M size, customized available, drawing or samples welcome to quote!
The cable glands are normally installed in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.
The cable gland series are designed to allow direct entry of unarmoured or armoured cables into Ex d and Ex e enclosures to provide any electrical connection with external circuits.
Cable Glands For Unarmoured for Rigid Flexible Conduitsd
Exploded View
Material: 1. Nickel Plated Brass for A,C,F parts
2. Nylon PA6 (Flammability UL 94-2) for D part
3. EPDM rubber for B parts, NBR rubber for E parts
Data Sheet
| compression brass cable gland | |||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. |
| mm | mm | mm | mm | ||
| M 12 x 1,5 | 3-6,5 | 19 | 6,5 | 14 | M 1207BR |
| M 12 x 1,5 | 2-5 | 19 | 6,5 | 14 | M 1205BR |
| M 16 x 1,5 | 4-8 | 21 | 6 | 17/19 | M 1608BR |
| M 16 x 1,5 | 2-6 | 21 | 6 | 17/19 | M 1606BR |
| M 16 x 1,5 | 5-10 | 22 | 6 | 20 | M 1610BR |
| M 20 x 1,5 | 6-12 | 23 | 6 | 22 | M 2012BR |
| M 20 x 1,5 | 5-9 | 23 | 6 | 22 | M 2009BR |
| M 20 x 1,5 | 10-14 | 24 | 6 | 24 | M 2014BR |
| M 25 x 1,5 | 13-18 | 26 | 7 | 30 | M 2518BR |
| M 25 x 1,5 | 9-16 | 26 | 7 | 30 | M 2516BR |
| M 32 x 1,5 | 18-25 | 31 | 8 | 40 | M 3225BR |
| M 32 x 1,5 | 13-20 | 31 | 8 | 40 | M 3220BR |
| M 40 x 1,5 | 22-32 | 37 | 8 | 50 | M 4032BR |
| M 40 x 1,5 | 20-26 | 37 | 8 | 50 | M 4026BR |
| M 50 x 1,5 | 32-38 | 37 | 9 | 57 | M 5038BR |
| M 50 x 1,5 | 25-31 | 37 | 9 | 57 | M 5031BR |
| M 63 x 1,5 | 37-44 | 38 | 10 | 64/68 | M 6344BR |
| M 63 x 1,5 | 29-35 | 38 | 10 | 64/68 | M 6335BR |
APPLICATION
Package
A. Common Packing: Certain PCS + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 3-5 Working days by special offer
B.By Air: 5-7 Working days at appointed airport
C.By Sea: 10-25 Working days at appointed port
|
Metal Cable Gland |
| Nylon Cable Gland | |
| Multi Hole Cable Gland | |
| EX Cable Gland | |
| EMC Cable Gland | |
| Cable Gland With Strain Relief | |
| Cable Tips | |
| Enclosure | |
| Cable Tie Wire Gun | |
|
|
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.

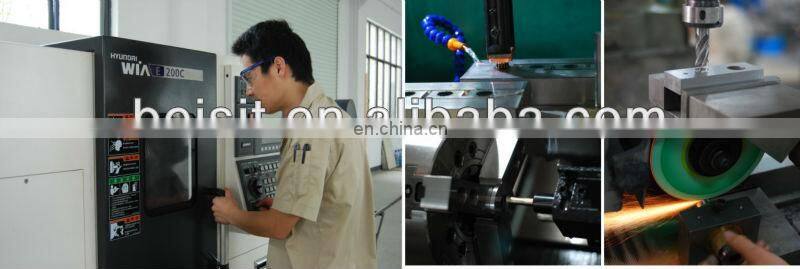

2.Factory View
3.Certificates
4.Exhibitions
5.Why Choose US
1. Compamy is Managed Strictly According to IATF16949/ISO9001.
2. Our strong technical team are established by high-end technical person that have reached 36%.
3. Strong Ability of Special Customization with a complete mold processing center.
4. Precision processing equipment are sourced from Japan, Korea and Taiwan to ensure that the products meet high precision requirement.
5. Capacity of Design and Manufacture of Precision Cutting Tools.
6. Advanced Testing Equipments. Products Tests fellow German Standard of DIN, VDE, American Standard of UL and comply with European Lastest Standard of EN and ATEX
