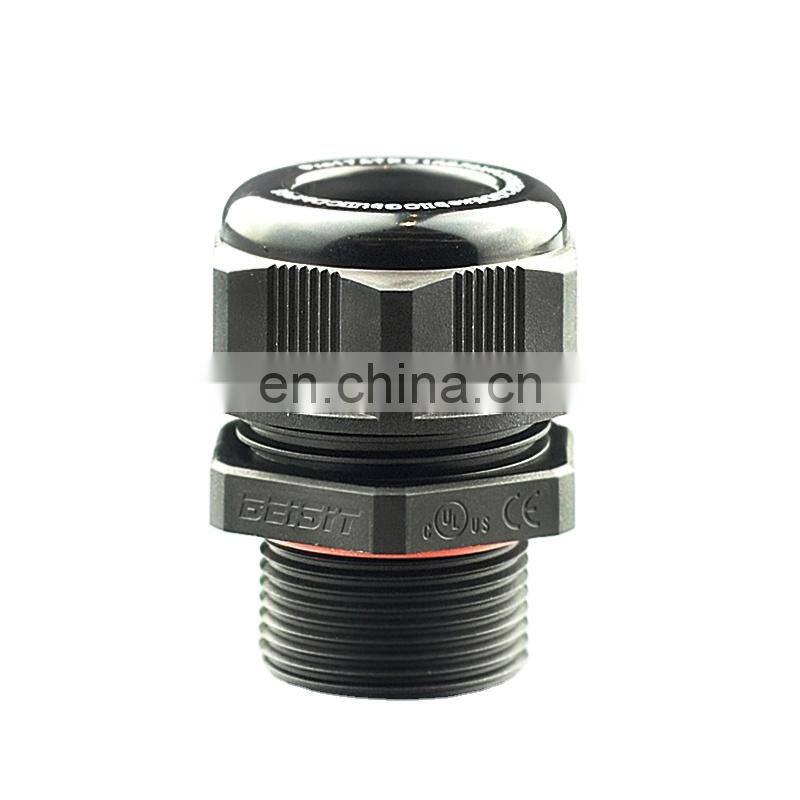

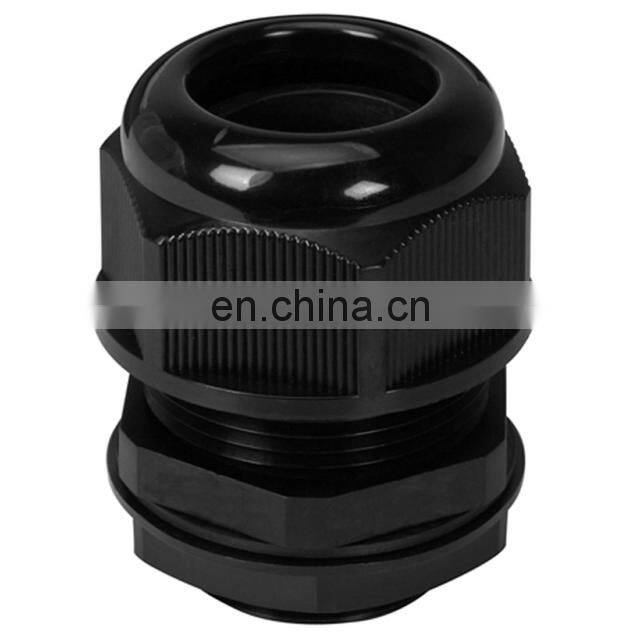

For 25mm Conduit Gland Electrical IP68 Waterproof Black
- 25mm Nylon Cable Glands
- Thread - M20
- Cable Range O.D. - 11-17mm
- IP68 Waterproof Black
- 50 Metres Submersible
- Complete with Seal & Lock Nut
- Colour - Black
ele
M 75 High Quality Enclosure Tube Plastic Types of cable gland

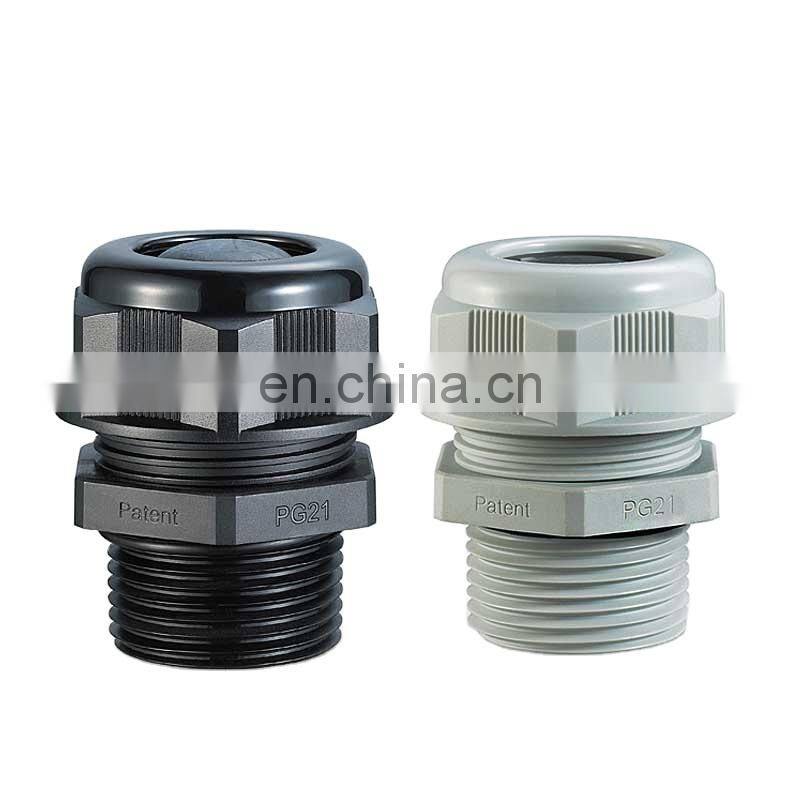

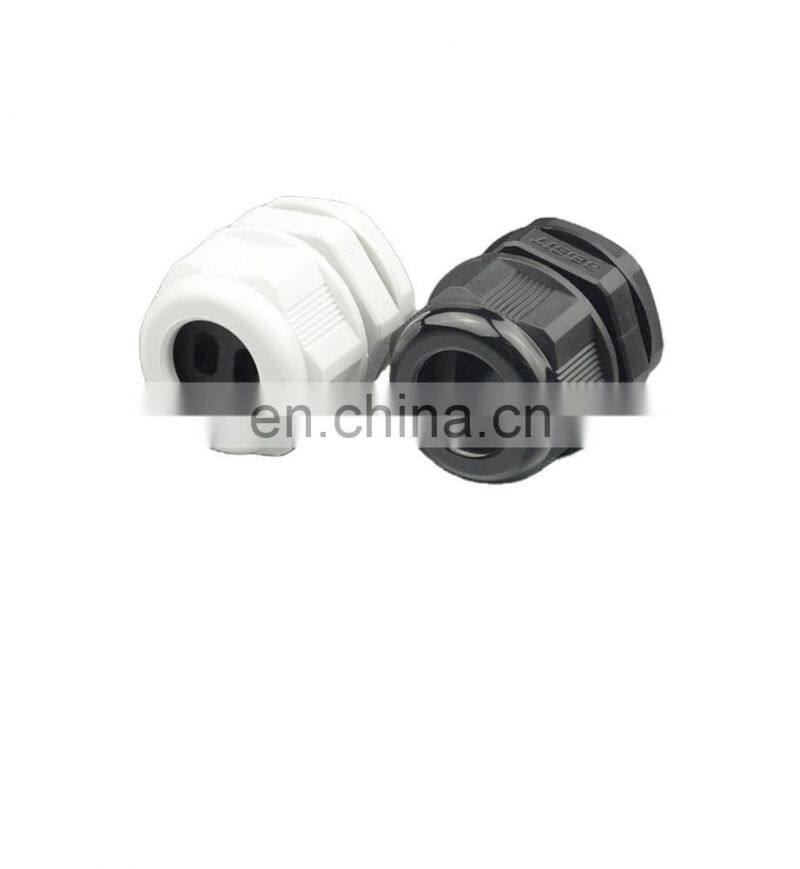

Pictures of threaded electrical connectors
Washer and Lock Nut are included in each cable gland for saving additional ordering work and storage locations.
Exploded View of threaded electrical connectors
Material: 1. Nylon PA6 (Flammability UL 94-2) for A,C,E parts
2. EPDM rubber for B parts, NBR rubber for D parts
Data Sheet of threaded electrical connectors
| M | ||||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. | Beisit No. |
| mm | mm | mm | mm | grey | black | |
| M 12 x 1,5 | 3-6,5 | 21 | 8 | 15 | M 1207 | M 1207B |
| M 12 x 1,5 | 2-5 | 21 | 8 | 15 | M 1205 | M 1205B |
| M 16 x 1,5 | 4-8 | 22 | 8 | 19 | M 1608 | M 1608B |
| M 16 x 1,5 | 2-6 | 22 | 8 | 19 | M 1606 | M 1606B |
| M 16 x 1,5 | 5-10 | 25 | 8 | 22 | M 1610 | M 1610B |
| M 20 x 1,5 | 6-12 | 27 | 9 | 24 | M 2012 | M 2012B |
| M 20 x 1,5 | 5-9 | 27 | 9 | 24 | M 2009 | M 2009B |
| M 20 x 1,5 | 10-14 | 28 | 9 | 27 | M 2014 | M 2014B |
| M 25 x 1,5 | 13-18 | 31 | 11 | 33 | M 2518 | M 2518B |
| M 25 x 1,5 | 9-16 | 31 | 11 | 33 | M 2516 | M 2516B |
| M 32 x 1,5 | 18-25 | 39 | 11 | 42 | M 3225 | M 3225B |
| M 32 x 1,5 | 13-20 | 39 | 11 | 42 | M 3220 | M 3220B |
| M 40 x 1,5 | 22-32 | 48 | 13 | 53 | M 4032 | M 4032B |
| M 40 x 1,5 | 20-26 | 48 | 13 | 53 | M 4026 | M 4026B |
| M 50 x 1,5 | 32-38 | 49 | 13 | 60 | M 5038 | M 5038B |
| M 50 x 1,5 | 25-31 | 49 | 13 | 60 | M 5031 | M 5031B |
| M 63 x 1,5 | 37-44 | 49 | 14 | 65/68 | M 6344 | M 6344B |
| M 63 x 1,5 | 29-35 | 49 | 14 | 65/68 | M 6335 | M 6335B |
| Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |
| Nylon Cable Tie | Stainless Cable Tie | Cable Tie Bundler Tie Gun |
Usage of threaded electrical connectors
Certificate of threaded electrical connectors
The only factory have VDE for cable gland in Asia
The only factory have UL for full series cable gland
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
1.Entered the filed of wiring accessories more than 12 years.
2.Fast delivery, 20 Working days / 40' feet container.
3.OEM and Special packing, like Blister, Tube Box, Header card, PDQ are all available.
4.5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC. 6-sigma Quality Management System guaranteed.
5.12 years experience, 18500mm2 BV, TUV, BSCI, ISO9001 certified workshop.
6.Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
7.Material was sourced from famous brand "Shenma" in China, also US Dupont & Japan Leona material is available.
8.Products catch UL, VDE, IP68, RoHS, REACH and CE ,GE, Mitsubishi, Auchan, B&Q rely on us continuously.
9.Main Products:
Cable Glands,Cable ties, Terminals and Terminal Blocks, Insulation Piercing Connectors ,Other Wiring Accessories
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
Services
A. Strong sales team ensures replying you in 24 hours in time.
B. Strong technical team provides technical support for you in all directions in product development anytime.
C. Art designer and graphic design team can design different and fine packing styles for customers
in different market requirements.
Mold and Mold Processing Center
5 Products Development Engineers, 3 mold designers, 49 Technicians, 5 QC.
6-sigma Quality Management System guaranteed.
Precision equipment are mainly sourced from Germany, Janpan, Taiwan, Korea.
Can customized any colors cable gland
Research and Development team can produce any Item & Precise Die Mold
according samples or design drawings
Injection Machine
Why choose us?
1.Product development and special customized ability for clients
2.The independent intellectual property rights and the international certification authority
3.Higher cost performance - product quality exceed international counterparts (TAiWAN and GERMANY)
Package
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
