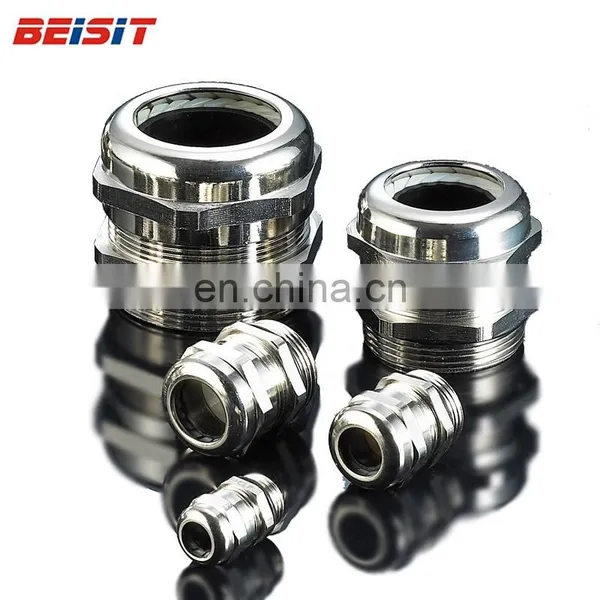

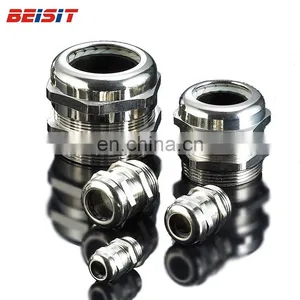

IP68 Beisit Best Waterproof High Quality M Type Nickel Plated Brass Metal Cable Gland
Exploded View
Material: 1. Nickel Plated Brass for A,C,F parts
2. Nylon PA6 (Flammability UL 94-2) for D part
3. EPDM rubber for B parts, NBR rubber for E parts
Data Sheet
| compression brass cable gland | |||||
| Model | Cable Range | H | GL | Spanner Size | Beisit No. |
| mm | mm | mm | mm | ||
| M 12 x 1,5 | 3-6,5 | 19 | 6,5 | 14 | M 1207BR |
| M 12 x 1,5 | 2-5 | 19 | 6,5 | 14 | M 1205BR |
| M 16 x 1,5 | 4-8 | 21 | 6 | 17/19 | M 1608BR |
| M 16 x 1,5 | 2-6 | 21 | 6 | 17/19 | M 1606BR |
| M 16 x 1,5 | 5-10 | 22 | 6 | 20 | M 1610BR |
| M 20 x 1,5 | 6-12 | 23 | 6 | 22 | M 2012BR |
| M 20 x 1,5 | 5-9 | 23 | 6 | 22 | M 2009BR |
| M 20 x 1,5 | 10-14 | 24 | 6 | 24 | M 2014BR |
| M 25 x 1,5 | 13-18 | 26 | 7 | 30 | M 2518BR |
| M 25 x 1,5 | 9-16 | 26 | 7 | 30 | M 2516BR |
| M 32 x 1,5 | 18-25 | 31 | 8 | 40 | M 3225BR |
| M 32 x 1,5 | 13-20 | 31 | 8 | 40 | M 3220BR |
| M 40 x 1,5 | 22-32 | 37 | 8 | 50 | M 4032BR |
| M 40 x 1,5 | 20-26 | 37 | 8 | 50 | M 4026BR |
| M 50 x 1,5 | 32-38 | 37 | 9 | 57 | M 5038BR |
| M 50 x 1,5 | 25-31 | 37 | 9 | 57 | M 5031BR |
| M 63 x 1,5 | 37-44 | 38 | 10 | 64/68 | M 6344BR |
| M 63 x 1,5 | 29-35 | 38 | 10 | 64/68 | M 6335BR |
APPLICATION
Package
A. Common Packing: Certain PCS + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 3-5 Working days by special offer
B.By Air: 5-7 Working days at appointed airport
C.By Sea: 10-25 Working days at appointed port
|
Metal Cable Gland |
| Nylon Cable Gland | |
| Multi Hole Cable Gland | |
| EX Cable Gland | |
| EMC Cable Gland | |
| Cable Gland With Strain Relief | |
| Cable Tips | |
| Enclosure | |
| Cable Tie Wire Gun | |
|
|
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.

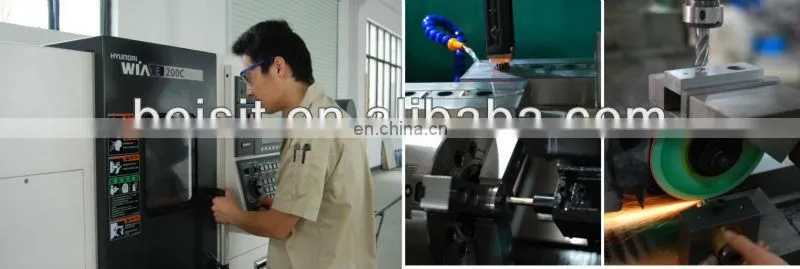

2.Factory View
