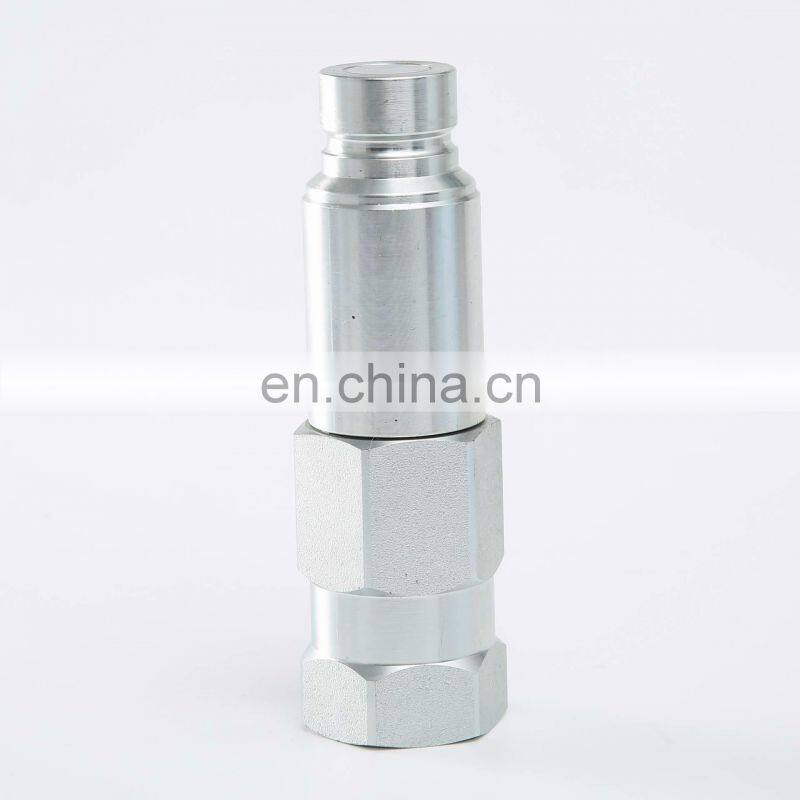

Help Center1/2 Body 3/4 SAE Male Coupling Connect Under Pressure for Skid Steer Loader Hydraulic Power Transmission
Related Products
-
5076 Psi Flat Face Hose Adapter Connectable Under Residual Pressure Quick Connect Male Coupling 7246777NegotiableMOQ: 1 -
ISO16028 1/2'' High Quality Male Flat Face Connect Under Pressure Hydraulic Quick Release Connector CouplingNegotiableMOQ: 1
-
3/8'' Male 3FHH Flat Face Hydraulic Quick Coupling Connect Under Pressure ISO16028 Poppet & Ball CouplingsNegotiableMOQ: 1
-
3/4'' Male Faster 3FFH Connect Under Pressure Flat Face Hydraulic Quick CouplingNegotiableMOQ: 1
-
Reliable 20000PSI Super High Pressure Hydraulic Quick Release Connector 125 SeriesNegotiableMOQ: 1
Professional high quality air fittings stainless steel quick coupling hydraulic couplings
Flat face couplings, connectable under residual pressure. Real 35 MPa (5076 psi) max working pressure. ISO 16028 interchange.
Zinc-Nickel plating. It is possible to couple either a 3FFH female half under pressure with a FFH male half, or a 3FFH male half under pressure with a FFH female half.
Product details
| steel | carbon steel |
| sealing element | NBR&PUR |
| working temperature | -25 to +100℃ |
| surface treatment | MATE 500(crlll)&MATE 1000(znni) |
| Product Keywords | modular valves for skid steer loader |
1. Socket: steel (Yellow zinc-chromate plating) or 304 stainless steel or 316 SS
2.Plug: Hardened steel (Zinc-chromate plating) or 304 stainless steel or 316 SS
3.Wide Variety of Seal Materials Available, we can design and change the seal according to Customer’s usage.
Features:
1.FF is designed to meet or exceed the requirements called out in ISO 16028 as wells as all HTMA specifications.
2.Heavy Duty Construction - High strength steel with white zinc or yellow dichromate plating
3.Flush-faced poppet is available for a minimum air inclusion when connection, minimum Fluid loss when disconnection as well as easy clearing.
Working temperatures:-20-125
Surface treatment:MATE 1000 (ZnNi)
Specifications:
Series Interchange: ISO 16028
Valve Type: Flat
Connection: Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Allowed Male Half up to W.P.
Product Process
ABOUT US
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the nearfuture.
PACKAGE:
1 sets in the bubble pack for inner packing,then packed in export cartons.Or with customized.
