Home > Products > Hydraulic Quick Couplings > 3/8'' male 3FHH flat face hydraulic quick coupling connect under pressure ISO16028 poppet & ball couplings

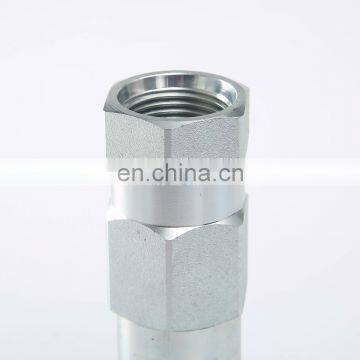

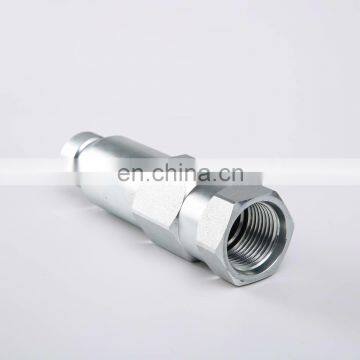

3/8'' male 3FHH flat face hydraulic quick coupling connect under pressure ISO16028 poppet & ball couplings
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- 3/4'' male Faster 3FFH connect under pressure flat face hydraulic quick coupling
- Reliable 20000PSI super high pressure hydraulic quick release connector 125 series
- 1 male nipple and 1 female coupling 125 series high pressure hydraulic quick release connector
- 5076psi 1/2'' hydraulic quick release couplings flat face quick couplings 7246777
- Flat face 90 degrees type quick connect coupler for car washing machine for hot sale
- best selling ISO 16028 certificated flush face hydraulic quick connect fitting
Product Description
Product Description
The 3FFH series are designed for connection and disconnection with female part under pressure. It is widely used in oil and gas exploration, agricultural equipment, hydraulic wrenches and tools, construction equipment, mobile equipment applications, industrial processes and so on.
Features and Materials
Materials:
1. Body: high resistance steel with zinc-chromate plating
2. Seals:NBR
3.Wide Variety of Materials Available, we can design and change the materilas according to Customers' requirement.
Features:
1.Allows to connect to a hydraulic line that is under pressure
2.Flush face valve design minimizes fluid loss and air inclusion
3.Zinc-nickel plating provides superior corrosion resistance
4.Hardened steel construction with hardened sleeves
5.Allows for minimal pressure drops
6.Easy single-handed push-connect design.
7. nterchangeable with other ISO 16028 standard couplings
8.Many industrial processes require safe solutions for hydraulic quick connect under pressure as even the slightest of leaks creates environmental hazards and threatens the safety of workers. Quick connect and disconnect processes in pressurized applications or where residual pressure exists in a line pose particular challenges to companies. So we specially produce this series for this situation.
Specifications
Body Size(Inch) | 3/8 | 1/2 | 3/4 | |||
Rate pressure(Mpa) | 35 | 35 | 35 | |||
Rated Flow(L/Min) | 35 | 65 | 115 | |||
Temperture Range(NBR) -25°C to +125°C |
Company Profile
Established in 2004. Our company is a professional manufacturer and exporter that is concerned with the design, development and production of hydraulic fittings. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Exhibition
Certifications
