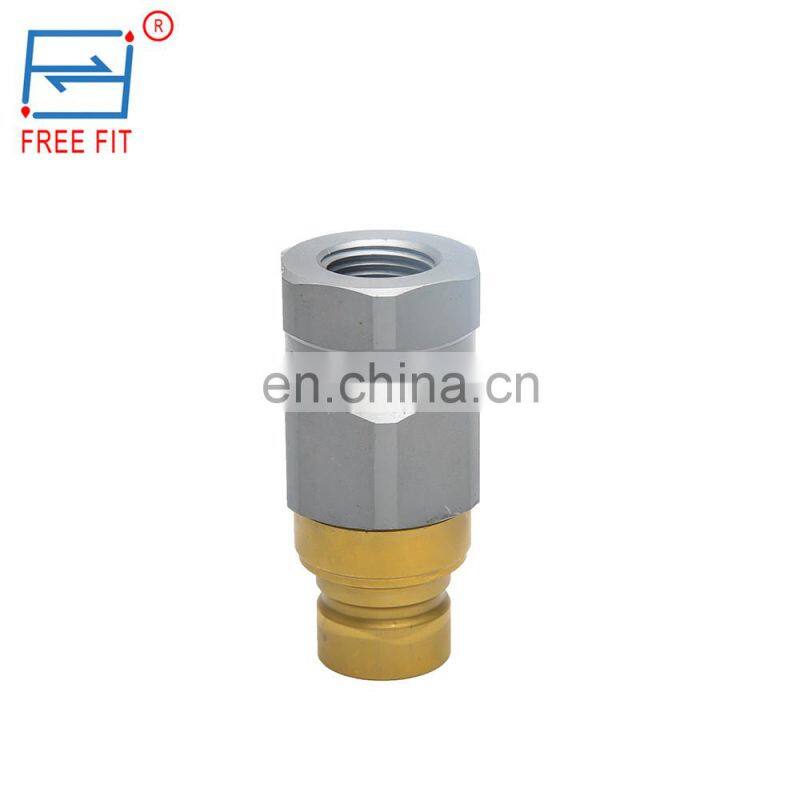

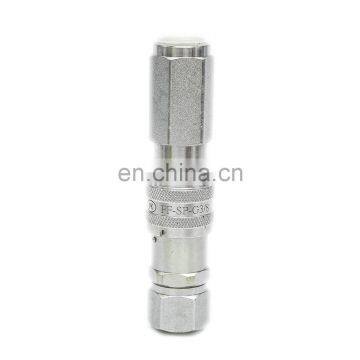

Manufacture quick release flat face coupling
Product details
| steel | carbon steel |
| Product Keywords | quick release flat face coupling |
Intherchange ISO16028 series flat face quick coupling, which completely can be interchanged with Faster, Cejn x62,Hansen Qa2900,and Parker FE/FF/FEM series.
Materials:
1. Socket: steel (Yellow zinc-chromate plating) or 304 stainless steel or 316 SS
2.Plug: Hardened steel (Zinc-chromate plating) or 304 stainless steel or 316 SS
3.Wide Variety of Seal Materials Available, we can design and change the seal according to Customer’s usage.
Features:
1.FF is designed to meet or exceed the requirements called out in ISO 16028 as wells as all HTMA specifications.
2.Heavy Duty Construction - High strength steel with white zinc or yellow dichromate plating
3.Flush-faced poppet is available for a minimum air inclusion when connection, minimum Fluid loss when disconnection as well as easy clearing.
4. A safety sleeve lock prevents accidental ,push-to connect system allows one hand operation when connect the coupling.
5. 4:1 Safety Factor.
6. Industry Interchangeability - mates with other manufacturers' ISO 16028 couplings
7.The CP option allows for connection against static pressures without spillage or damage to the coupling. Construction, portable hydraulic tools and utility equipment are a few of the many industries where the connect-under-pressure option saves valuable time & money.
|

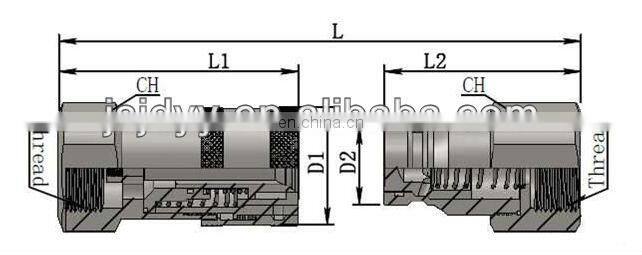

Body Size(Inch) |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
(Mpa) Rated Pressure |
35 |
35 |
35 |
35 |
30 |
25 |
25 |
25 |
20 |
|
(L/Min) Rated Flow |
12 |
15 |
30 |
50 |
90 |
125 |
185 |
370 |
750 |
|
Temperature Range (polyurethane) |
-25°C~ + 125°C |
(NBR) |
-20°C~ + 80°C |
||||||
