5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System

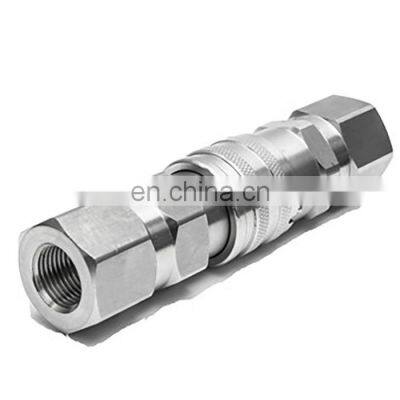

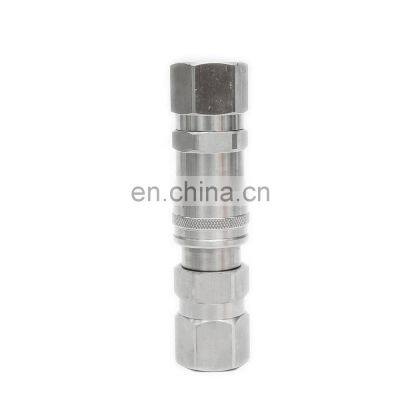

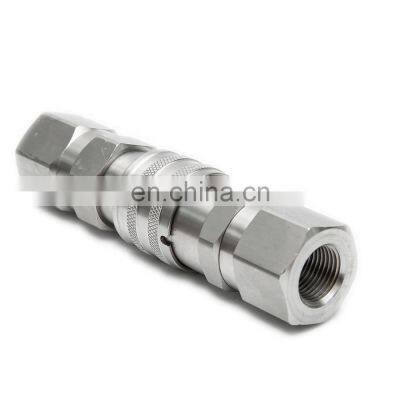

5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System thumbnail-1
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System thumbnail-2
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System thumbnail-3
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System thumbnail-4
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System thumbnail-5
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System photo-1
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System photo-2
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System photo-3
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System photo-4
5075PSI ISO16028 Series Flush Face Hydraulic Quick Connect Fitting for Skid Steer Loaders With Flat Valve Shut-off System photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Yancheng Jingdong Hydraulic Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
    FF series is the evolution of Free Fit technology and quality applied to flat face couplings. The series has a internal design combined with a high resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make FF series couplings the leader in many hydraulics applications where high performance is necessary with the elimination of fluid loss and contamination in the circuit.
Specifications
Technical datas
Body size(inch)
1/8
1/4
3/8
1/2
3/4
1
1-1/4
1-1/2
2
Rated pressure(Mpa)
35
35
35
35
30
25
25
25
20
Rated flow(L/min)
12
15
30
50
90
125
185
370
750
Temperature range(polyurethane)
-25 ℃ to +125 ℃








PART NO
ISO
A and E
L
B
C
H
D
X
Y
FF-01C-18BSP-SP
3.2
G1/8
68.5
40
36.5
11.6
20
19
17
FF-02C-14BSP-SP
6.3
G1/4
108
58.5
60
16.1
27
24
24
FF-03C-38BSP-SP
10
G3/8
134
73
77
19.7
30
27
27
FF-04C-12BSP-SP
12.5
G1/2
142
81
75
24.5
38
34
34
FF-06C-34BSP-SP
16
G3/4
169
92
91
27
42
38
38
FF-08C-1BSP-SP
19
G1
180
100
102
29.9
48
41
41
FF-10C-114BSP-SP
25
G1-1/4
186
100
106
36
55
55
55
FF-12C-112BSP-SP
32
G1-1/2
213
118
122.5
57.05
80
70
70
FF-16C-2BSP-SP
48
G2
251
149
139.5
72.9
100
80
80
Drawings
Accessories
Application
Why Choose Us
Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
