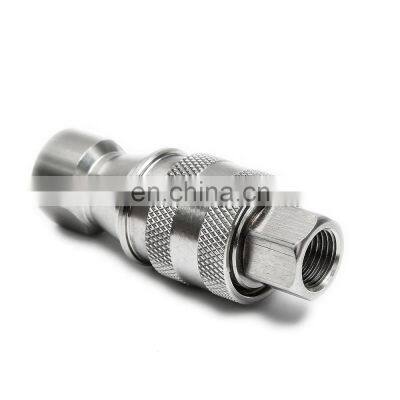

Close type hydraulic quick release coupling double self-sealing stainless steel high pressure quick connector

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

KZF Quick Coupler are suitable for a wide range of hydraulic applications. This kind of double cut-off joint can be applied to the following situations: the fluid transmission pipeline needs to be connected and disconnected due to equipment operation or maintenance, and it is expected that there will be no fluid loss. KZF Quick Coupler is mainly used for hydraulic fluid pipeline, but it is also used for chemical water, steam and some gas pipelines.

Specifications

Body Material	Stainless Steel, Carbon Steel, Brass
Sealing	FKM, NBR
Working Pressure	34.5 Mpa(5000psi)
Temperature Range	-20℃ - 180℃
Thread Standard	BSPP/BSPT/NPT
Compatability	Paker/Faster/Staubli/Nitto/Sutcchi

Features

1. When the quick coupler is disconnected, the valve core will close automatically to prevent leakage. 2. After the quick coupler is connected, the valve will open automatically and keep the fluid unblocked within the rated working range.

3. The reliable ball lock mechanism combines the matched two halves together.

4. The female socket and male plug are made of solid bar materials.

5. The quick coupler complies with iso7241-1b standard.

6. It is also exchanged with the following products: Parker 60 series, Faster HNV series, Aeroquip fd45 series and Hansen HK series.

Application

Why Choose Us

Related Products

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
