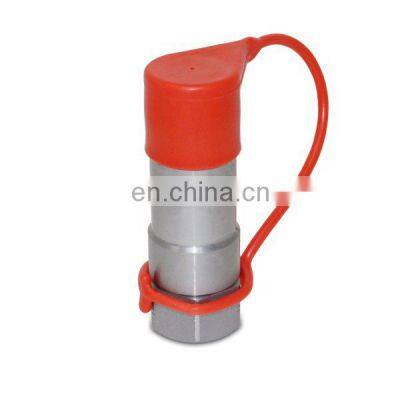

Free Fit 3FFH, male Flat face couplings, ISO 16028, connectable under residual pressure. Real 35 MPa (5076 psi) max working pressure. Zinc-Nickel plating. Mainly apply to compact wheel loader, mould and die industry, Roadheader machine, mini dumper.

Specifications

1. Allows to connect to a hydraulic line that is under pressure 2. Flush face valve design minimizes fluid loss and air inclusion

3. Zinc-nickel plating provides superior corrosion resistance

4. Hardened steel construction with hardened sleeves

5. Allows for minimal pressure drops

6. Easy single-handed push-connect design

7. Nipple seal resists blow-outs

8. Interchangeable with other ISO 16028 standard couplings

1. 5,076 PSI rating

2. 23.78 GPM Max Flow Rate 3. 12 GPM Nominal Flow Rate

4. Buna-N Seals with Teflon backup ring can operate up to 250° F

5. Male Face Diameter: 0.94” (24.5mm)

6. Male Length: 3.75” (95mm)

7. Hex: 1.34” (34mm)

SUMMIT FFP12M-08S/Parker FEC-502-8FO/Faster 3FFH08 12SAE M/Holmbury HCP12-M-08S/Snap Tite CP74N8-8EF/Stucchi M APM13 1/2 SAE/DNP FFK-08-08N-SAE

Application

Why Choose Us

Recommend Products

Company Profile

Factory

Workshop

Manufacturing equipment

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

contaction

Yancheng Jingdong Hydraulic Machine Co., Ltd.

*Email
Please enter Your valid email address.
*To

Yancheng Jingdong Hydraulic Machine Co., Ltd.
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Dust cap	Hydraulic Auto Repair Tools	Hydraulic Hose	Hydraulic pressure test system
Hydraulic Quick Couplings	Hydraulic valve	Multi-coupling Series	Pipe couplings
Pneumatic Quick Couplings	Top sale products	Ungrouped

Body Size(Inch）

Rate pressure(Mpa)

Rated Flow(L/Min)

Temperture Range(NBR) -25°C to +125°C
