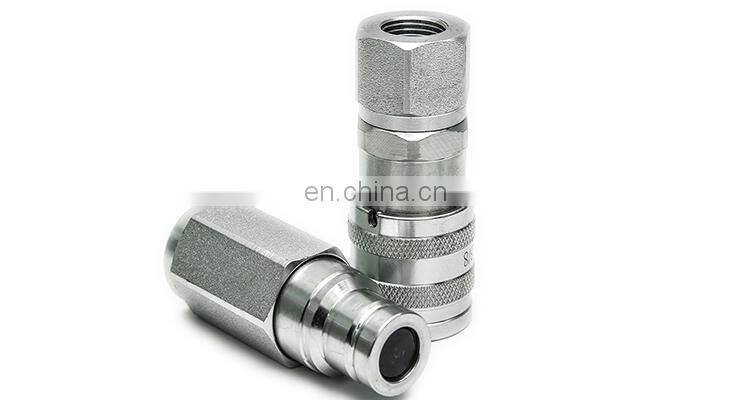

Flat Face Coupling Suitable for Construction Equipment 7246777 Replacement Coupler Connect Under Pressure

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

FF series is the evolution of Free Fit technology and quality applied to flat face couplings. The series has a internal design combined with a high resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make FF series couplings the leader in many hydraulics applications where high performance is necessary with the elimination of fluid loss and contamination in the circuit.

Specifications

Technical datas
Body size(inch)	1/8	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Rated pressure(Mpa)	35	35	35	35	30	25	25	25	20
Rated flow(L/min)	12	15	30	50	90	125	185	370	750
Temperature range(polyurethane)	-25 ℃ to +125 ℃

PART NO	ISO	A and E	L	B	C	H	D	X	Y
FF-01C-18BSP-SP	3.2	G1/8	68.5	40	36.5	11.6	20	19	17
FF-02C-14BSP-SP	6.3	G1/4	108	58.5	60	16.1	27	24	24
FF-03C-38BSP-SP	10	G3/8	134	73	77	19.7	30	27	27
FF-04C-12BSP-SP	12.5	G1/2	142	81	75	24.5	38	34	34
FF-06C-34BSP-SP	16	G3/4	169	92	91	27	42	38	38
FF-08C-1BSP-SP	19	G1	180	100	102	29.9	48	41	41
FF-10C-114BSP-SP	25	G1-1/4	186	100	106	36	55	55	55
FF-12C-112BSP-SP	32	G1-1/2	213	118	122.5	57.05	80	70	70
FF-16C-2BSP-SP	48	G2	251	149	139.5	72.9	100	80	80

Accessories

Application

Why Choose Us

Related Products

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
