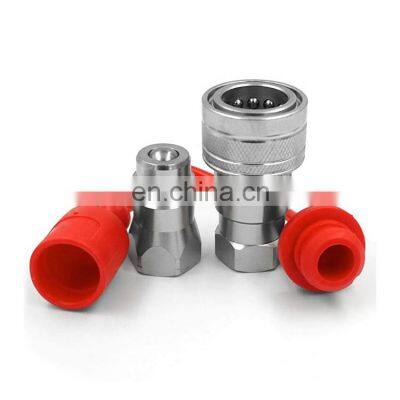

AG quick connect hydraulic coupler ISO5675 series agricultural Ball type hydraulic quick coupling

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.

Specifications

Body size (inch)	1/4	3/8	1/2	3/4	1
Rated pressure(Mpa)	35	35	30	30	25
Rated flow (L/min)	15	30	50	80	140
Temperature range (NBR)	-25℃ to +125℃

Features:

1. Poppet valves available to prevent uncoupled leakage

2. Ball valves available for rugged dependability in heavy-duty hydraulic applications within rated working pressure

3. Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs

4. The valve provides a metal-to-metal seal between the ball and coined seat

5. Critical parts are hardened for durability

6. Dependable ball-locking mechanism holds the mating halves together

7. Socket and plug are precision machined from solid bar stock

8. NS Series conforms to the standard of ISO5675

Application

Why Choose Us

Recommend Products

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
