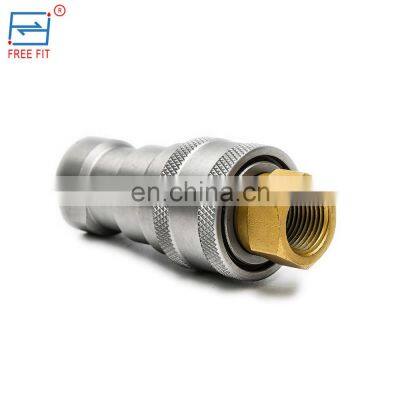

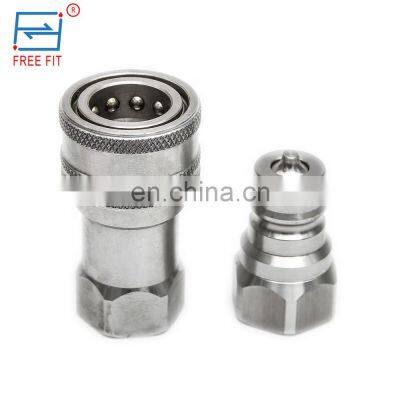

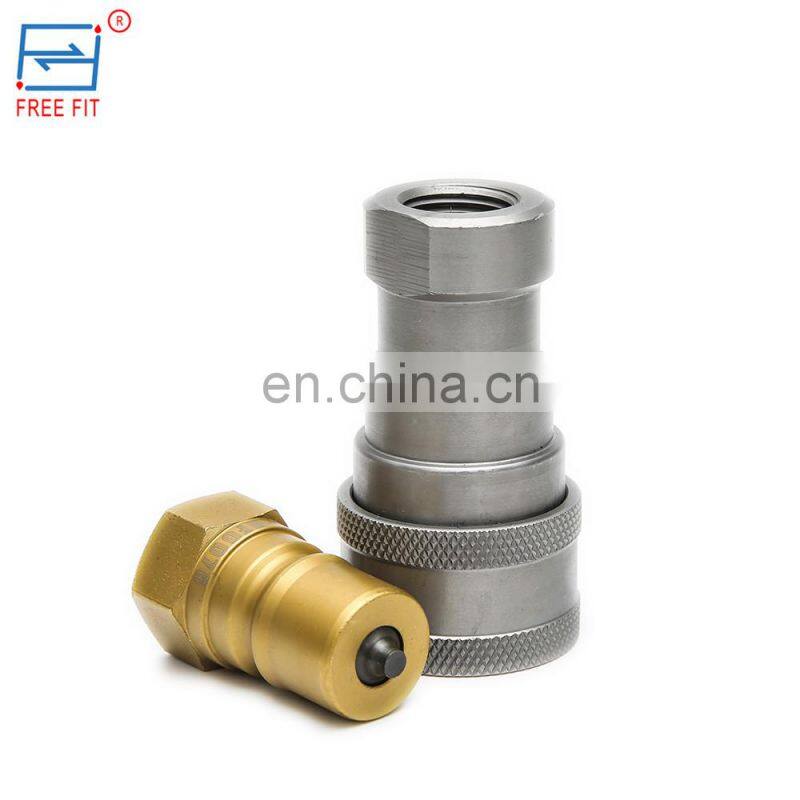

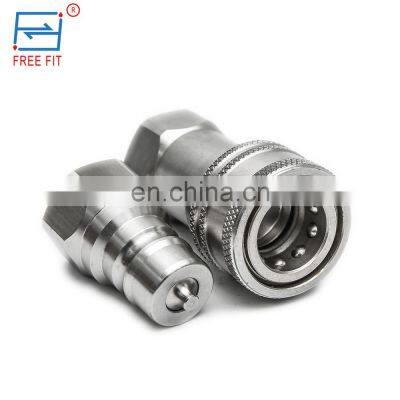

Made in China Female and Male 1/2 Inch ISO 7241-B Hydraulic Quick Coupling for Agricultural Machinery

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Standard couplings for industrial applications. Complete range of sizes from 1/8" to 2" (with BSP, NPT and SAE female threads) available. ISO 7241 part B interchange

Features and Materials

Materials:

1. Coupling:steel(zinc chromate plating)

2.Nipple:high grade carbon steel with heat treated wear parts

3.Wide Variety of Materials Available, we can design and change the coupling according to Customers' requestment.

Features:

1. Interchangeability according to ISO7241-1 partB ,Parker 60,Nitto Bx-75 Faster HNV

2. Can be used for any type of industrial applications because of the broad range of materials seals and end configurations.

3. Body seal steel and stainless steel versions feature PTFE back-up ring which prevents seal washout at high flow rates brass couplers have a double ensure and vacuum applications.

4. The durable-ball-locking mechanism ensures a reliable connection every time.

5. Captive valve seal assures poppet sealing the valve seal is positively captured by the metal poppet to minimize seal washout or
damage from high velocity fluid.

6.Dust caps available, female pipe and BSPP or NPT tread are available upon request
Connectable with male and female under pressure-one step connection.

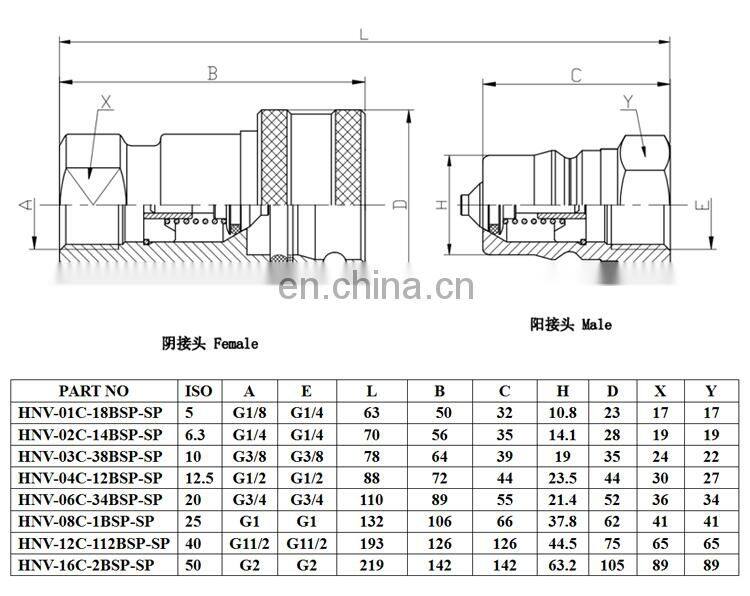

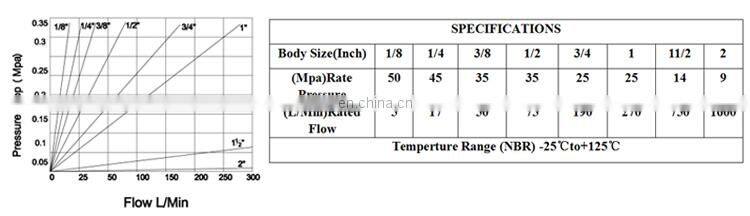

Specifications

Company Profile

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access. We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates. Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
