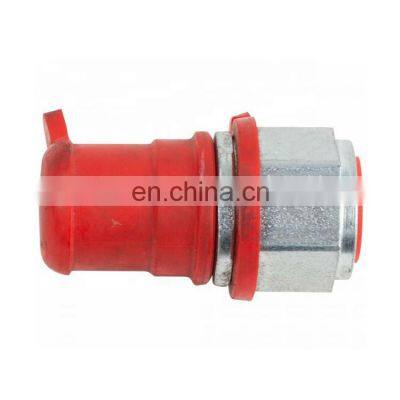

Straight Threaded Adaptor Ultra High Pressure 1000bar CEJN 10-115-6452 Nipples UHP Couplings
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2013
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Ultra High Pressure CEJN 10-115-1201 Hydraulic Quick Connect CouplingsNegotiableMOQ: 1 -
1000bar CEJN 10-115-6452 Nipples UHP Couplings Cejn 115-2402 Quick Disconnect Coupling 11600PSINegotiableMOQ: 1
-
Ultra High Pressure CEJN 10-115-1201 100Mpa Hydraulic Hose Female Pipe Thread CouplerNegotiableMOQ: 1
-
Threaded-to-Tube Connection Style CEJN 115 Series Straight Threaded AdaptorNegotiableMOQ: 1
-
High Pressure Hydraulic Fitting Nipple High Pressure Hydraulic CEJN Series 115NegotiableMOQ: 1
Product Description
Free Fit Series 115 offers a Flat-Face design and auto-lock function. The couplings are light in weight with an aluminum back part, making the series ideal for applications in which lightweight components are a requirement.
Specifications
Nominal Flow Diameter |
2.5mm |
Flow Capacity |
6.0L/min |
Max. Working Pressure |
1000 bar |
Min. Burst Pressure |
2600 bar |
Temperature Range |
-30°C to +100°C |
Features
Quick-action safety lock eliminates any risk of accidental disconnection
Non-drip on connection and disconnection
Dust caps included as standard
Unique sealing design
Nipple with hose rupture valve available

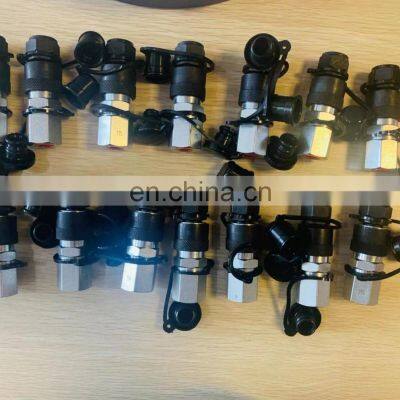

Product Show
Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
