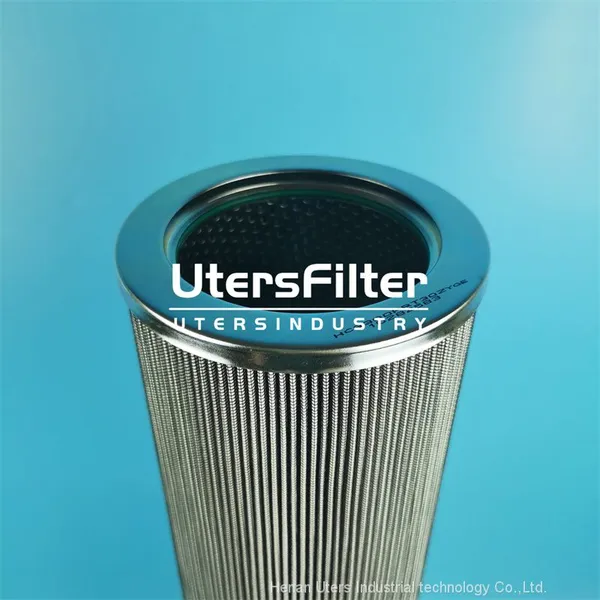

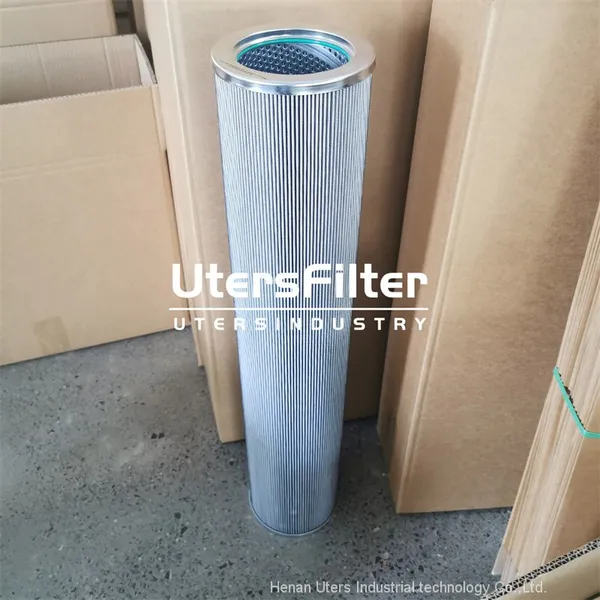

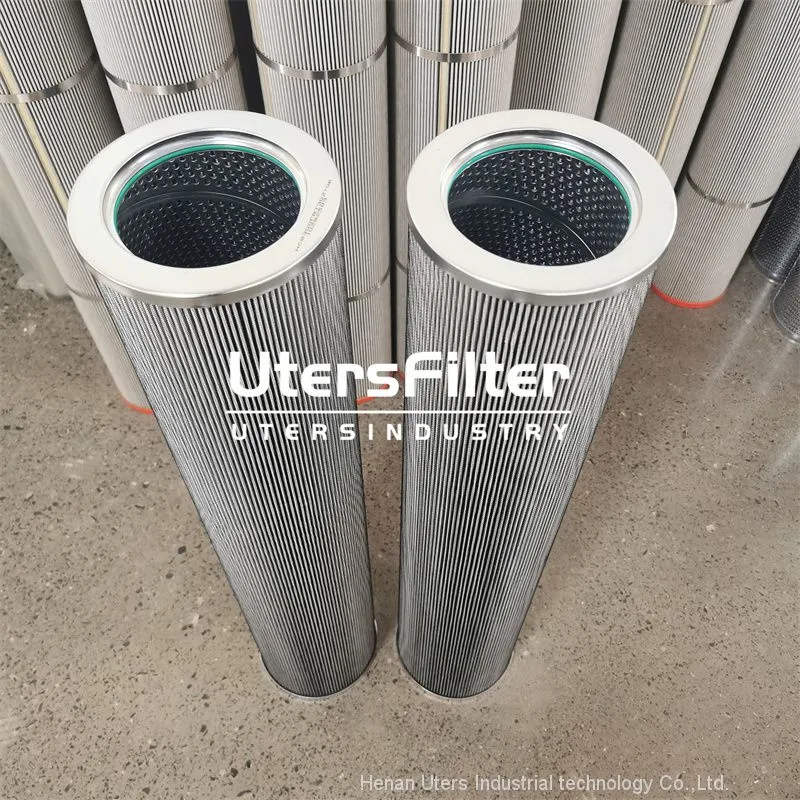

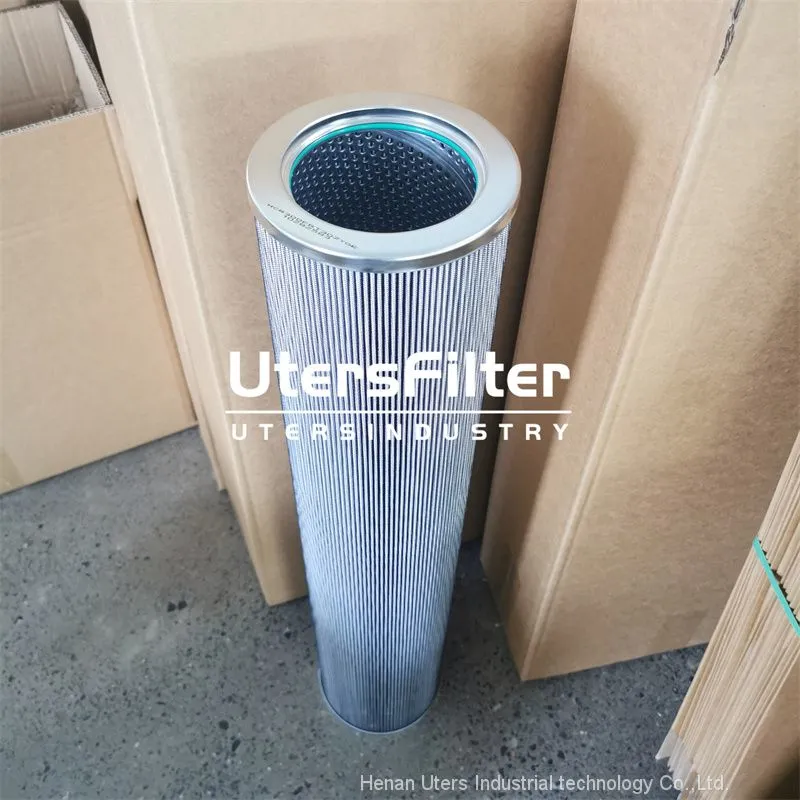

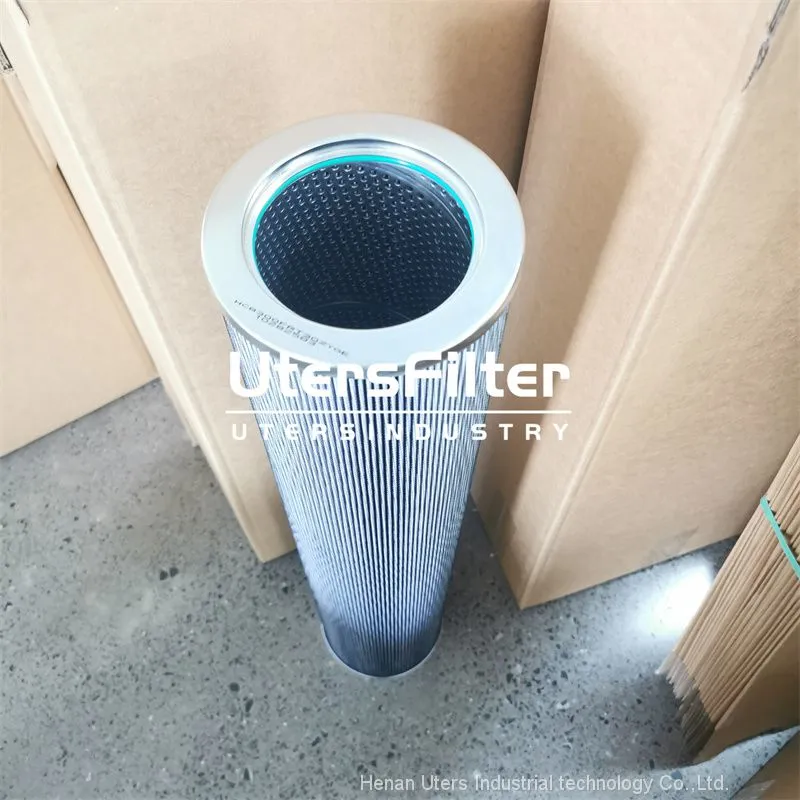

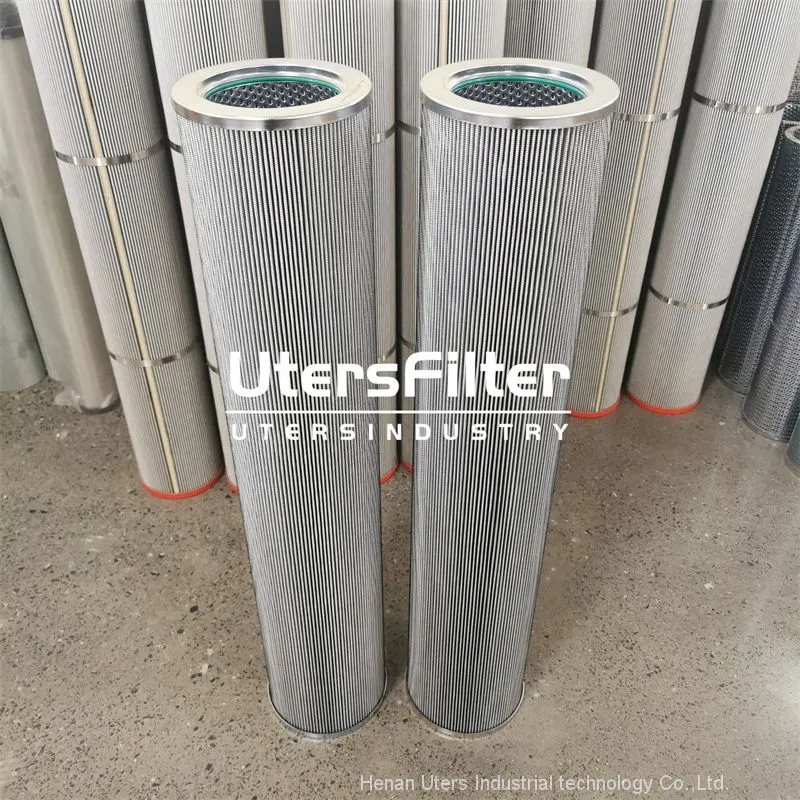

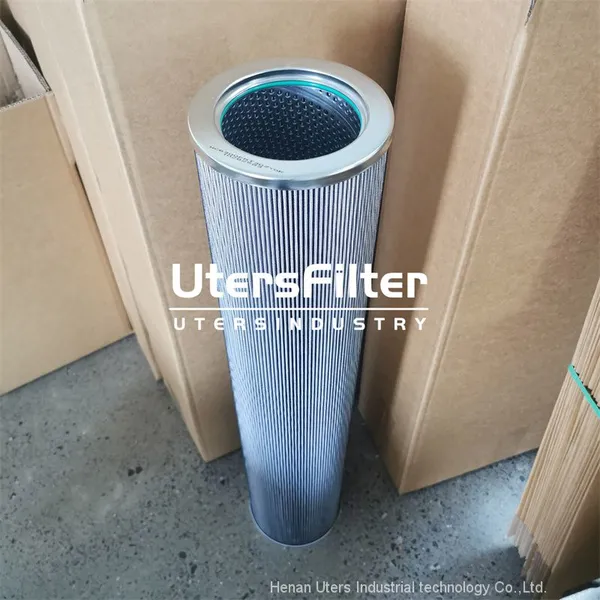

Help CenterHC8300FRT30ZYGE UTERS Replacement of PALL Large Flux Power Plant Hydraulic Folding Filter Element
Related Products
-
HC9601FCS13Z UTERS Replacement of PALL High Pressure Hydraulic Folding Filter ElementUS$ 1 - 100MOQ: 1 Piece -
R928022830 2.0600 PWR10-A00-0-M UTERS Replaces Rxroth Hydraulic Filter ElementUS$ 1 - 100MOQ: 1 Piece
-
HF35014 UTERS Replaces Fleetguard Hydraulic Filter ElementUS$ 1 - 100MOQ: 1 Piece
-
FC1275.Q010.XS UTERS Replace PARKER Hydraulic Oil Filter ElementUS$ 1 - 100MOQ: 1 Piece
-
52252061 UTERS Replaces Atlas Copco Air Compressor Air Filter ElementUS$ 1 - 100MOQ: 1 Piece
Filter Element Application:
The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.
The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.
Filter Element Features:
1. Filtration accuracy: 1-200um filtration ratio: X≧99.9
2. Working pressure: (MAX) 21Mpa
3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water
4. Working temperature: -30℃~+110℃
5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Quality Standard:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Package Pictures
