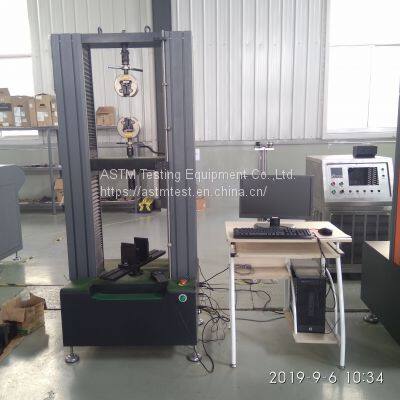

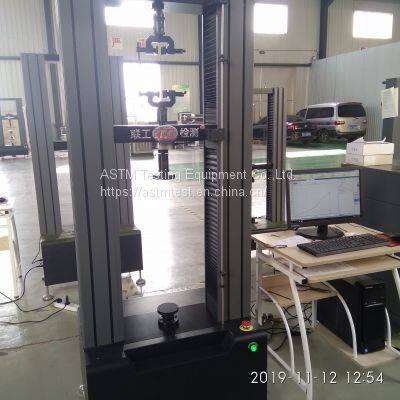

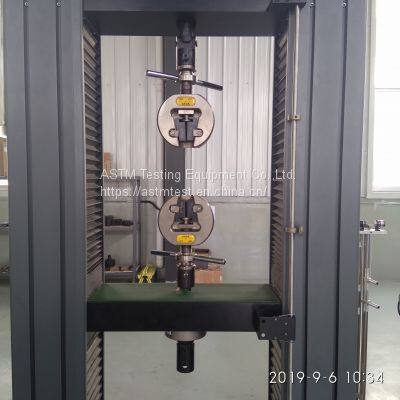

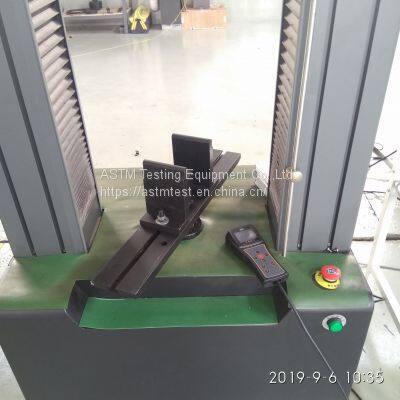

CMT-20 computer control electronic fabric tensile strength tester manufacturers
- Qingdao
- T/T
- 30 days
You May Like
-
CMT-20 bonding quality testing equipment for laminboard/utm testing machine
-
Bituminous Waterproof Sheet Material Tensile Tester Rubber Tensile Elongation Strength Testing Equipment CMT-20
-
CMT-20 Tensile testing machine for aluminum foil/aluminum foil peel strength testing machine
-
CMT-20 NEW 20kn Belt Tensile Strength Testing Machine with Extensometer
-
CMT-20 Fiberglass Roof Sheet Tensile Strength Testing Machine 20KN
-
CMT-20 Tearing & tensile strength machine / tensile strength meter from China / tensile testing instrument
Product Details
Brand Name | ASTM | Place of Origin | China | |
Model Number | CMT-20 | Power | Electronic | |
Usage | Tensile Testing Machine |
Product Description
Application of equipment
This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material).
It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.
CMT Computer control tensile testing Series
Model | CMT-01L. 02L. 05L. 1L. 2L. 5L | CMT-10. 20. 30. 50 | CMT-100 | CMT-200. 300 |
Measurement parameters | ||||
Max.Test force (kN) | 0.1 0.2 0.5 1 2 5 | 10. 20. 30. 50 | 100 | 200. 300 |
Accuracy class | 0.5 Class | |||
Measuring range of test force | 0.2%~100%FS (full scale) | |||
Indicating error of test force | within ±0.5% of indicating value | |||
Resolution of test force | ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process | |||
Deformation measuring range | 0.2%~100%FS | |||
Deformation indicating error | within ±0.5% of indicating value | |||
Resolution of deformation | 1/200000 of maximum deformation, up to 1/300000 | |||
Large deformation measurement range | 10-800mm | |||
Large deformation indicating error | within ±1% of indicating value | |||
Large deformation Resolution | 0.008mm | |||
Displacement indicating error | within ±0.5% of indicating value | |||
Resolution of displacement | 0.025μm | |||
Control parameters | ||||
Tuning range of force control rate | 0.005~5%FS/s | |||
Control accuracy of force control rate | When rate is less than 0.05%FS/s, within ±2% of setting value | |||
When rate is no less than 0.05%FS/s, within ±0.5% of setting value | ||||
Tuning range of resolution rate | 0.2~100%FS | |||
Control accuracy of resolution rate | When rate is less than 0.05%FS/s, within ±2% of setting value | |||
When rate is no less than 0.05%FS/s, within ±0.5% of setting value | ||||
Tuning range of replacement rate | 0.001~500mm/min | |||
Control accuracy of movement rate | When rate is less than 0.5mm/min, within ±1% of setting value | |||
When rate is no less than 0.5mm/min, within ±0.2% of setting value | ||||
Constant force,constant strain(deformation),constant displacement control range | 0.2~100%FS | |||
Other parameters | ||||
Effective tensile stroke | 800mm | 700mm | 700mm | 600mm |
Effective compression stroke | 800mm | 700mm | 700mm | 600mm |
Effective width space | / | 400mm | 550mm | |
Power | 220V,50Hz 0.5kW~0.75kW | 220V,50Hz 0.75kW~1kW | 380V,50Hz 2kW~5kW | |
Work environment | Room temperature ~ +35°C Relative humidity less than 80% | |||
Host size (mm) | 650*330*1730 | 760*460*1900 | 1050*750*2100 | 1050*900*2400 |
Weight | 150kg | 350kg | 1000kg | 1500kg |
Remark | 1.Equipped fixture can be based on users needs or customer made 2.Alternative transducer is available to extend the measuring range 3.The tensile space can be heighten on users requirement |
