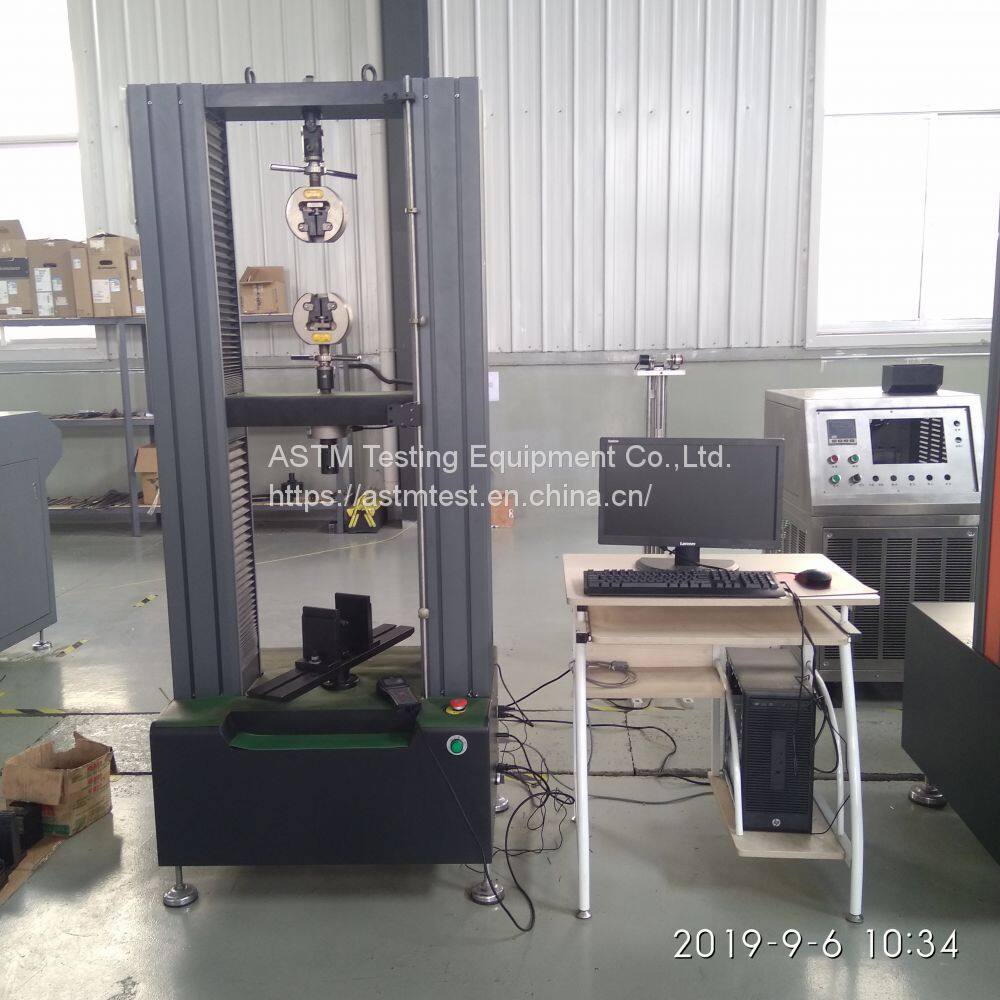

Fiberglass Roof Sheet Tensile Tester 20KN CMT-20 Dogbone Shaped Tensile Specimen Tensile Strength Tester Machine

Name: Fiberglass Roof Sheet Tensile Tester 20KN CMT-20 Dogbone Shaped Tensile Specimen Tensile Strength Tester Machine
Brand: ASTM
Availability: InStock

FOB Price

US$ 7000 - 15000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ASTM	Place of Origin	China
Model Number	CMT-20	Power	Electronic
Usage	Tensile Testing Machine

Product Description

Application of equipment

This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material).

It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.

CMT Computer control tensile testing Series

Model	CMT-01L. 02L. 05L. 1L. 2L. 5L	CMT-10. 20. 30. 50	CMT-100	CMT-200. 300
Measurement parameters
Max.Test force (kN)	0.1 0.2 0.5 1 2 5	10. 20. 30. 50	100	200. 300
Accuracy class	0.5 Class
Measuring range of test force	0.2%~100%FS (full scale)
Indicating error of test force	within ±0.5% of indicating value
Resolution of test force	±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process
Deformation measuring range	0.2%~100%FS
Deformation indicating error	within ±0.5% of indicating value
Resolution of deformation	1/200000 of maximum deformation, up to 1/300000
Large deformation measurement range	10-800mm
Large deformation indicating error	within ±1% of indicating value
Large deformation Resolution	0.008mm
Displacement indicating error	within ±0.5% of indicating value
Resolution of displacement	0.025μm
Control parameters
Tuning range of force control rate	0.005~5%FS/s
Control accuracy of force control rate	When rate is less than 0.05%FS/s, within ±2% of setting value
	When rate is no less than 0.05%FS/s, within ±0.5% of setting value
Tuning range of resolution rate	0.2~100%FS
Control accuracy of resolution rate	When rate is less than 0.05%FS/s, within ±2% of setting value
	When rate is no less than 0.05%FS/s, within ±0.5% of setting value
Tuning range of replacement rate	0.001~500mm/min
Control accuracy of movement rate	When rate is less than 0.5mm/min, within ±1% of setting value
	When rate is no less than 0.5mm/min, within ±0.2% of setting value
Constant force,constant strain(deformation),constant displacement control range	0.2~100%FS
Other parameters
Effective tensile stroke	800mm	700mm	700mm	600mm
Effective compression stroke	800mm	700mm	700mm	600mm
Effective width space	/	400mm	550mm
Power	220V,50Hz 0.5kW~0.75kW	220V,50Hz 0.75kW~1kW	380V,50Hz 2kW~5kW
Work environment	Room temperature ~ +35°C Relative humidity less than 80%
Host size (mm)	6503301730	7604601900	10507502100	10509002400
Weight	150kg	350kg	1000kg	1500kg
Remark	1.Equipped fixture can be based on users needs or customer made 2.Alternative transducer is available to extend the measuring range 3.The tensile space can be heighten on users requirement
