Product Description

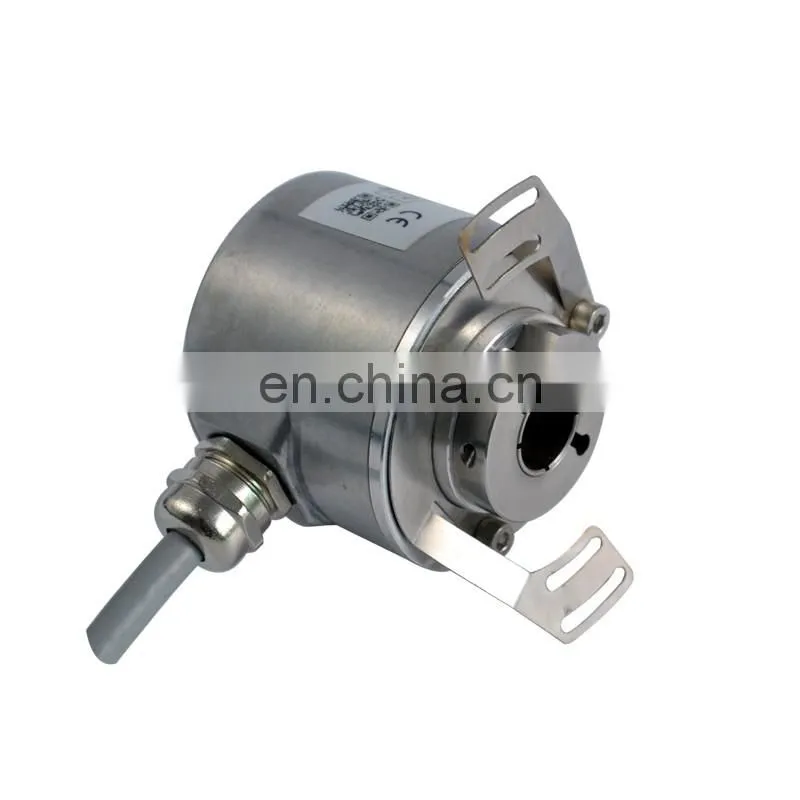

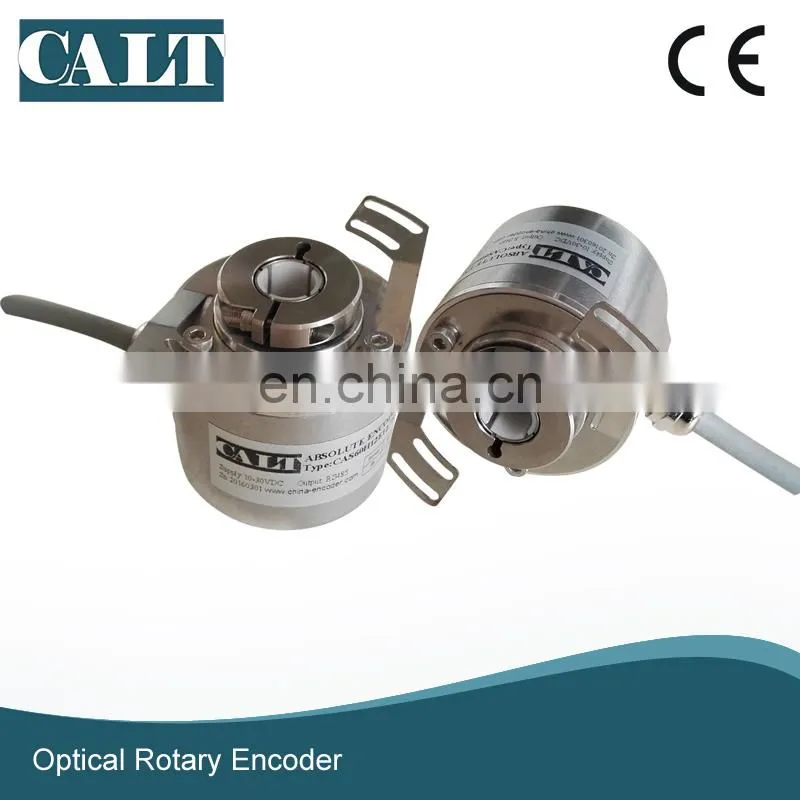

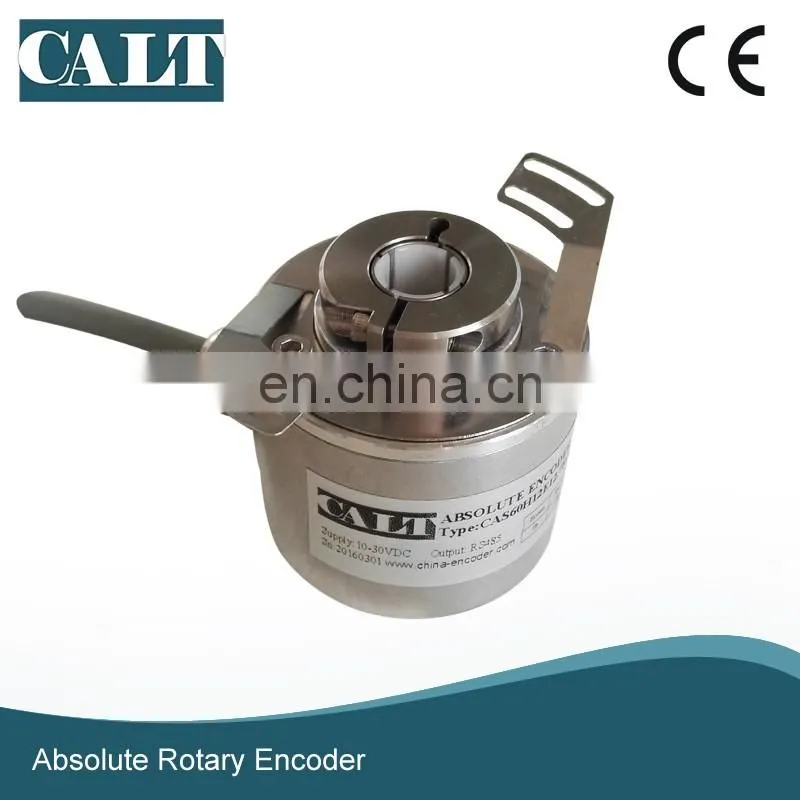

CALT 60mm Modbus absolute encoder 10 hollow shaft


 Absolute Encoder CAS60---RMB User Manual


 Internal absolute code disk. Digital valued. Signal is resistant from temperature and mechanical movement. No zero drift.

 Modbus RTU output.

 Each lap 12 bits high resolution encoder, working range.

 Direction setting External setting line can preset the position. Convenient installation and no need positioning.

 Wide working voltage ,low power consumption.

 Clamping flange or synchronous flange.

★Please totally read the following instruction first for proper use of encoder.

Parameter

Operating Voltage
10-30Vdc polarity protection
Current Consumption
< 40Ma (24V power supply) no load
Output Signal
Modbus RTU output
Conform to the standard of GB/Z19582
Settable for length/ angle /velocity measurement
Linearity Resolution
1/4096
Repeatability Precision
Signal adjustment
Repeatability ±2BIT( Actual precision related with installation and shaft concentricity.) Resolution or direction settable, external setting line preset functiion.
Operating Temperature
-25-80℃ Programming temperature range:0℃~+70℃
Storage Temperature
Protection class
Vibration & shock
-40-80℃
IP67 for housing IP65 for shaft
20g,10~2000Hz;100g,6ms

Selection guide

single turn type



Dimensions: (in mm)
L=49mm
