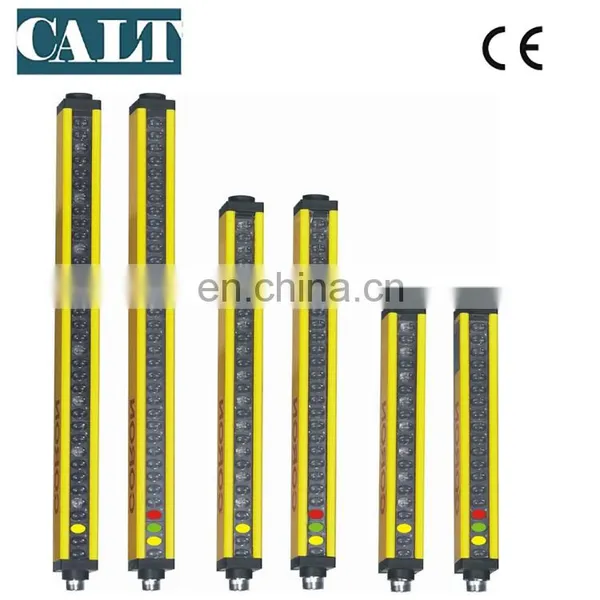

Cheap Elevator Light Curtain 24v Safety Light Curtain Sensor on Promotion

Cheap Elevator Light Curtain 24v Safety Light Curtain Sensor on Promotion thumbnail-1
Cheap Elevator Light Curtain 24v Safety Light Curtain Sensor on Promotion thumbnail-2
Cheap Elevator Light Curtain 24v Safety Light Curtain Sensor on Promotion photo-1
Cheap Elevator Light Curtain 24v Safety Light Curtain Sensor on Promotion photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description


  Cheap elevator light curtain 24v safety light curtain sensor on promotion


Feature:

Ultrathin type, only 15mm thickness, widely used in small space, close mounting or secret occasions, it can be applied to channel detection and objects through signal measurement.

Long detection distance and easy to align.

High resolution with 3.5mm detection distance, easy to align

Used in high precision detection and measurement.

High precision MYDZ series measuring light curtain for high-precision detection and measurement. Typically applied on online testing , channel detection , precision correction, holes detection and similar detection and measurement. Each set of light curtain including a pair of high resolution light curtain and two cables.


Working Principle:

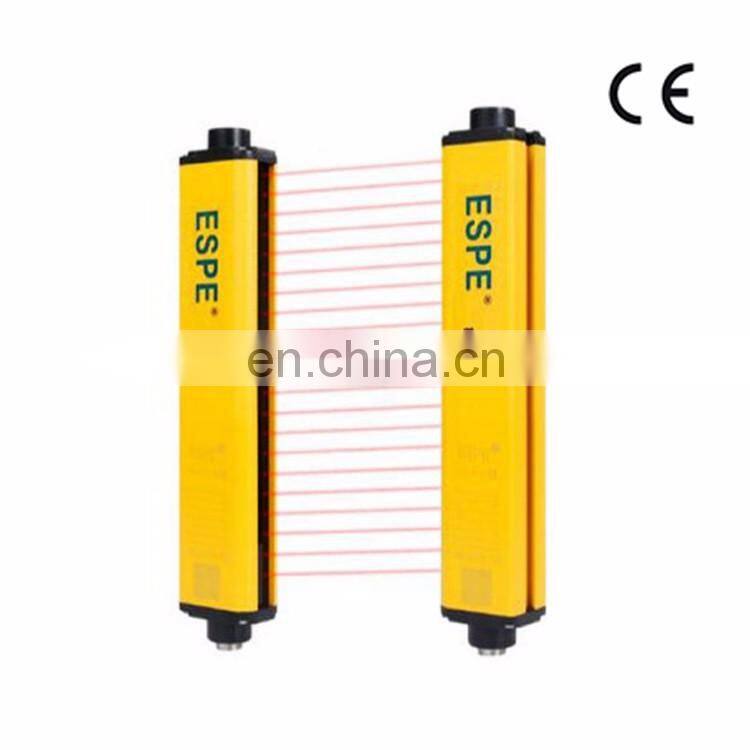

MYDZ series Light Curtain Sensor consists of transmitter and receiver, the light emitted by the transmitter direct to the receiver formed the light curtain system. Placed between the transmitter and the receiver object will block part of the light that it cannot reach all parts to corresponding receiver devices. MYDZ series measurement light curtain use synchronous scanning to identify blocked channel. First, a light beam is emitted by the transmitter and at the same time the corresponding receiver find the light beam. After finishing scan the channel found by the receiver, then turn to the next channel until all the scans have been completed. When the scan is complete a cycle, the system will record which channel through and which channel are blocked. According to the definition of the system outputs signal, this signal can be analog signal or switching signal.


Technical parameters:

Detection Distance:


MYDZ□□10 series: 0-3500mm
MYDZ□□20 series: 0-3500mm
MYDZ□□40 series: 0-3500mm
MYDZ□□80 series: 0-3500mm


Measuring Height: 70mm-2080mm
Beam pitch: 10mm, 20mm, 40mm, 80mm
The minimum size of object: 10mm, 20mm, 40mm, 80mm

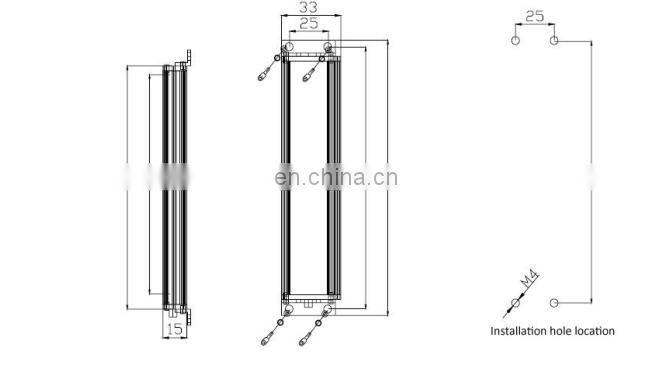

Section size: 15x33mm
Power supply: 24Vdc
Power consumption: < 15W
Ambient Temperature: -10-50ºC
Environment humidity: RH≤85%(20ºC)
Response time: <20ms

Control Output type

1. Switching Output: NPN/PNP output
2. Analog Output: 4-20mA, 1-5V DC, 0-5V DC, 0-10V DC, it can be connected with host computer or other data acquisition systems.
3. Communication output: RS485 or RS232 communication, using standard Modbus protocol agreement with the host computer.

Scanning Method:

1. Parallel Scanning (Default): Scan all beams, the transmitter’s emission and the receiver’s receives is corresponding (one to one) relationship.
2. Intersect Scanning: Composed of parallel scanning and inclined beam. Inclined beam is the second channel of the emitter corresponding to the first channel of the receiver, the third channel of emitter corresponding to the second channel of the receiver until the final channel of the emitter corresponding to the last but one channel of the receiver to complete the scan. Therefore, the intersect scanning can improve the detection accuracy of part of 1/3 distance detection.

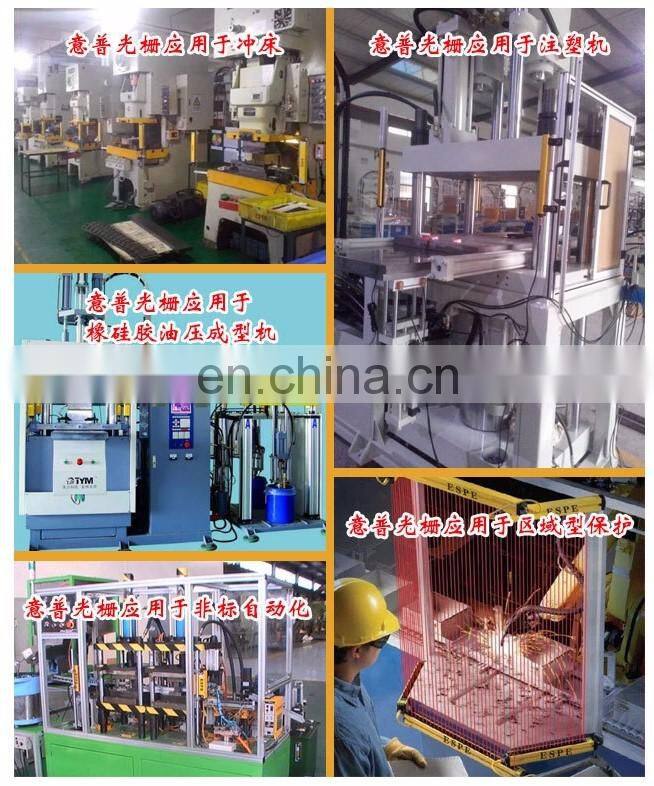

Application case:

Detailed Image
certifications
About Us

COMPANY PROFILE

Shanghai QiYi Electrical & Mechanical Equipment Co., Ltd is a technology industrial enterprises integrating R & D, production, agency and sales. our company focus on the rotary encoders, displacement sensors and proximity sensor with CALT brand. We have many years of experience in supplying rotary encoders and sensors, which widely used in CNC machine, steel rolling machinery, linear guide systems, hydraulic systems, lifting machinery, turbine and other multiple industries. Located in Shanghai, we enjoy convenient air, water and land transportation.

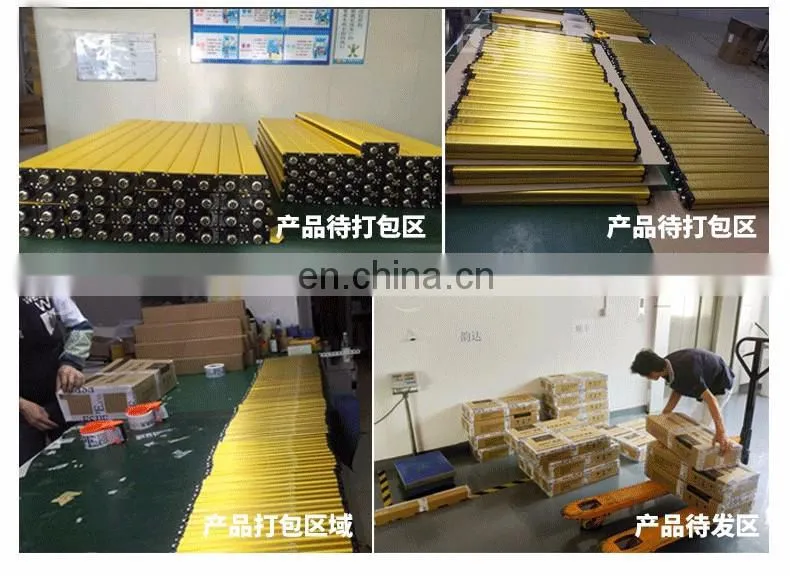

Packing & Delivery
