Product Description

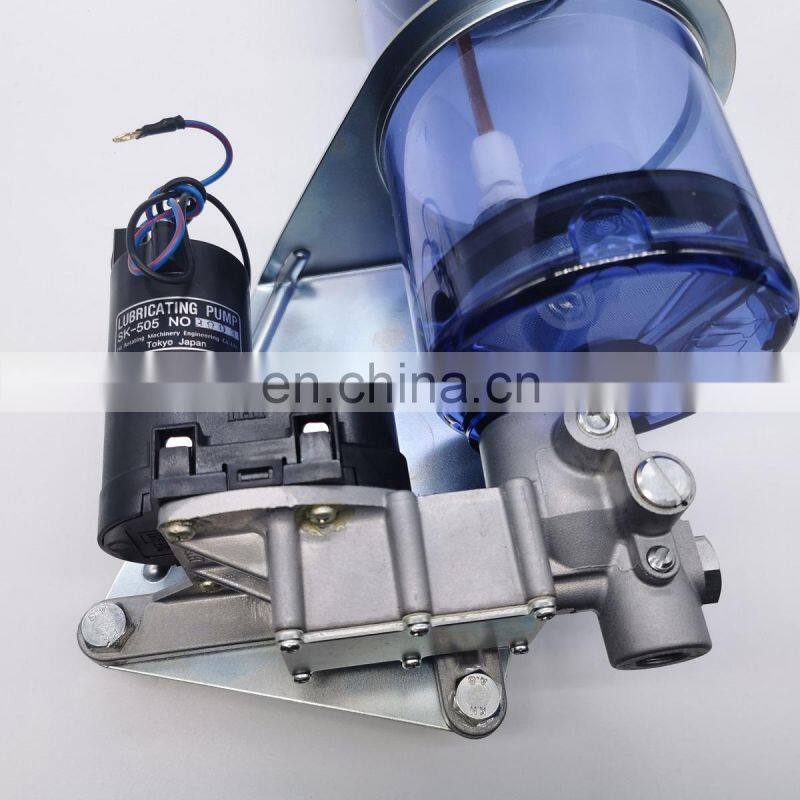

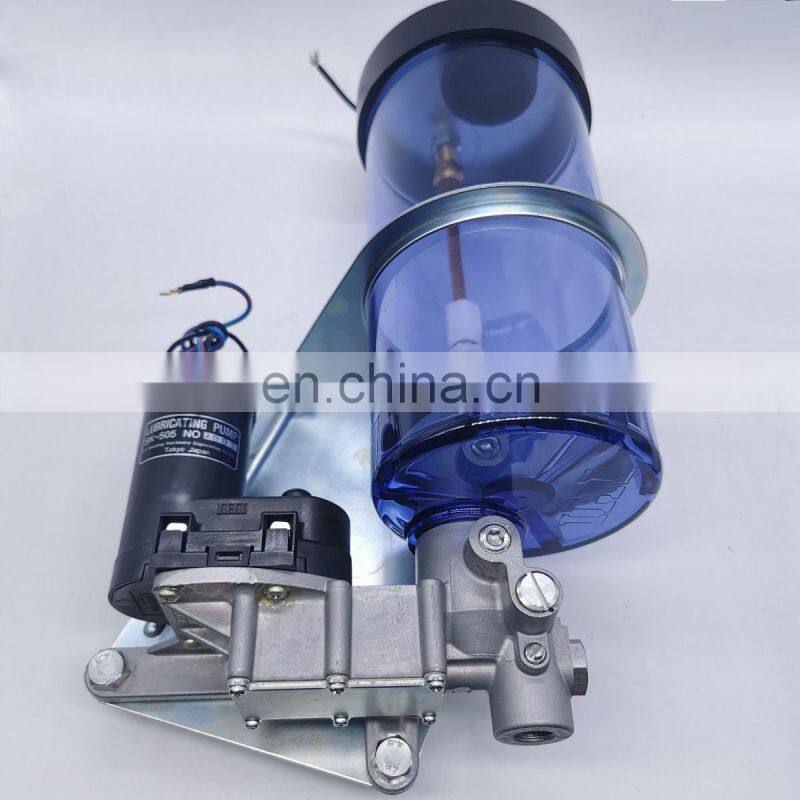

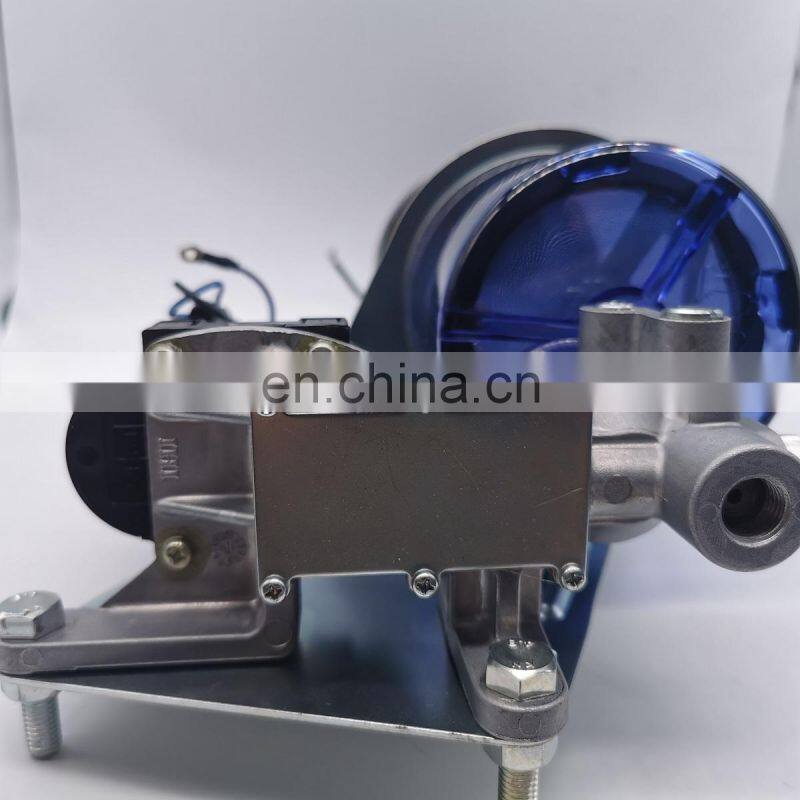

Centralized Grease lubricating system pump SK-505BML Motor-driven type oil pump
Product Description
Construction of Equipment

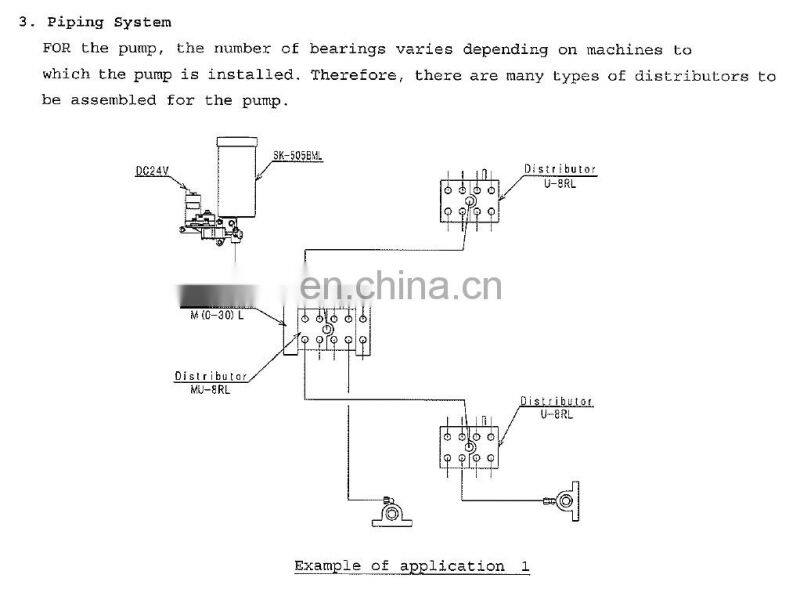

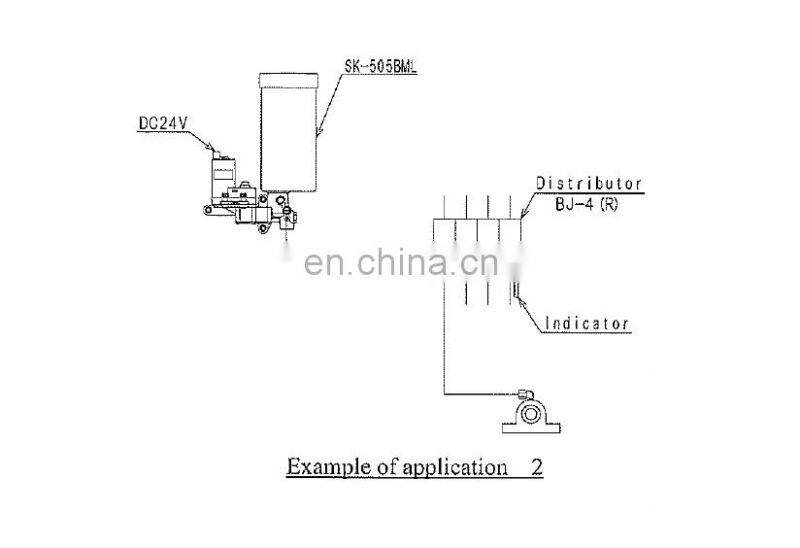

This system consists of a motor-driven grease pump that supplies oil at high pressure, control panel, distributors, pressure control valve and piping.
When the motor rotates, the plunger starts reciprocating motion to suck and discharge the oil in the reservoir.

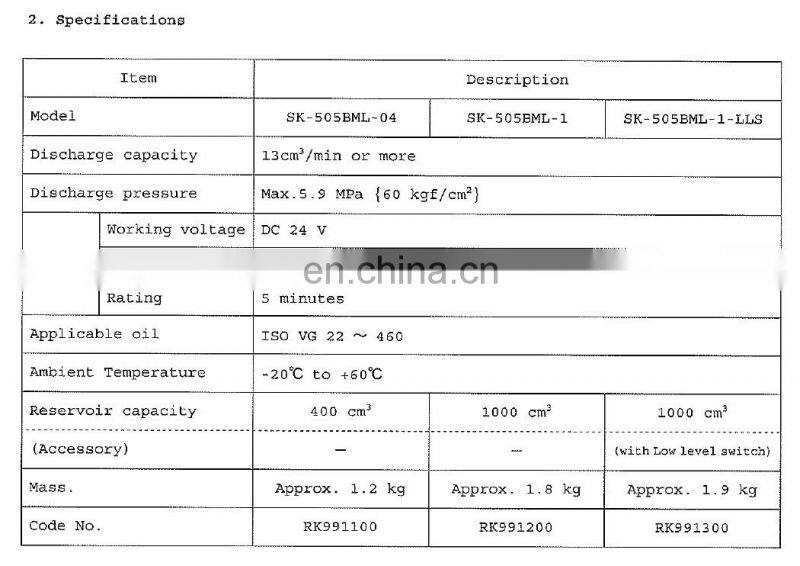

Specification
item | value |
Warranty | 1 year |
Model Number | SK-505BML |
Place of Origin | Japan |
Application | Automotive Industry, Industrial Utilities, Machining |
Power Source | Electric |
Pressure | Max. 5.9Mpa |
Structure | Diaphragm Pump |
Voltage | 24 |
Model | SK-505BML-1 |
Discharge capacity | 13cm3/min |
Discharge pressure | Max. 5.9 Mpa |
Working voltage | 24Vdc |
Application oil | ISO VG 22~460 |
Reservoir capacity | 1000cm3 |
