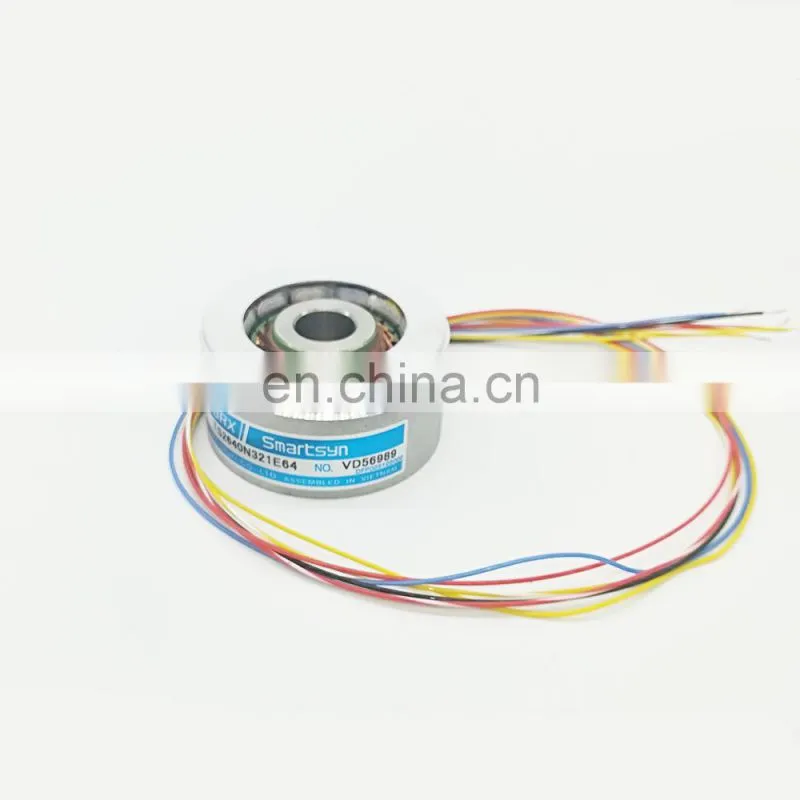

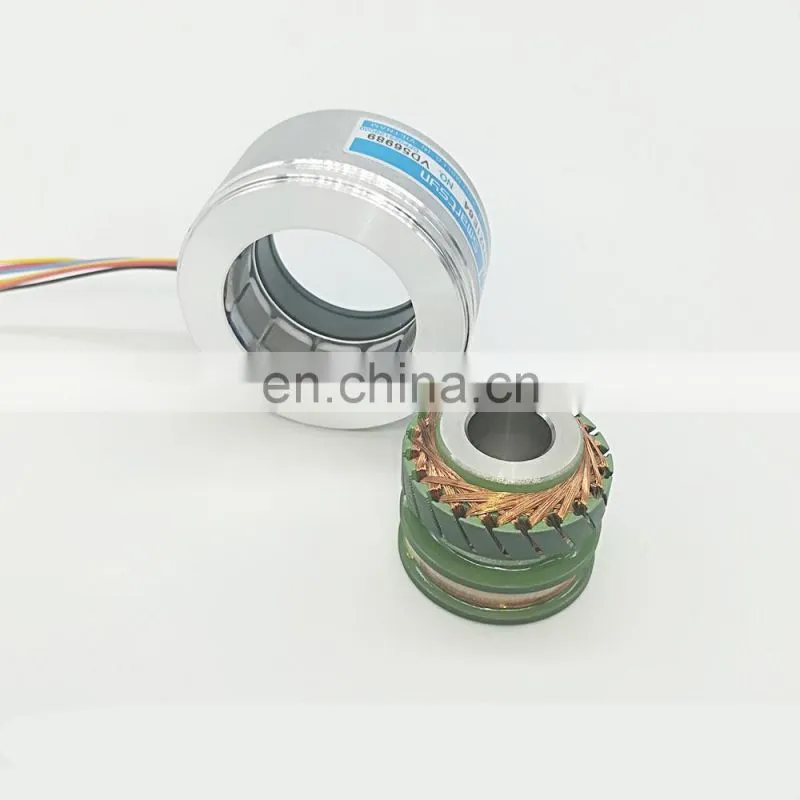

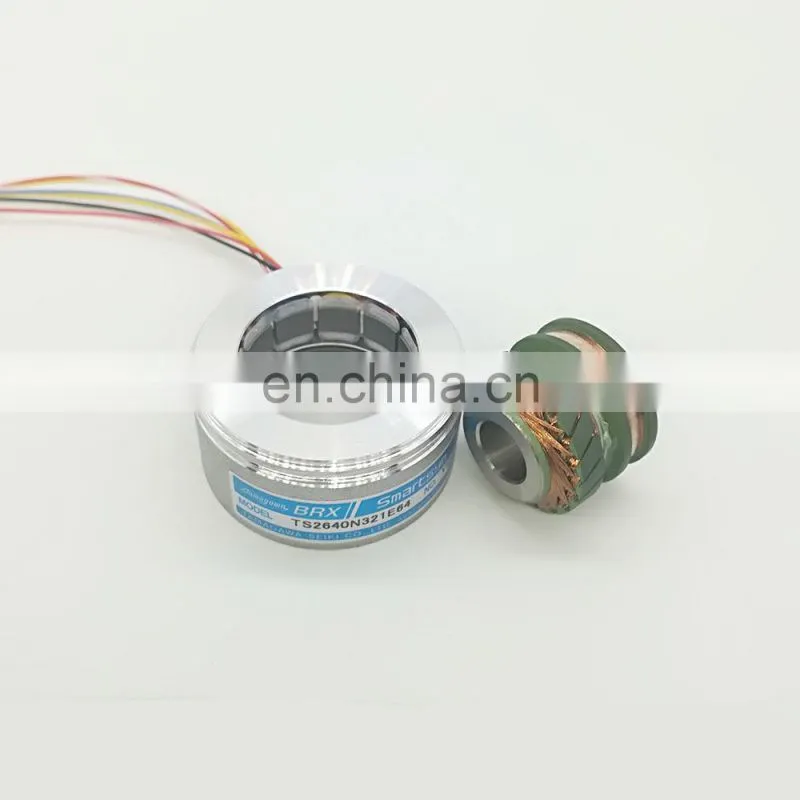

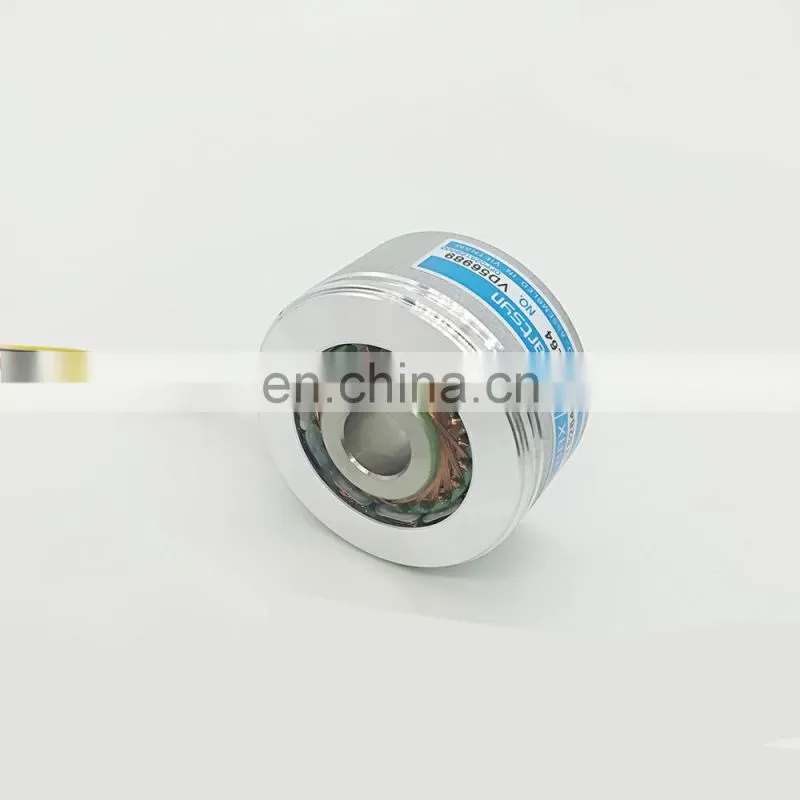

Rotary Encoder Rotator TS2640N321E64 Split Type Rotary Transformer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TS2640N321E64 Rotary Resolver Smartsyn Built-in Split Type Rotary TransformerNegotiableMOQ: 1 -
RT069-MK2-T Rotary Handwheel Line Driver CNC MPGNegotiableMOQ: 1
-
CNC Handle 100ppr Manual Pulse Generator RT069-MK2-TNegotiableMOQ: 1
-
12volt Manual Pulse Generator 25ppr Hand Wheel Encoder RT068-MK2-TNegotiableMOQ: 1
-
RT067-MK2-T Hand Wheel 4 Axis 100ppr MPGNegotiableMOQ: 1
rotary encoder rotator TS2640N321E64 split type rotary transformer
Smartsyn is a new brushless rotary transformer. They have a fixed feature, a brushless design, and are insensitive to noise, vibration, impact, and high temperatures.
Features:
1,Operating temperature range:
-55 to +155°C (built-in type)
-30 to +100°C (out-of-shaft, TS2028 and TS2054)
2,Can work in harsh environments:
Vibration: 196m/s2 (100G) at 10-500Hz
Impact resistance: 981 m/s2(100G) for 11ms
Humidity: Minimum relative humidity of 90% at 60°C
3,High reliability and long life due to no brush
4,The maximum operating speed is:
100 to 500s-1 (6000 to 30000 min-1) (built-in type)
100s-1(6000min-1)/(Out shaft type)
5,No electronic and mechanical noise
Installation requirements:
Shaft deviation
Mounting Deviation Between Motor Shaft and Axle Less Than 0.050mm (TIR)
6,Concentric
Resolver center and motor shaft kept within 0.050mm (TIR)
Vertical
The perpendicularity between the resolver and the motor is kept within 0.050mm (TIR)
Axis
Built-in type, stator and rotor copes with axial degrees within MTG.DIM tolerances
