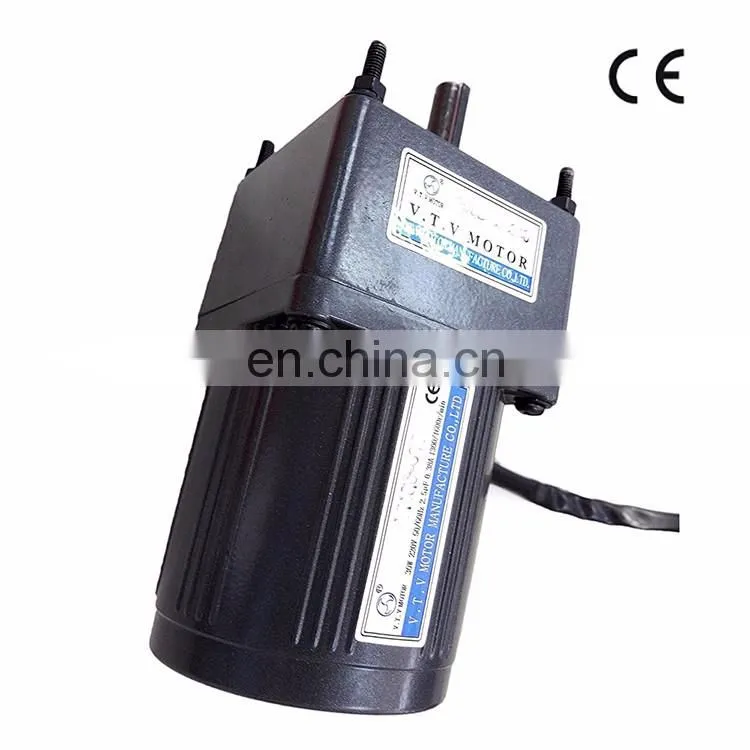

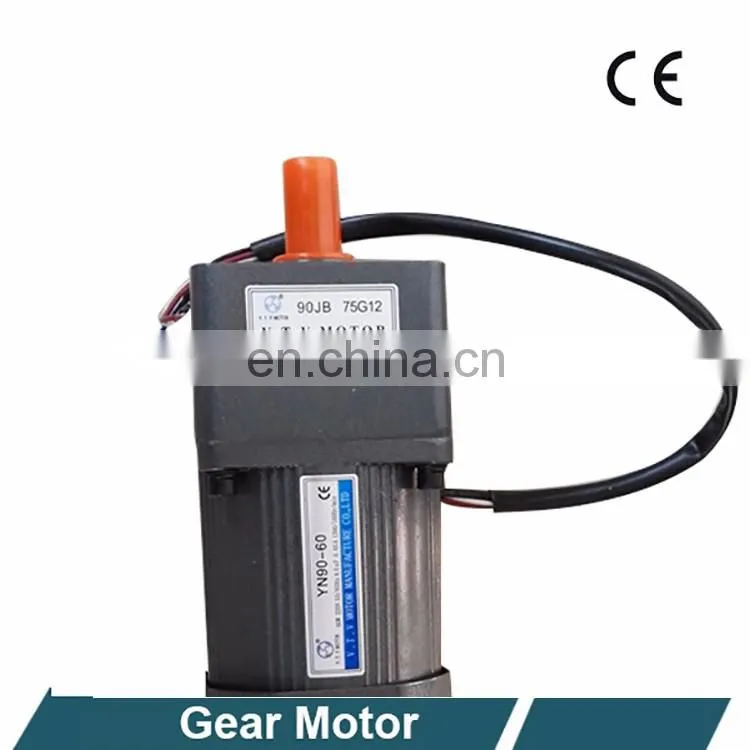

AC 220v 90w ac Gear Motor With Gear Reduction YN90-90/90JB20G15NegotiableMOQ: 1 -
VTV Motor YN90-40 90JB15G15 Constant Speed ac Gear MotorNegotiableMOQ: 1
-
24v dc Electric Motor for Bicycle 250WNegotiableMOQ: 1
-
MY1025 High-speed Brush Electric Motor 24V 250WNegotiableMOQ: 1
-
3 Wires VTV ac 220V 25w 10mm Shaft YN80-25/JB300G10 Induction Gear Motor With Gear BoxNegotiableMOQ: 1

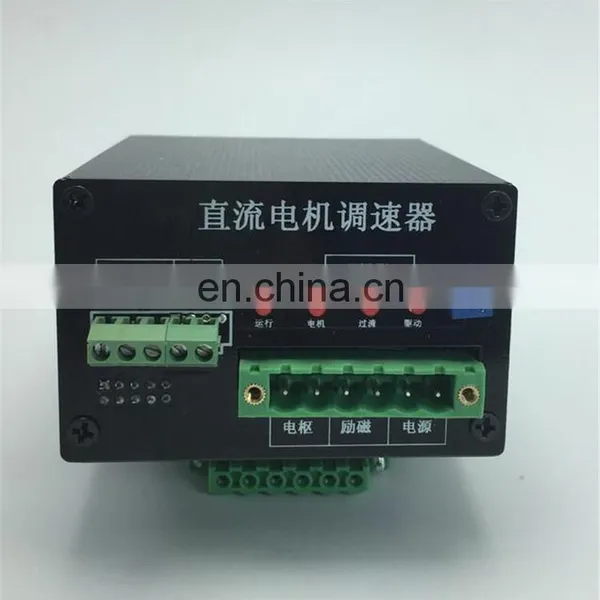

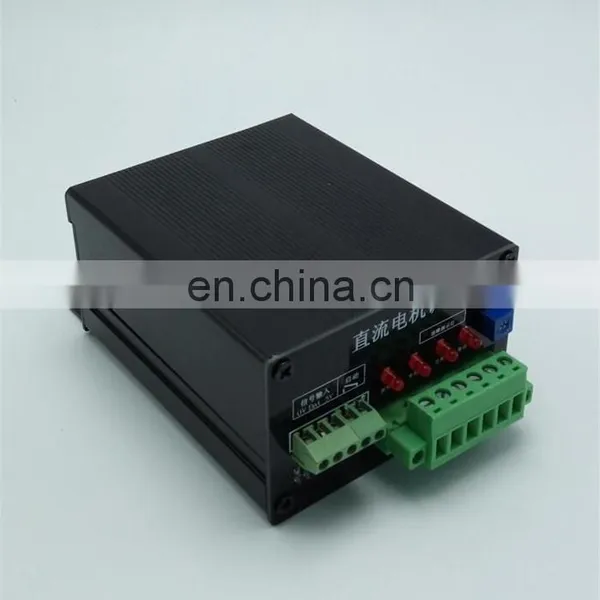

High quality 220v 250W PWM DC motor speed controller
Reliability and protection mechanisms
Input analog signal isolation, improve system reliability and security
Current limiting protection, to accurately collect motor current
Increase the temperature sensor to achieve over-temperature protection;
Circuit board need to spray three anti-paint to improve reliability
【Technical Parameters】
Model: HWK2-220
Input voltage range: AC220V
Output voltage: DC0 ~ 220V ( can customize the max output voltage according to customer 's requirement )
Excitation voltage: 200VDC
Rated power: 250W
Rated current: continuous current 5~ 6A
Peak power: 1500W
PWM frequency: 18kHZ (the most ideal PWM modulation frequency)
Speed control: potentiometer or 0 ~ 5VDC analog input or 0 ~ 10VDC or 4 ~ 20mA input 【Input signal and control loop comes with isolation function】
Protection function: LED fault indication
Output short circuit protection Output circuit breaker protection Over-temperature protection Motor over-current protection Anti-coaster protection
【Wiring】
【0 ~ 5VDC or 0 ~ 10VDC input connection】
[R] connected to 0 ~ 5V analog
[G] connected to the negative power supply, such as single-chip negative power supply, or PLC power supply negative;
[K] side directly connected MCU IO port or PLC output port; if no switch function, you can use a wire connected to [G] side
【4 ~ 20mA input connection】
[R] connected to 4 ~ 20mA analog
[G] to the negative power supply, such as the negative power supply PLC;
[K] side of the PLC output port; if no switch function, you can use a wire connected to [G]

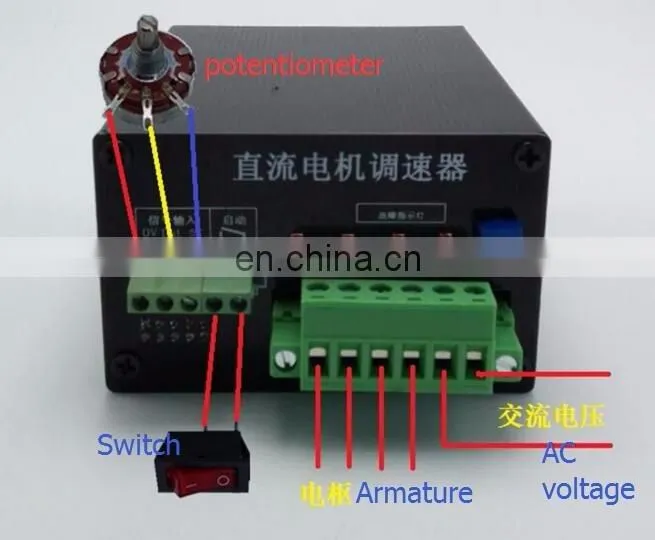

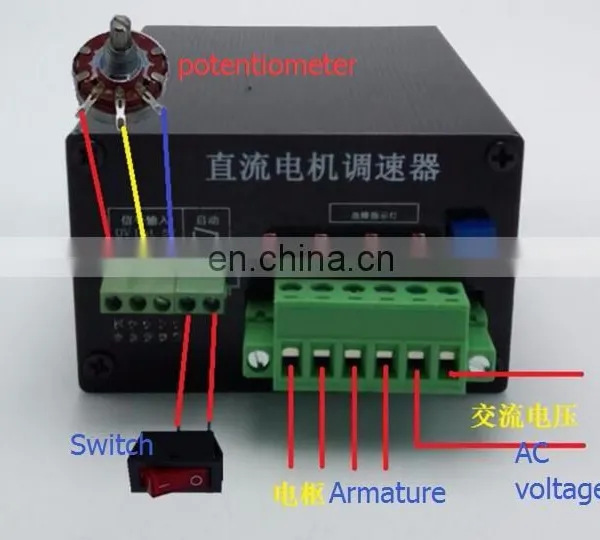

【Potentiometer connection method as shown below】
70mm size gear motor 90mm size work
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
