24v dc Electric Motor for Bicycle 250W

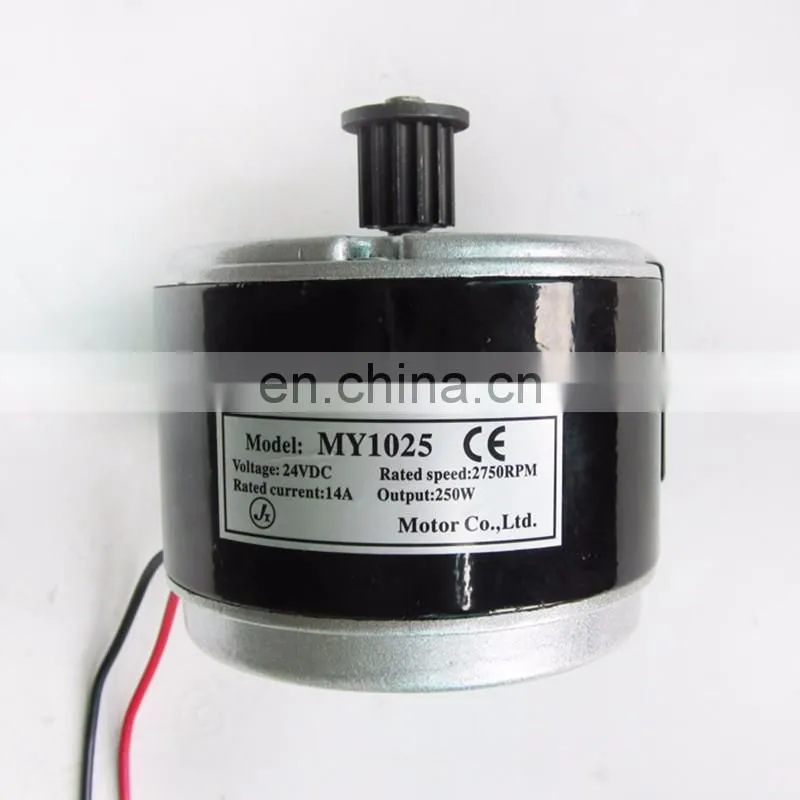

24v dc Electric Motor for Bicycle 250W photo-1
24v dc Electric Motor for Bicycle 250W photo-2

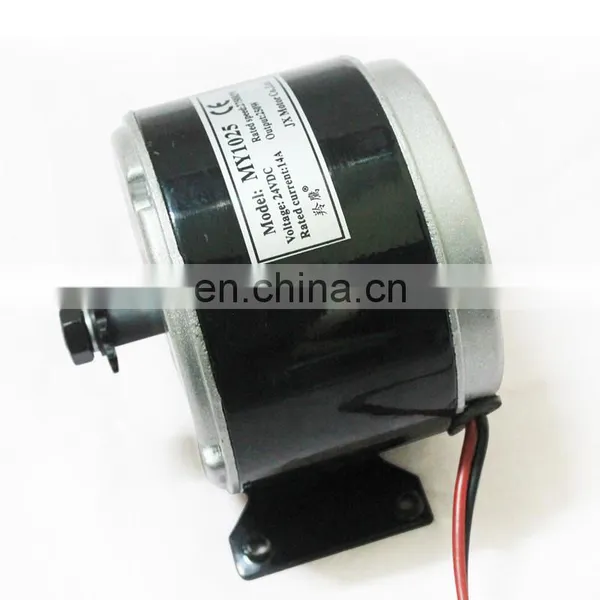

24v dc Electric Motor for Bicycle 250W photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Specifications

24v dc electric motor for bicycle 250W


Rated speed: 2750RPM
Rated voltage: 24V
Rated output: 250W
Empty current: 1.6A
Rated current: less than 14A
Motor weight: 1.9kg
Motor diameter: 101mm
Motor length: 110mm
Reference load: 75kg
Speed: about 25 kilometers per hour
Mounting holes: 42-95mm (four holes)
Motor gear: 13 tooth belt gear
Applicable belt: 535-5m -15 for driving belt
Model: MY1025
