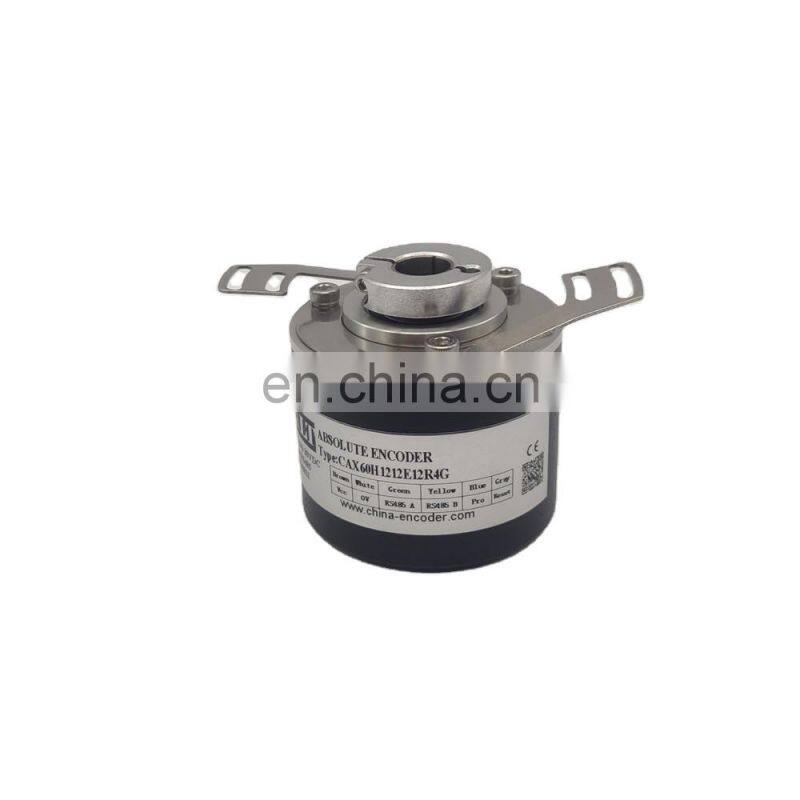

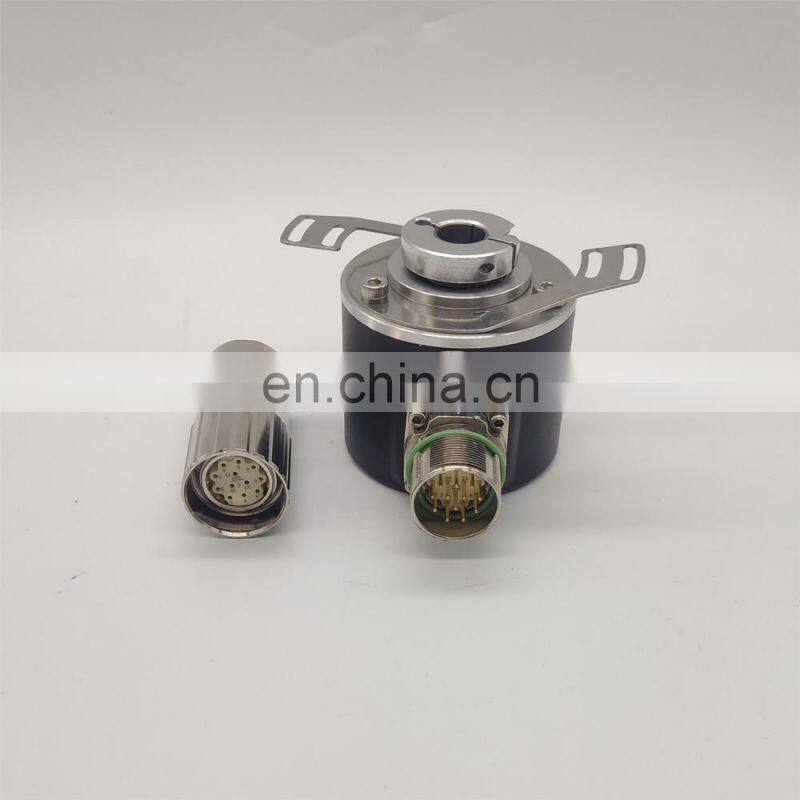

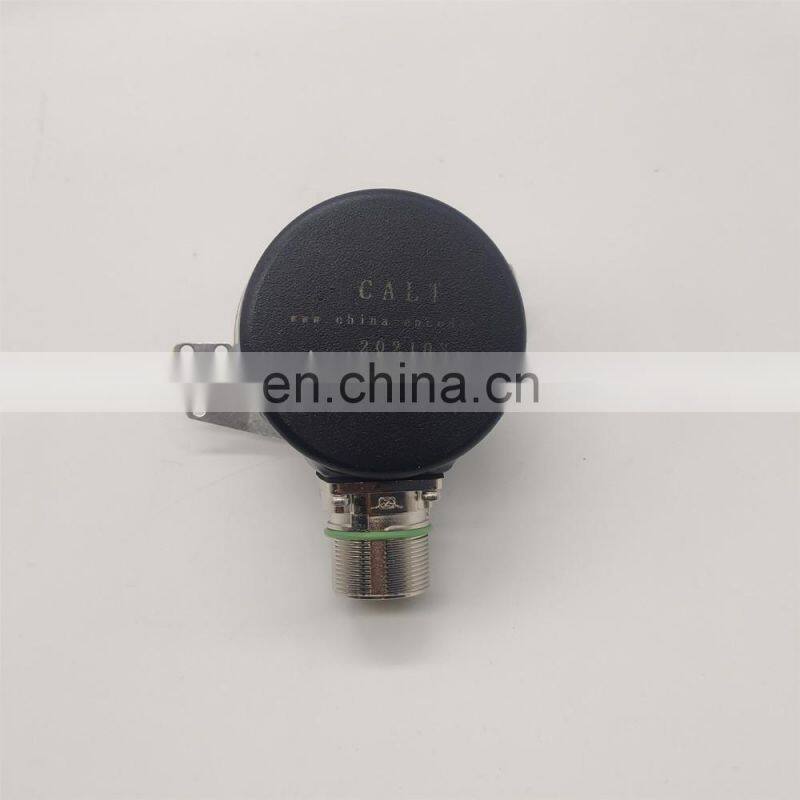

CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder

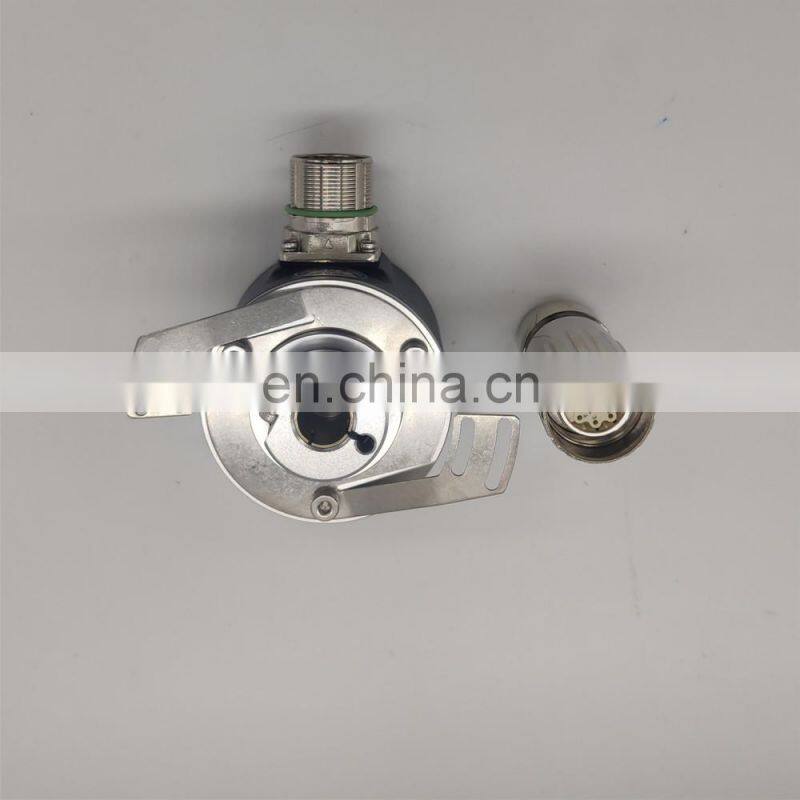

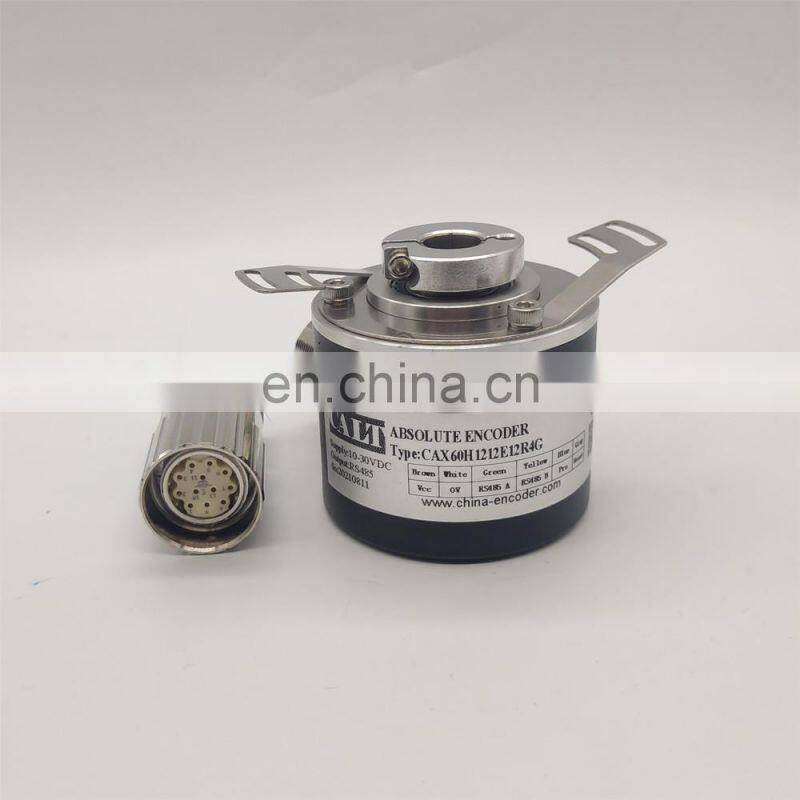

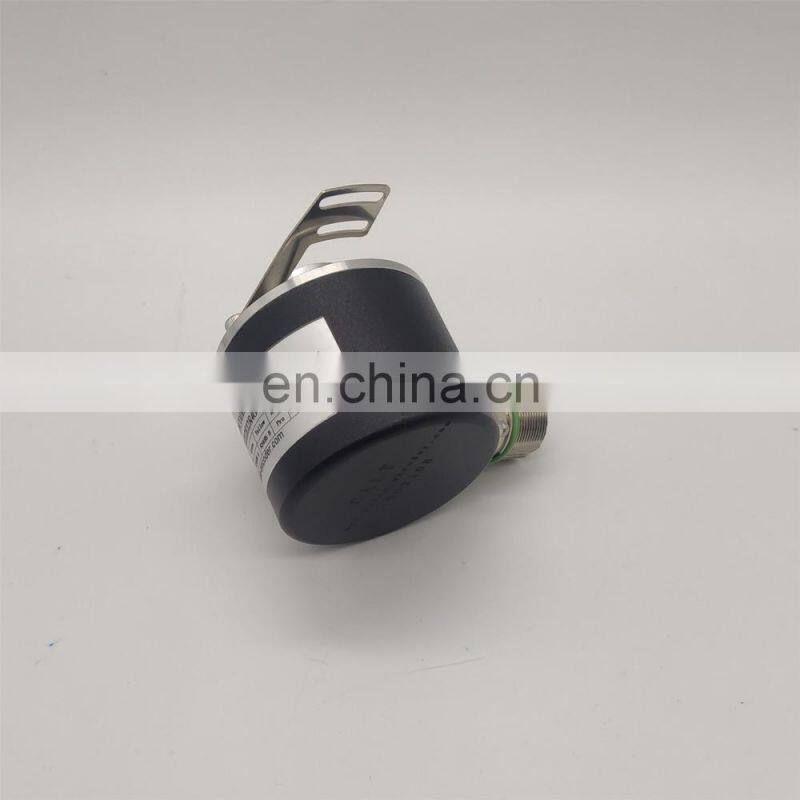

CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder photo-1

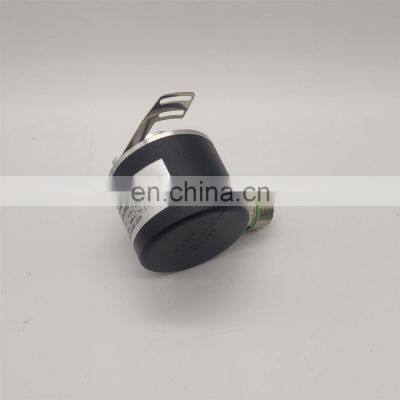

CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder photo-2
CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder photo-3
CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder photo-4
CALT 12mm Shaft 4096 Encoder CAX60H1212E12R4G Absolute Encoder photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

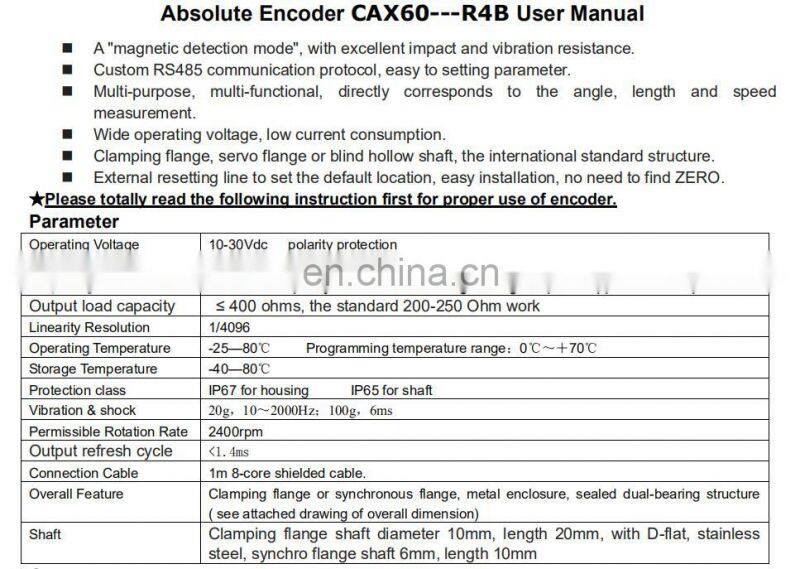

Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
item
value
Model Number
CAX60H1212E12R4G
Type
ABSOLUTE ENCODER
Place of Origin
China
Shanghai
Brand Name
CALT
Usage
speed and angle sensor
Theory
optical sensor

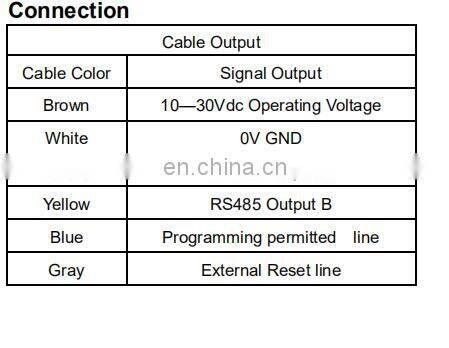

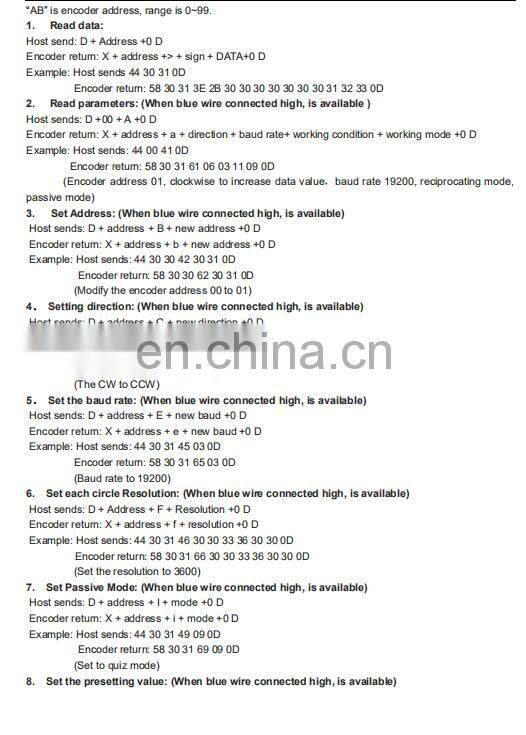

Output
RS485
Description
absolute encoder
Outer Diameter
60mm
Shaft Diameter
12mm
resolution
12bits
Operating Voltage
10-30Vdc polarity protection
Current Consumption
< 80mA (24V power supply) no load
Linearity Resolution
1/4096
Operating Temperature
-25-80℃
Programming temperature range
0℃~+70℃
Storage Temperature
-40-80℃
Permissible Rotation Rate
2400rpm
Specification
