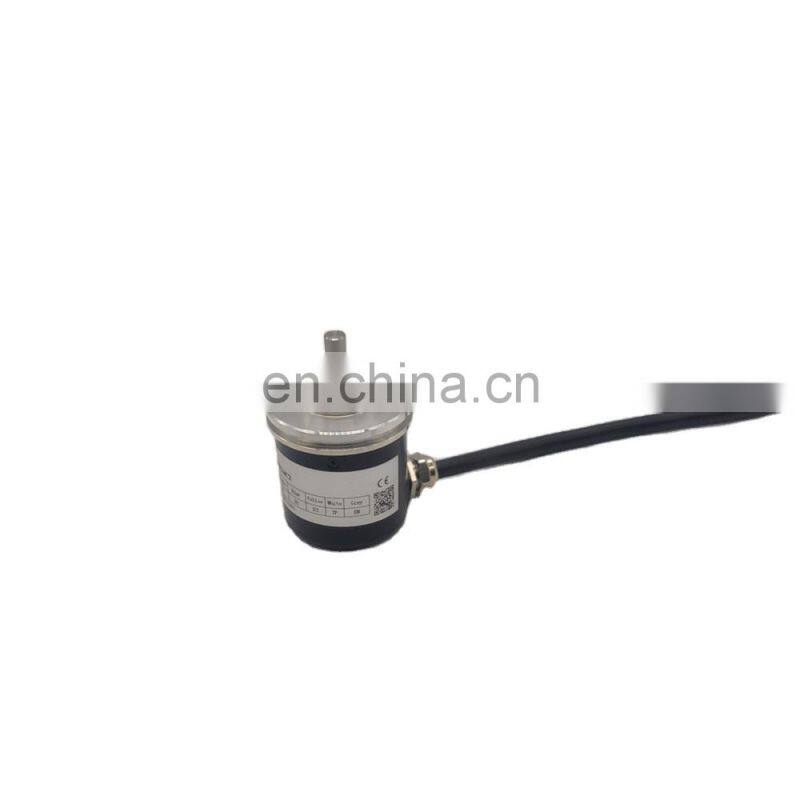

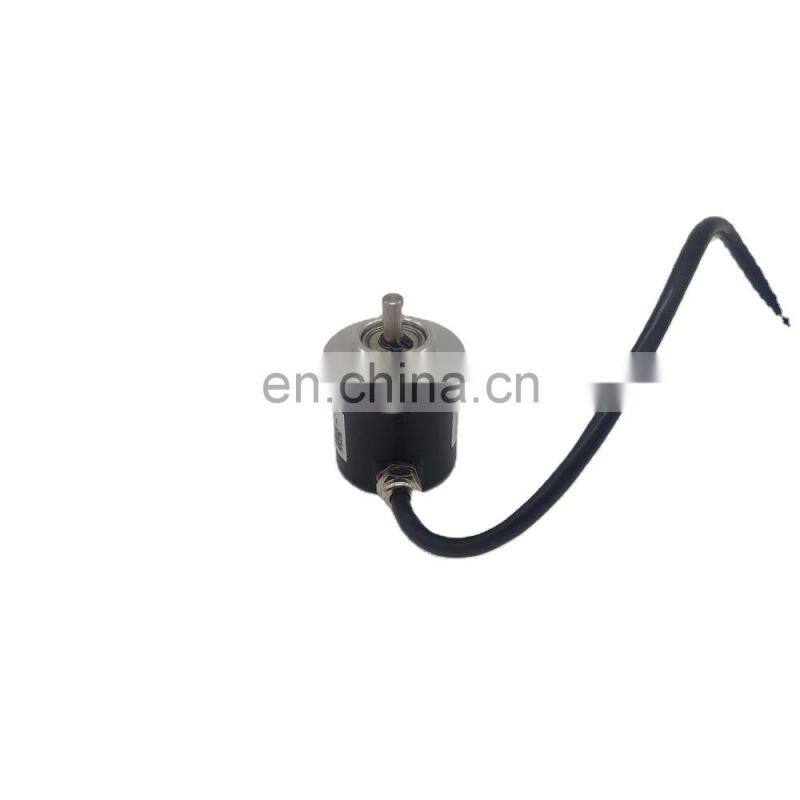

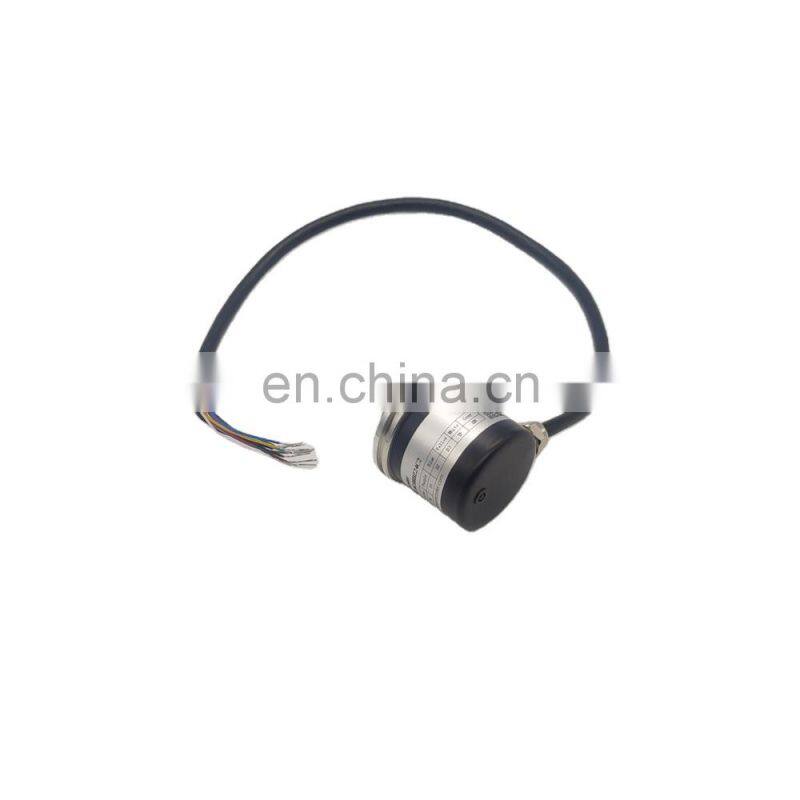

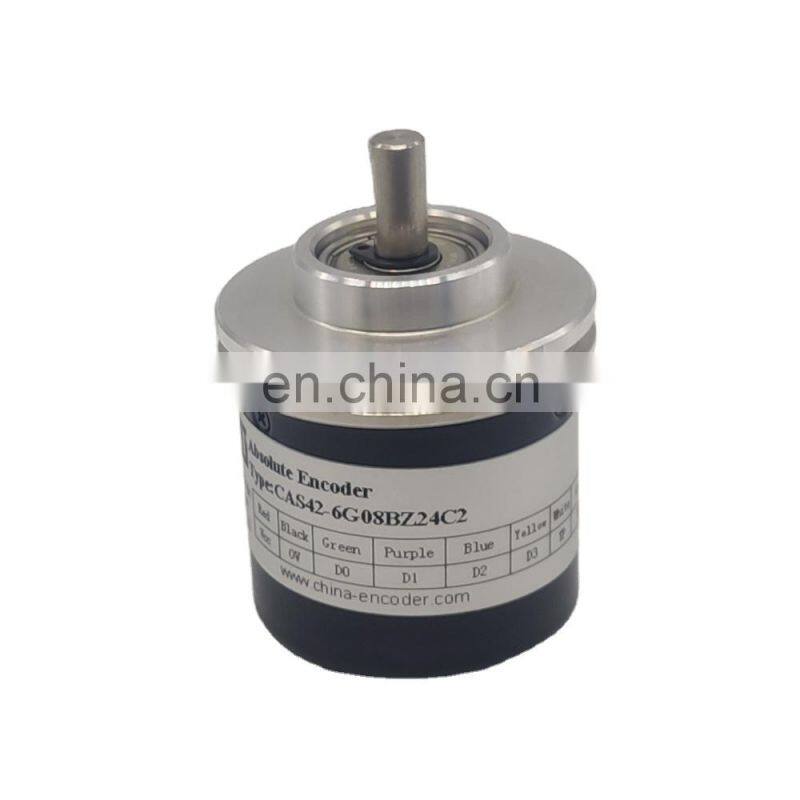

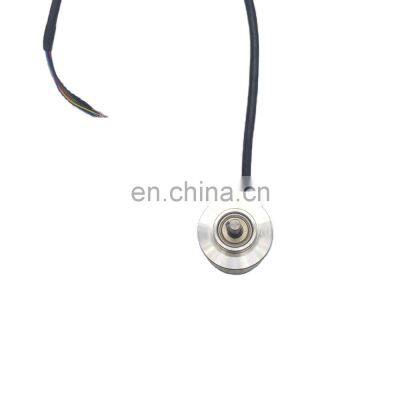

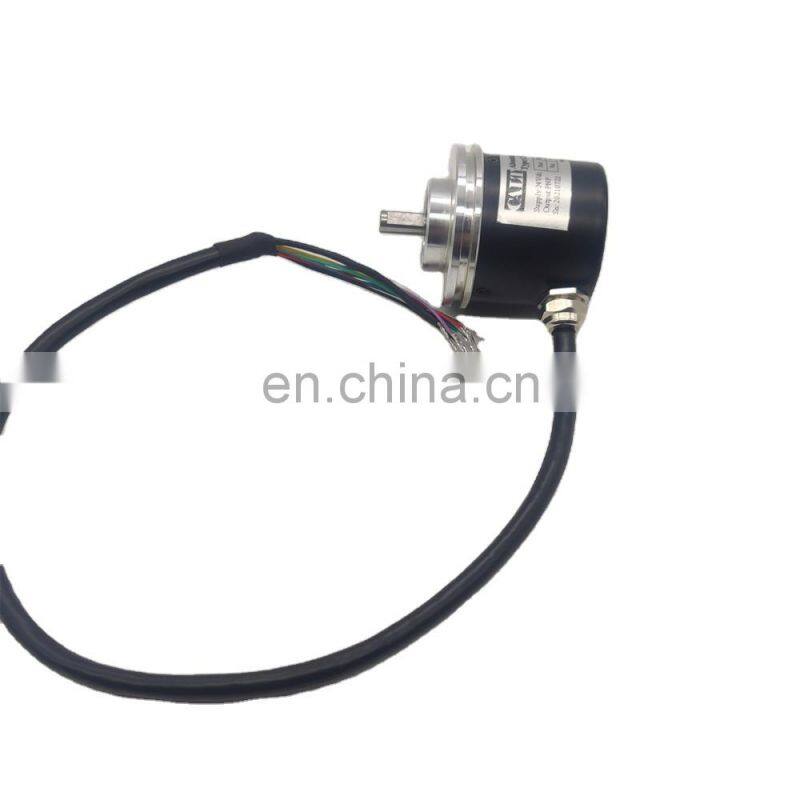

8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting

8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting thumbnail-1
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting thumbnail-2
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting thumbnail-3
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting thumbnail-4
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting thumbnail-5
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting photo-1
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting photo-2
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting photo-3
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting photo-4
8 Position Absolute Encoder CAS42-6G08BZ24C2 for Easy Mechanical Mounting photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Shanghai Qiyi Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Specification
item
value
Model Number
CAS42-6G08BZ24C2
Type
ABSOLUTE ENCODER
Place of Origin
China
Brand Name
CALT
Usage
speed and angle sensor
Theory
optical sensor
Output
PNP
Description
Absolute encoder
Outer Diameter
42mm
Shaft Diameter
6mm
position
8position
Supply Voltage
24VDC
Output
PNP
Max current consumption
120mA(UNLOADED)
Max response frequency
100KHZ
Operating Temperature
-20~85℃(UNFROZEN)
Storage Temperature
-20 ~ 100°C (UNFROZEN)
Protection Class
IP66
Related Product

CWP-S400 400mm 12V/24V analog output 4-20mA 0.6mm cable diameter resistive displacement sensor

CALT CESI-S1500 1500mm China Factory Measurement Tool Draw wire position sensor

DC 5-26v Linear Scale Absolute Encoder Draw Wire Sensor linear position sensor CESA-S1100-RM

CALT 24 Volt String Potentiometer Sensor Linear Potentiometer Position Linear Sensor

CALT 2300mm 4mA full in 20mA full out analog output draw-wire displacement encoder

KTM Series Mini Type Low Stoke Range Resistive Displacement Sensor

Packing & Delivery
carton
Company Profile
SHANGHAI QIYI CO., LTD ( previous name: Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd.) is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Load cell, Incremental rotary encoder,Absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world, we are adhering to the idea "credibility first, customer first, win-win cooperation" , strive for the highest quality products and services to contribute to our customers!
FAQ
1. who are we?
We are based in Shanghai, China, start from 2009,sell to South Asia(15.00%),Northern Europe(10.00%),North America(10.00%),Southern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(8.50%),Mid East(5.00%),Southeast Asia(5.00%),Central America(3.00%),Eastern Asia(2.00%),Oceania(1.00%),Africa(0.50%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
rotary encoder,draw wire sensor,load cell,gear motor,LoT sensor

4. why should you buy from us not from other suppliers?
1.Professional team, have more than 10 years manufacture and application experiences for rotary encoder and Load cell. 2.We support OEM design, and MOQ is 1 piece. 3.Short lead time: 3-5 days. 4.Various Shipping option 5.Nice quality assurance.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
