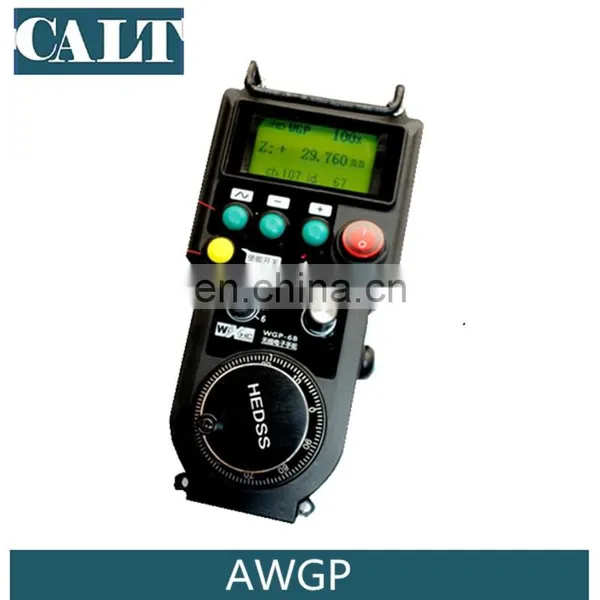

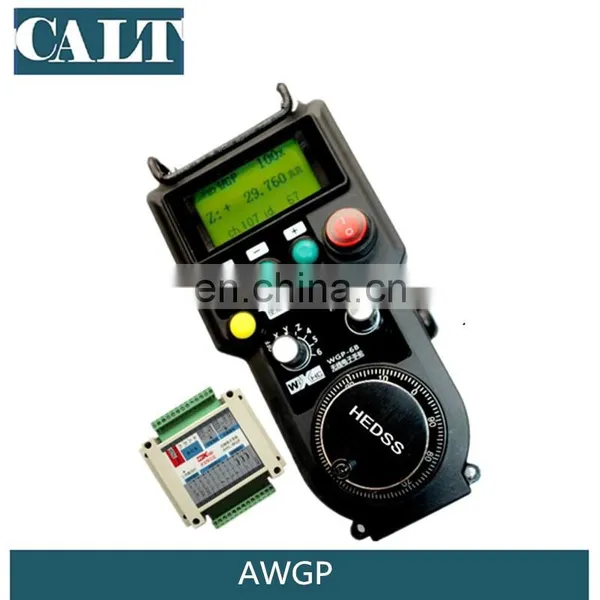

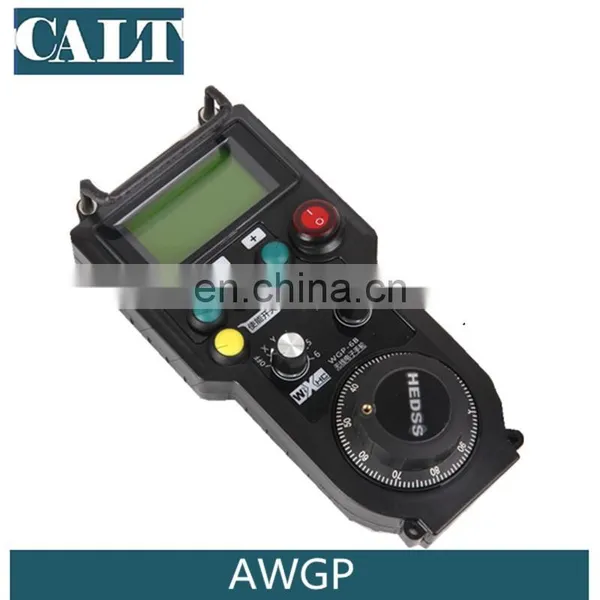

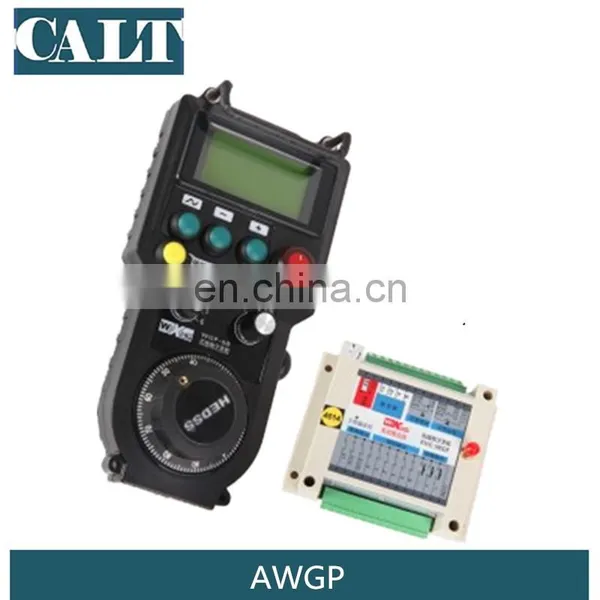

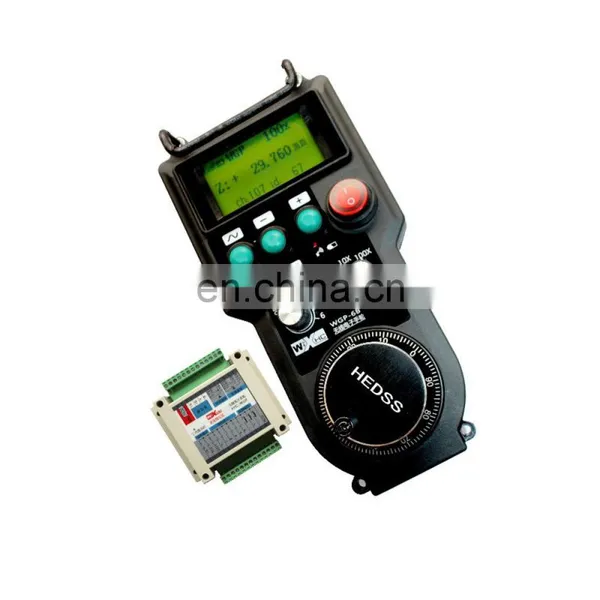

100% sales AWGP01-5AA wireless MPG with LCD display for cnc machine

100% sales AWGP01-5AA wireless MPG with LCD display for cnc machine

The product is NC machine supporting the use of manual pulse generator (manual pulse generator), has been widely used in CNC machine tools, CNC lathes, CNC engraving and milling machine, machining centers, and other fields.

This product adopts the wireless transmission technology, eliminating the need for traditional spring wire connection, reduce the equipment failure caused by cable, replacing the cable drag, viscous oil pollution, the operation is more convenient.

Suitable for operating system:

The Japanese Mitsubishi MELDAS (MELDAS M64; M65 electronic handwheel; E60 system for the DC12V power output, DC5V)
The Italy SELCA system
The Japanese FANUC FANUC system
The Taiwan Digiwalker TNC
Taiwan necto (HUST) series
The domestic such as aerospace CNC, CNC, Guangzhou nuoxin, Emperor Kaine KND series
It is suitable for PC_BASE system, the typical system such as: POUYUEN M600 M500 M520i T300 Taiwan Baoyuan ELC-1000 series
The new generation of SYNTEC system in Taiwan
The German PA system such as: Head Au Higerman, Hanak HANUC, Guangzhou GSK CNC CNC CNC system, open
The foreign system: Siemens, NUM, FAGOR (NEW 8055I, Spain Fage) etc.

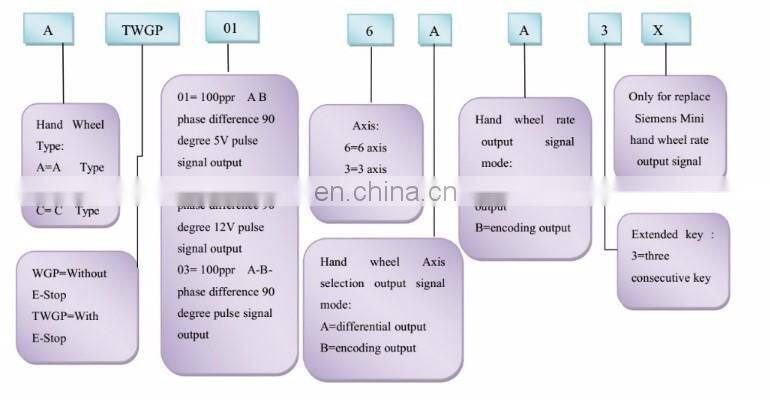

Model:

Specific Product Model:

AWGP0X-4A-2 (four axis, with clear, points in the key, with LCD display, differential output);

AWGP0X-6A-2 (six axis, with clear, points in the key, with LCD display, differential output);

AWGP0X-4B-2 (four axis, with clear, points in the key, with LCD display, encoding output);

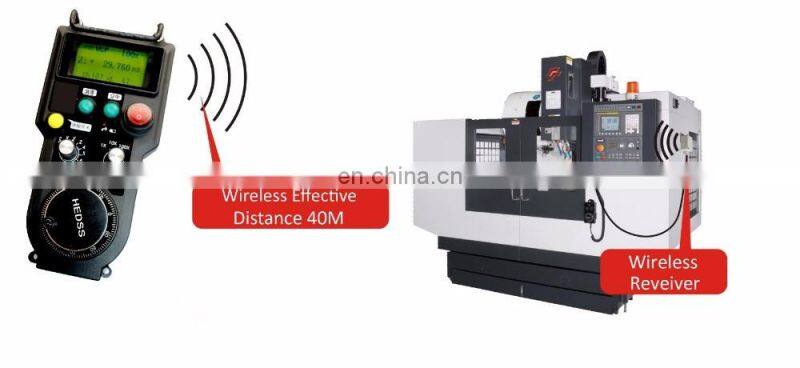

Working Principle Diagram:

Using wireless transmission technology, convenient operation, eliminating the traditional spring wire connection, reduce the failure rate of cable and remove cable drag and viscous oil pollution.

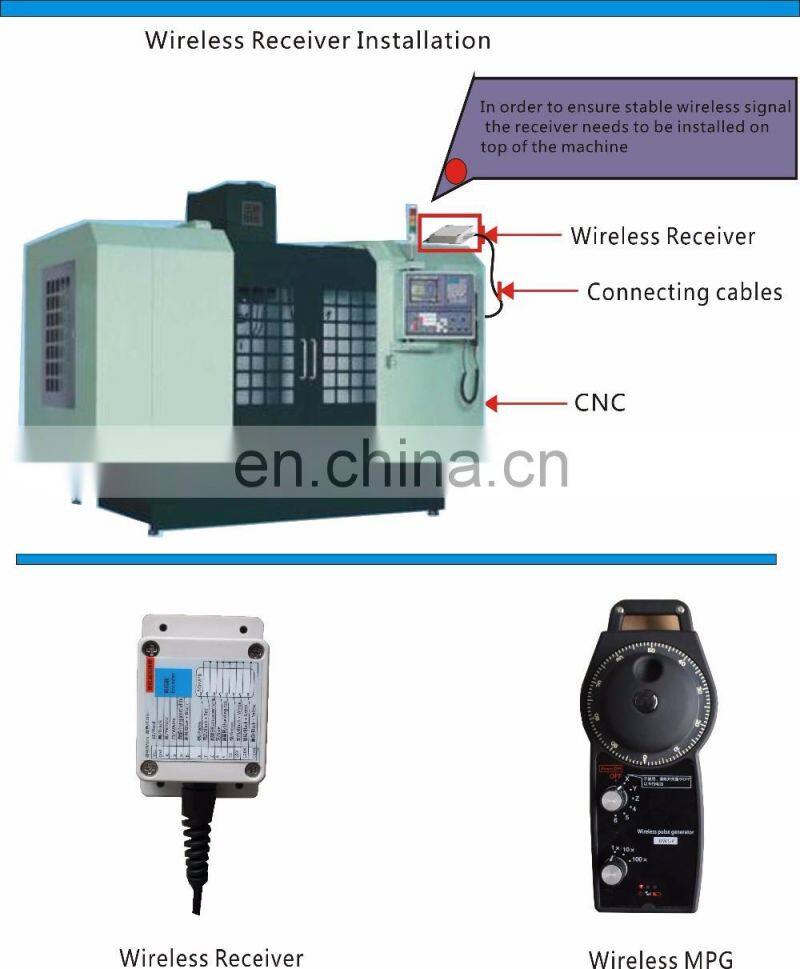

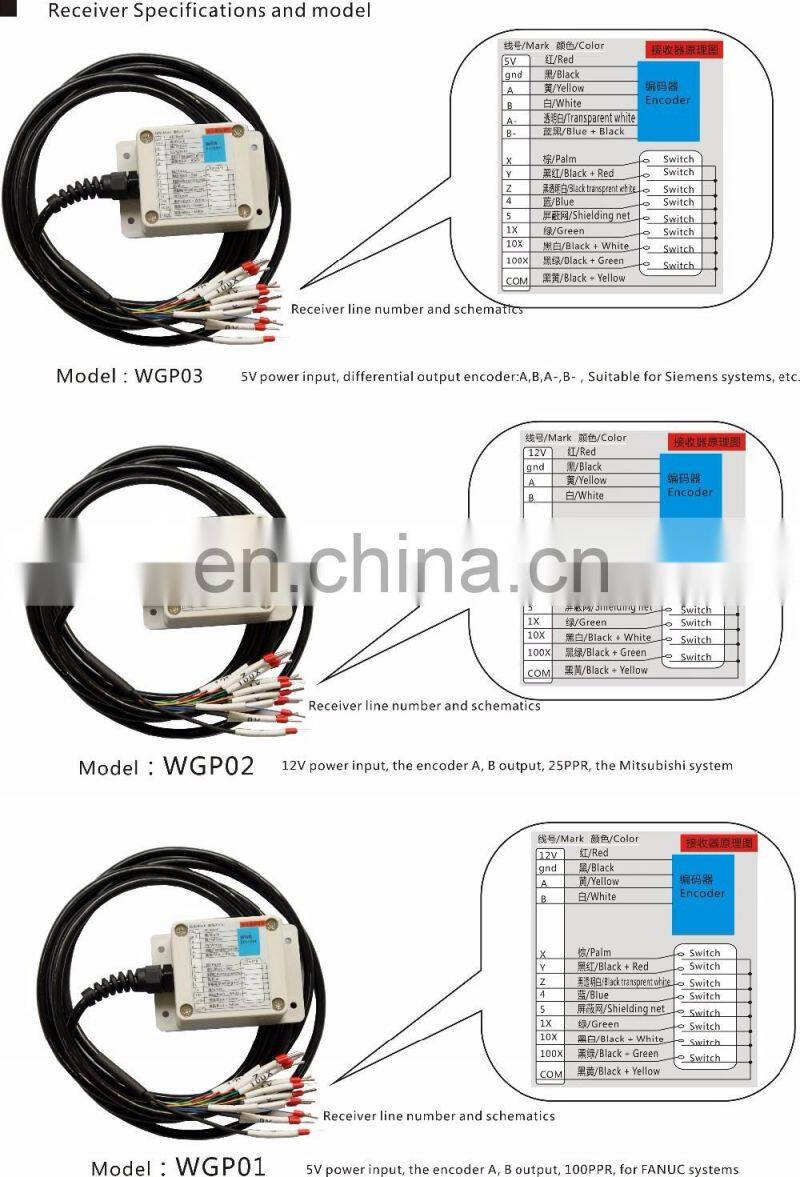

Wireless electronic handwheel (manual pulse generator), the receiver through 16 core line spring is connected with a machine tool, electronic handwheel, manual pulse generator) through wireless transmission technology and the receiver are connected to the news, the operator can hand handwheel, get rid of the line spring join irreducible, to move around freely, easy to operate, freedom, stable and reliable, reduce the failure rate (because the traditional cable wheel, you need to connect with the line, a long time, spring line inside the cable easily broken, causing failure to operate). For large-scale Longmen milling, large numerical control lathe, large-scale machine tool and other applications, but also brings great convenience, improve work efficiency.
