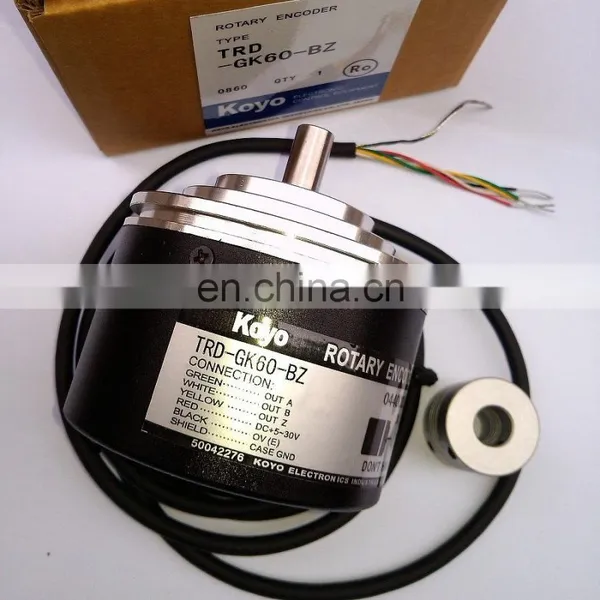

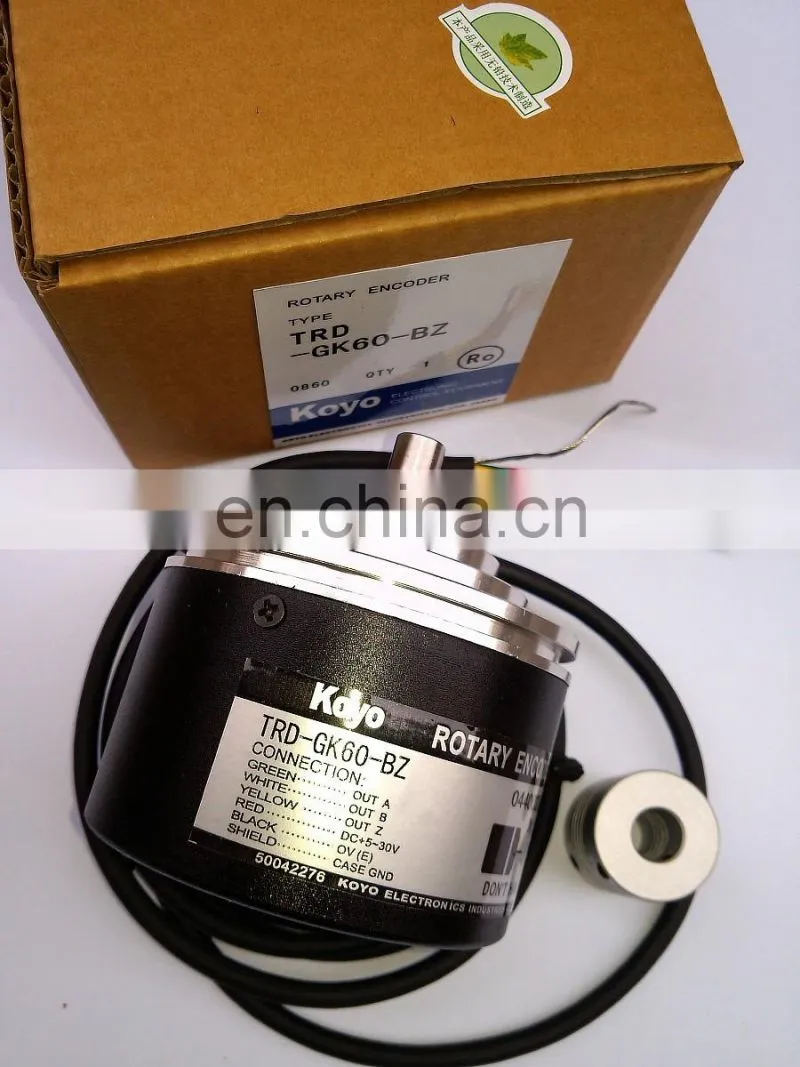

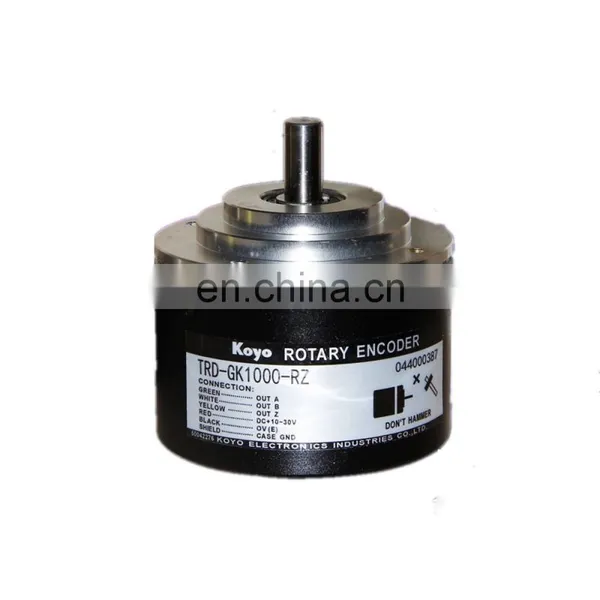

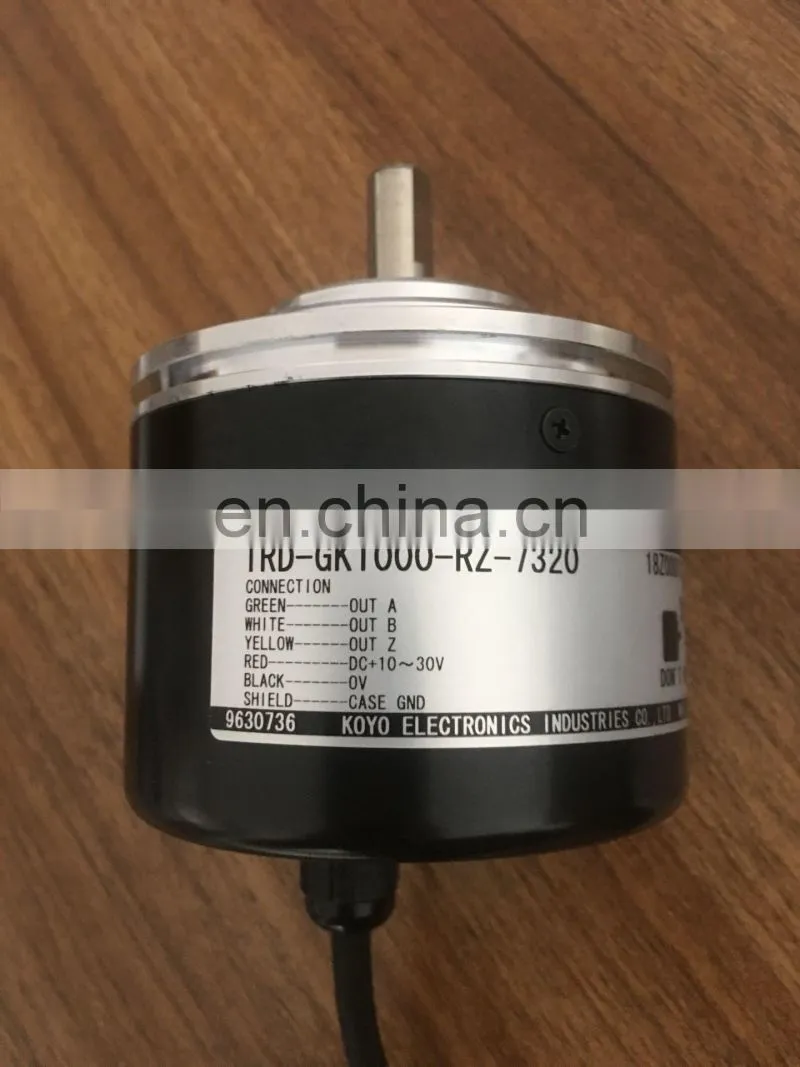

High Precision Photoelectric Incremental Rotary Encoder TRD-GK-1000 1000 Pulse Pugh Pull Output Programmable Sensor DC 15 V
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CALT Sensor Incremental Rotary Encoder GHS581010C12-1024BMK245 Instead of 8.5000.0010.1024.S059 1024 PulseNegotiableMOQ: 1 -
Original Genuine Reflective Type Fiber Amplifier Sensor E3X-NA11 on SaleNegotiableMOQ: 1
-
Original Genuine Hollow Electric Encoder MBE 1024-3-TA 1024 Pulse PLG TS5262N22 Form on SaleNegotiableMOQ: 1
-
Hubner Encoder POG10DN1024I 1024 HTL Incremental EncoderNegotiableMOQ: 1
-
Mini Half Empty Shaft Incremental Rotary Encoder HES Series HES-25-2MD 8mm Hole Diameter 25 Pulse OutputNegotiableMOQ: 1
Product Description
High precision photoelectric incremental rotary encoder TRD-GK-1000 1000 pulse pugh pull output programmable sensor DC 15 V
Product |
TRD-GK series |
Size |
Φ78 * 60mm |
Resolution |
10~5000 P/R |
Output signal form |
AB + Z(BZ forward/reserve +Z) |
Maximum corresponding frequency |
100 KHZ |
Allowable maximum speed |
5000 rpm |
Voltage |
DC 15V~30V |
Output form |
Push pull Short circuit protection circuit with partial load |
Load |
Straightway: 100N Shaft: 50N |
starting torque |
<= 0.1N.m |
Protect class |
Dust type,drip proof type: IP65 |
Operating temperature |
-10 ~ +70℃ |
More Products
certifications
Our Company
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
