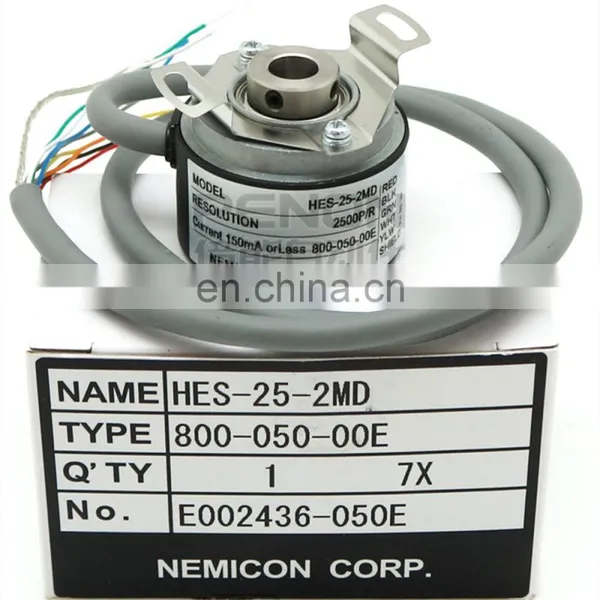

Mini Half Empty Shaft Incremental Rotary Encoder HES Series HES-25-2MD 8mm Hole Diameter 25 Pulse Output
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2010
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Original Import Communication Programmable Controller Module FX5-CCL-MSNegotiableMOQ: 1 -
Original Packing Incremental Rotary Encoder and Resolvers TS5214N8592 5V 2500 Pulse 48mm Diameter OutputNegotiableMOQ: 1
-
Servo STO Input and Output Signal Interface J4 Series Servo CN8 Interface STO Cable MR-D05UDL3M-B 3m LengthNegotiableMOQ: 1
-
High Quality Original Packing Incremental Rotary Encoder and Resolvers TS5214N6504 5V 2500 Pulse 48mm Diameter OutputNegotiableMOQ: 1
-
PD30-06G1000BST5 Mini Optical Rotary Encoder Module 6mm Shaft A B Phase Signal Modular EncoderNegotiableMOQ: 1
Product Description

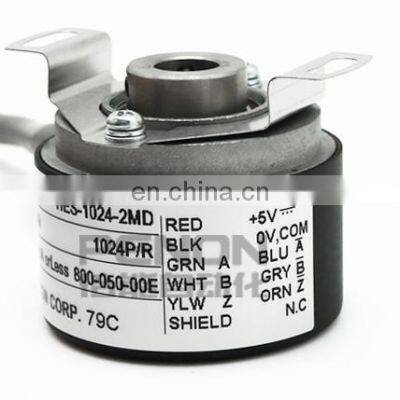

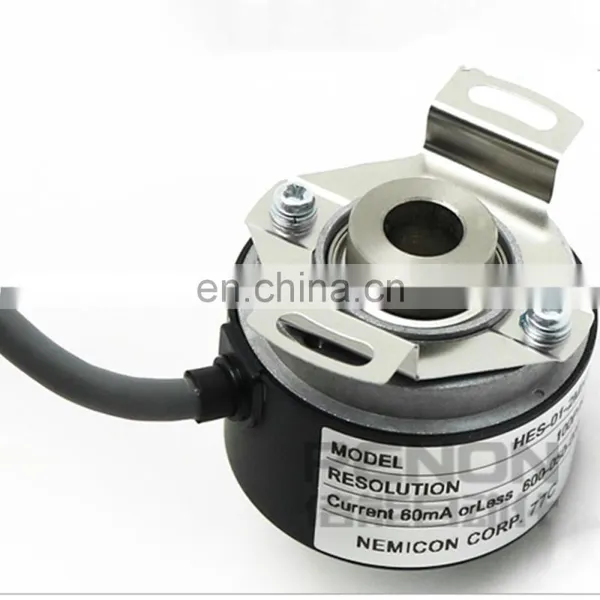

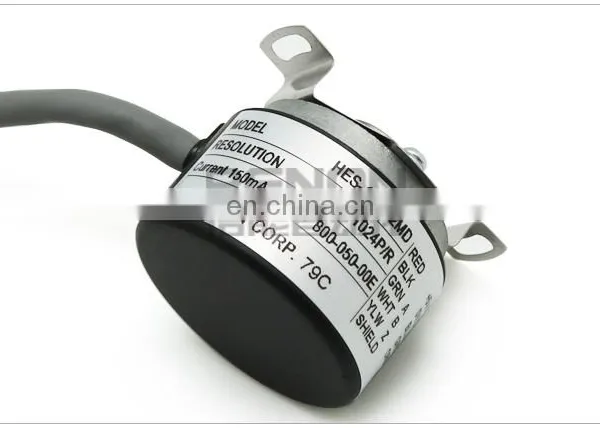

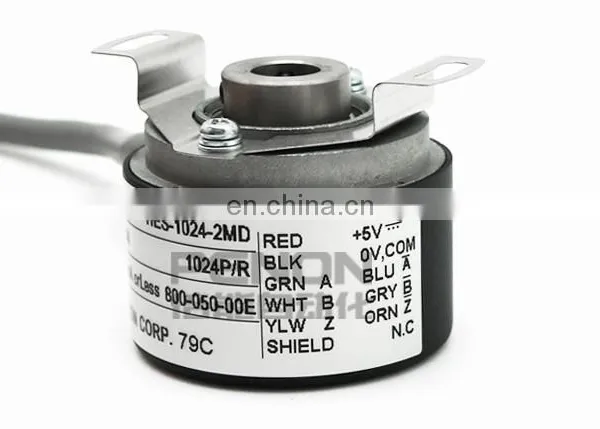

Mini half empty shaft incremental rotary encoder HES series HES-25-2MD 8mm hole diameter 25 pulse output

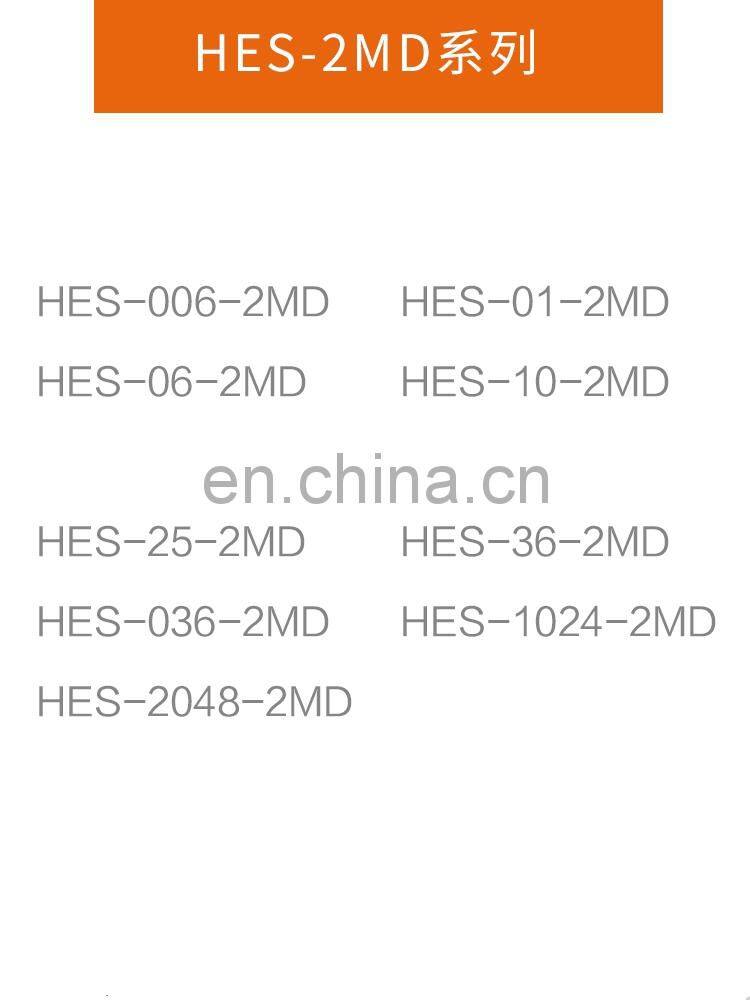

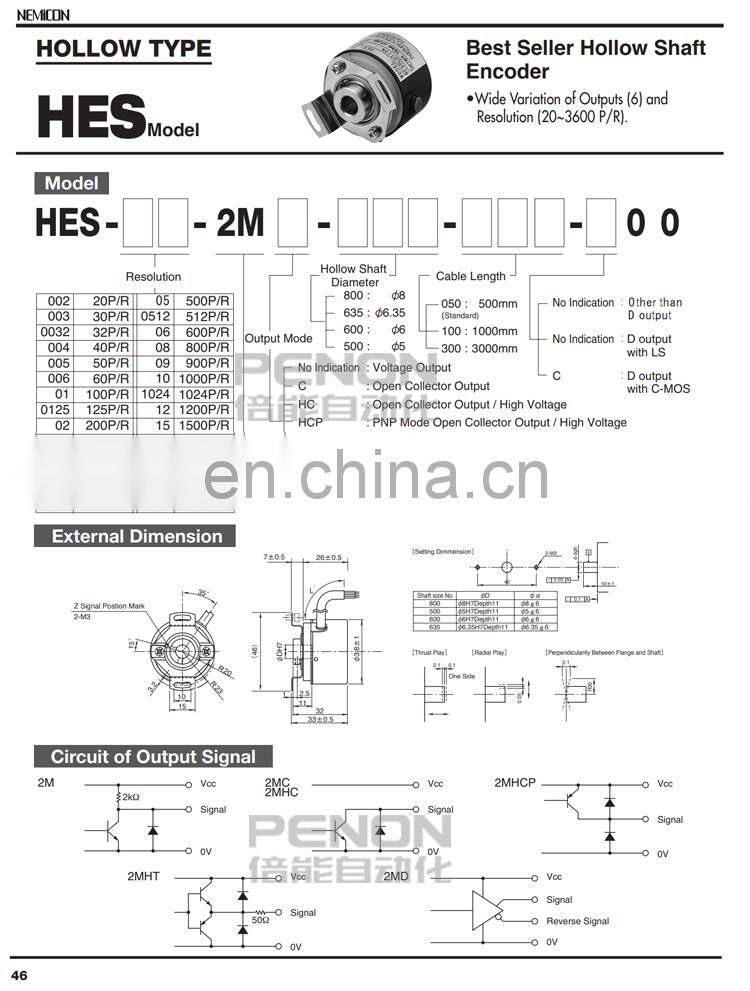

Selection guide
HES Series is a small hollow, multi-shaft diameter, thickness 330 thin encoderES Series is a small hollow, multi-shaft diameter, thickness 330 thin encoder
It is widely used in printing machinery, shoe machine, ceramic machinery, glass machinery, spray decoder, injection moldingmachine, elevator, CNC machine tool, computer embroidery machine, embroidery machine, textile machinery, packaging machinery,carton machinery, oil injection machine, automatic equipment, cutting machinery, knitting machinery and other automatic control fields.It is widely used in printing machinery, shoe machine, ceramic machinery, glass machinery, spray decoder, injection molding machine, elevator, CNC machine tool, computer embroidery machine, embroidery machine, textile machinery, packaging machinery, carton machinery, oil injection machine, automatic equipment, cutting machinery, knitting machinery and other automatic control fields.

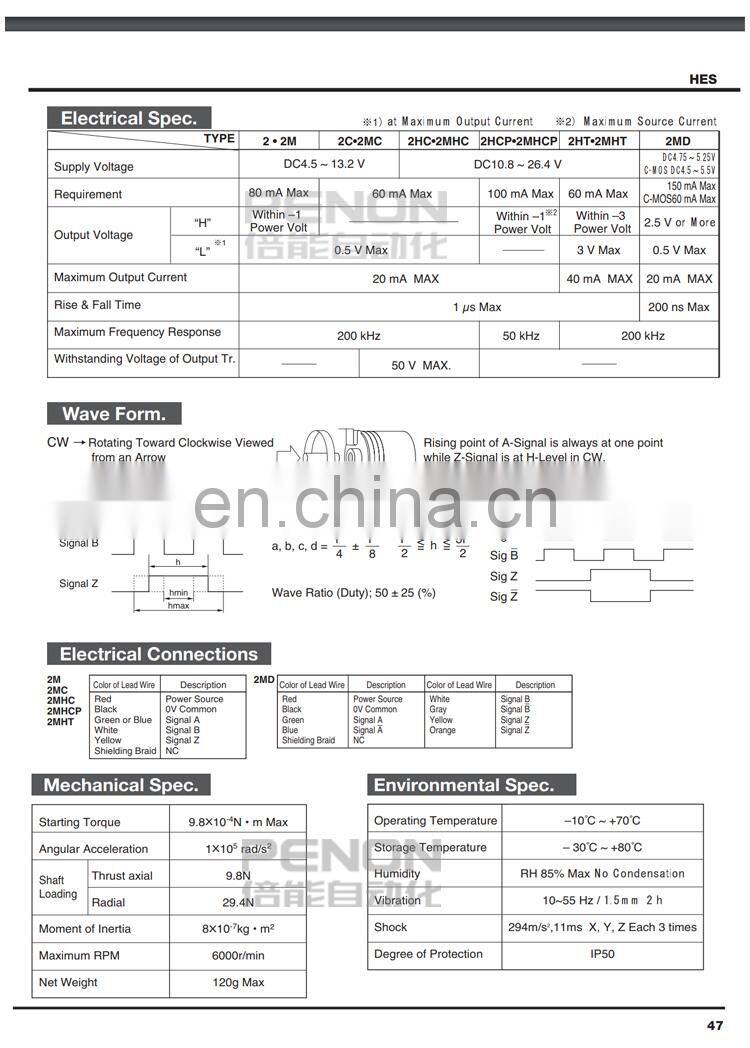

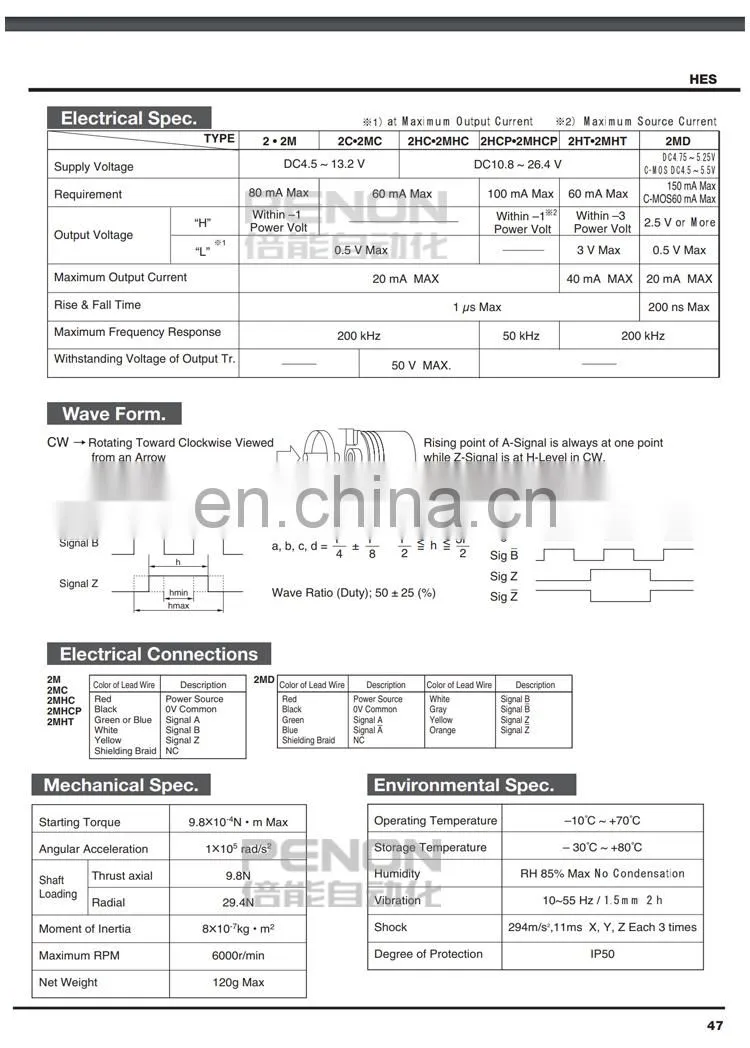

resolution |
25P/R |
Shaft type |
Half-empty shaft |
Supply voltage |
4.75~5.25 V DC |
Available supply voltage |
5V DC |
Output form |
Line driver |
Output signal |
A,B,Z,-A,-B,-Z |
Maximum response frequency |
200KHZ |
Phase difference |
1/4T |
Origin signal width |
1T |
Load current |
<= 500mA |
Output voltage”H” |
> 2.5V |
Output voltage”L” |
<0.5V |
Wave form |
Square wave |

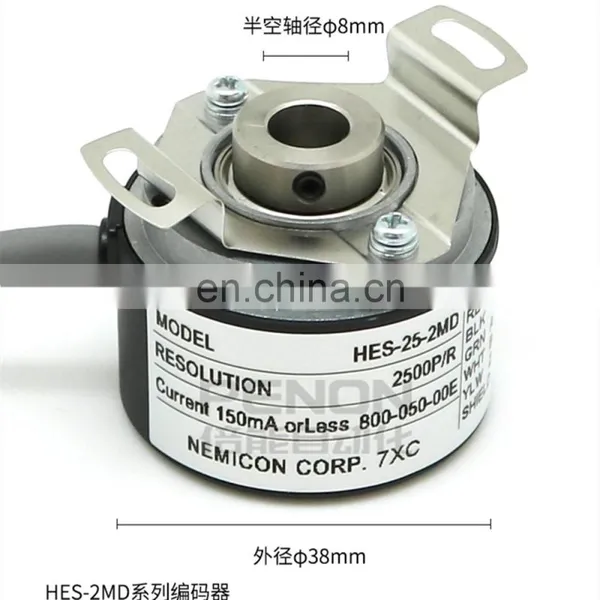

Outer size |
38mm |
shaft |
8mm |
Operating temp. |
-10~70 degree |
Protect class |
IP50 |
