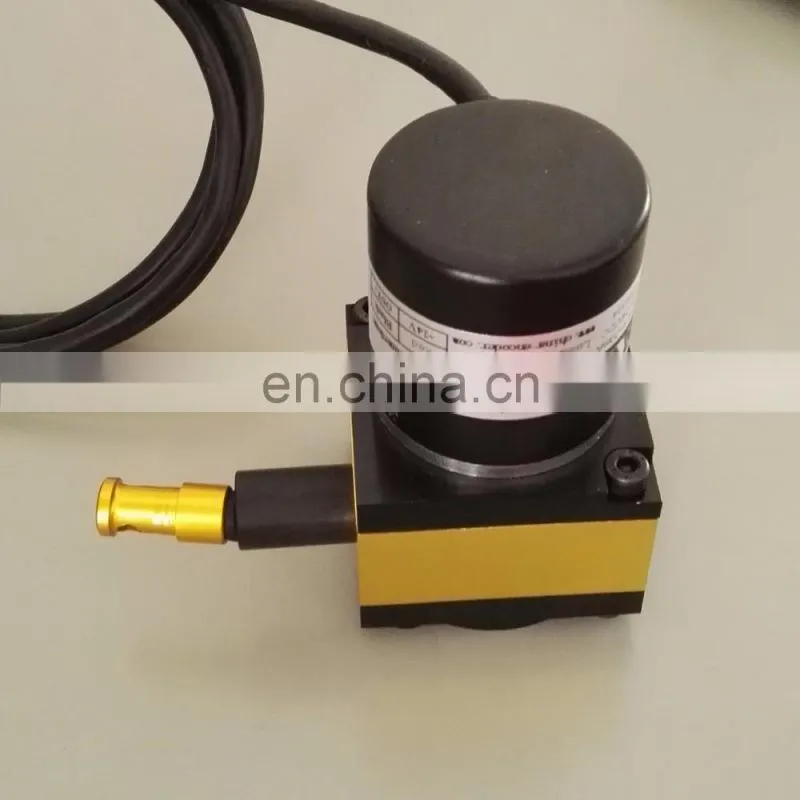

CALT 10K String Potentiometer 200mm stroke



We have measuring range from 400 to 30000mm



Draw wire sensors do not need precise linear guidance and are ideal for wet, dirty, or outdoor environments and applications where your measuring range travels over harsh environments. These include applications in iron, steel, and wood (saw mills, joineries).

Draw wire sensors are also known in the industry as cable transducers, cable-extension transducers, string potentiometers, draw wire transducers, yo yo pots, linear position string pots, and string encoders.



*Compact size, rugged construction, easy to install

*Economic cost, and cost savings for customers

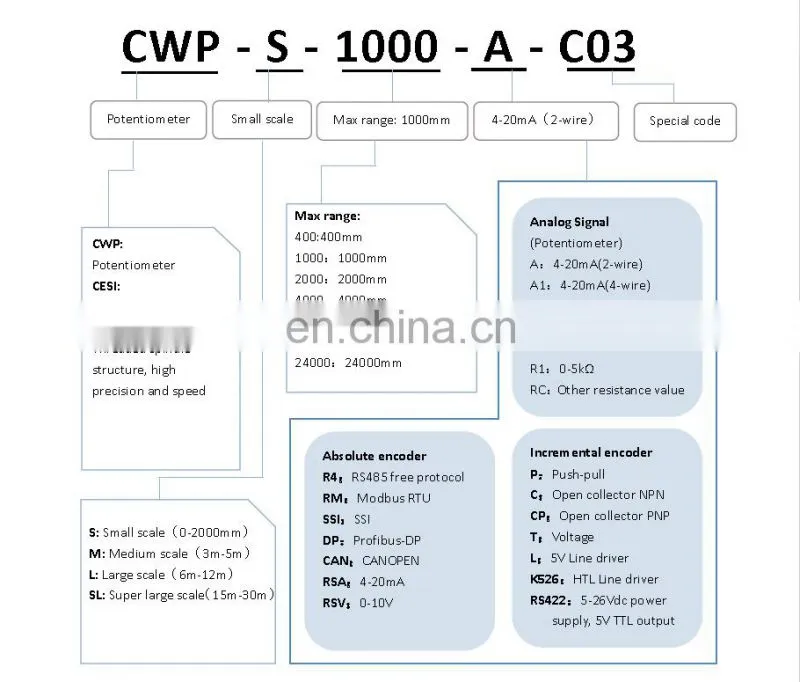

* Various signals output optional: 4 ~ 20mA, 0 ~ 5V, 0 ~ 10V and 0~10KΩ

*The cylinders, testing machines and other industry has achieved large-scale applications, reliability





Detection method

Precision potentiometer

Resolution

Theory of infinite

Measuring rang

0~200mm

Anti-vibration

10HZ - 2000HZ,10G

Output

4~20mA,0~10Vdc,0~5Vdc,

Resistance 0~10K omh

Repeatability

+/-0.02FS

Linearity

Standard:0.25%FS   Precision:0.1%FS

Operating Temperature

-10℃~70℃

rope

wire rope 0.6-1.2mm, rope maximum load: 16KG

Storage Temperature

-20℃~80℃

Starting torque

<600g

protection

IP65/IP54

PULL speed

Max:600m/s

Life

>200 000 times

Operating voltage

12~24VDC

Weight

<600g



CALT 0-10K ohm output String Potentiometer 200mm strokeCALT 0-10K ohm output String Potentiometer 200mm stroke
