CALT 0-10V String Potentiometer 200mm stroke







Draw wire sensors do not need precise linear guidance and are ideal for wet, dirty, or outdoor environments and applications where your measuring range travels over harsh environments. These include applications in iron, steel, and wood (saw mills, joineries).

Draw wire sensors are also known in the industry as cable transducers, cable-extension transducers, string potentiometers, draw wire transducers, yo yo pots, linear position string pots, and string encoders.



*Compact size, rugged construction, easy to install

*Economic cost, and cost savings for customers

* Various signals output optional: 4 ~ 20mA, 0 ~ 5V, 0 ~ 10V

*The cylinders, testing machines and other industry has achieved large-scale applications, reliability





Detection method

Precision potentiometer

Resolution

Theory of infinite

Measuring rang

0~200mm

Anti-vibration

10HZ - 2000HZ,10G

Output

0~10Vdc

Repeatability

+/-0.02FS

Linearity

Standard:0.25%FS   Precision:0.1%FS

Operating Temperature

-10℃~70℃

rope

wire rope 0.6-1.2mm, rope maximum load: 16KG

Storage Temperature

-20℃~80℃

Starting torque

<600g

protection

IP65/IP54

PULL speed

Max:600m/s

Life

>200 000 times

Operating voltage

12~24VDC

Weight

<600g

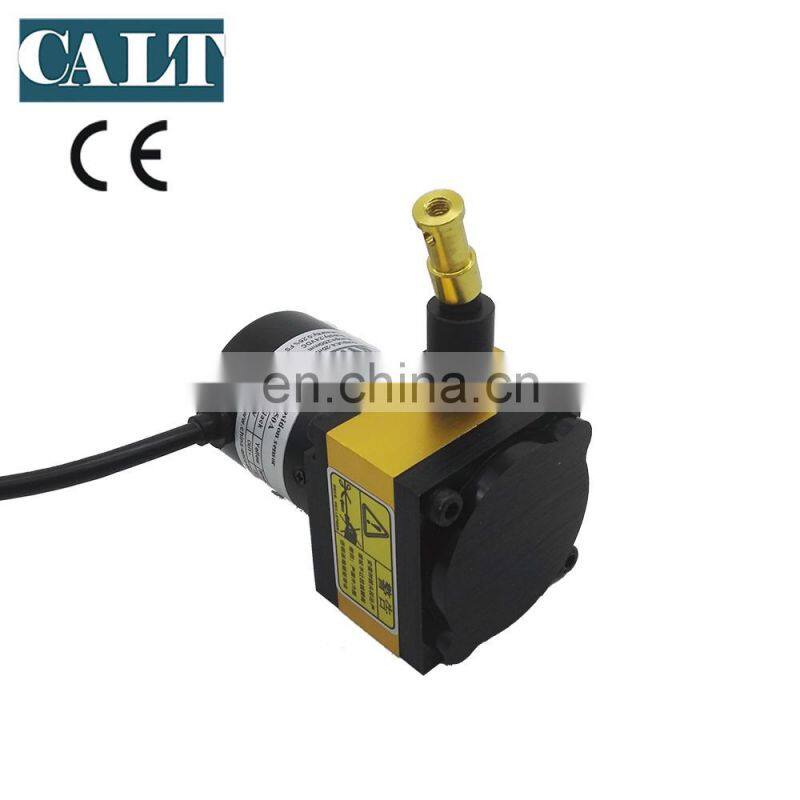

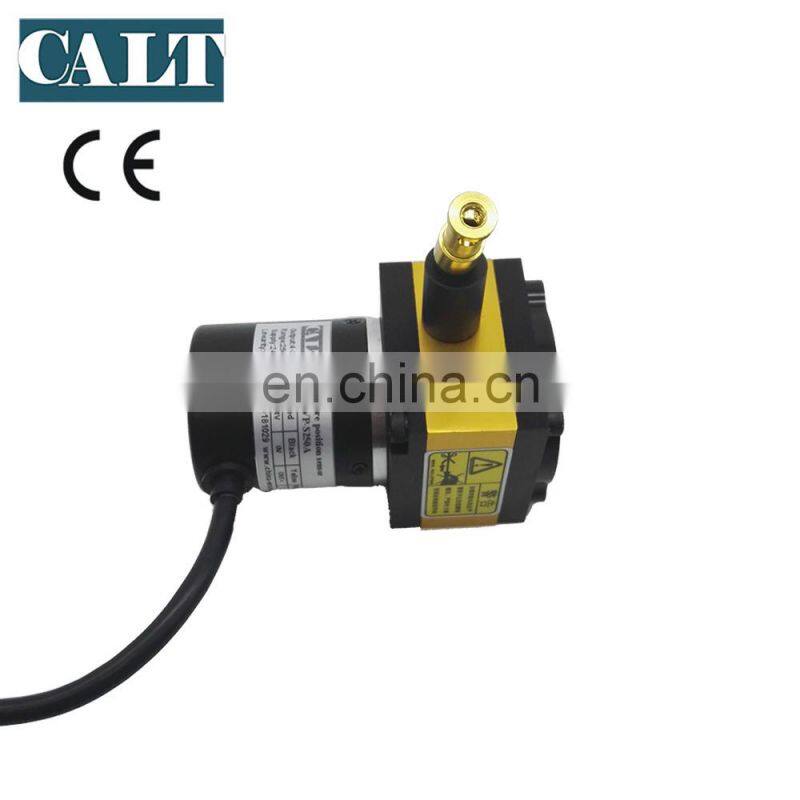

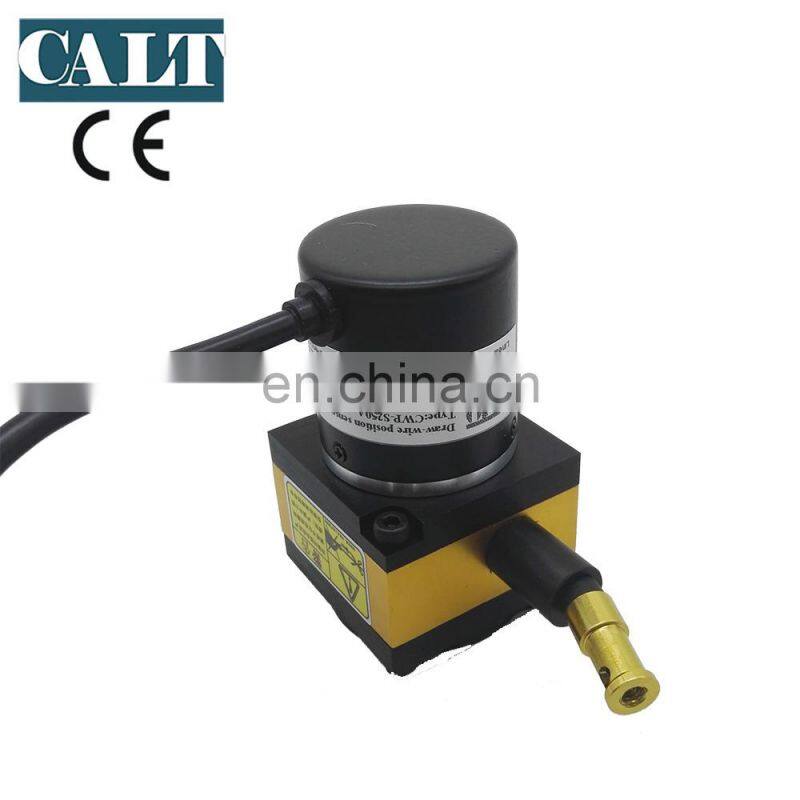

CALT 0-10V output String Potentiometer 200mm stroke draw wire position sensor

 CALT 0-10V output String Potentiometer 200mm stroke draw wire position sensorCALT 0-10V output String Potentiometer 200mm stroke draw wire position sensorCALT 0-10V output String Potentiometer 200mm stroke draw wire position sensor
