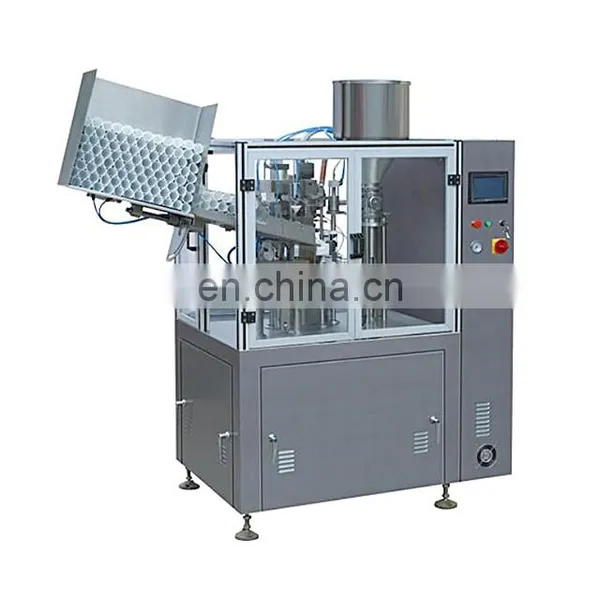

LTRG-30 Plastic Tube Filling and Sealing Machine
This machine adopt fully stainless steel materials, the working process adopt button control as following: manual feeding tube 8-16 seat back and forth rotate, quantitative filling automatic cut, heating and sealing, eject the tube. All the above process adopt cylinder control, easy to adjust filling volume, filling speed is adjustable. This machine is suitable for the filling, sealing, print date, cut of various kinds of plastic and laminated tubes. The appearance of sealing of tube is beautiful and even, sealed firmly, high precision of filling volume, stable performance. Can be equipped with hopper heating system, anti-silk drawing filling head according to different materials.
Type |
LTRG-30 |
|
Power Supply |
380(220)V/50Hz |
|
Power |
4.2kw |
|
Air Consumption |
≤0.6squaremeter/min |
|
Filling Volume |
5ml-75ml |
50ml-500ml |
Volume Precision |
≤±3% |
≤±2% |
Productivity |
9-40(pcs/min) |
|
Tube Diameter |
Φ12-Φ50mm |
|
Dimension |
1500x1200x1500mm |
|
Weight |
300kg |
|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
