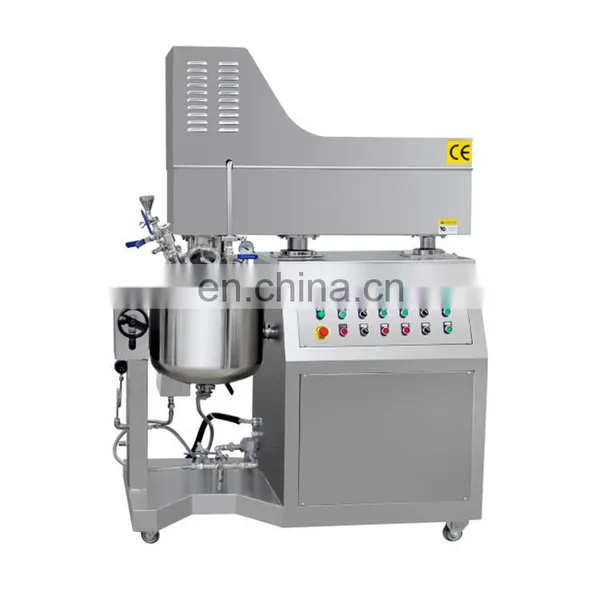

LTZR-5 PLC Control Small Lab Emulsifier Mixer

Name: LTZR-5 PLC Control Small Lab Emulsifier Mixer
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Attention: 1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us. 2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat. 3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Product Description

The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Features:

1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;

2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;

3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;

4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.

5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

Manufacturer	China LTPM Group Co., LTD
PN	200L vacuum emulsifying mixer
Capacity	Design volume: 200L, working capacity:160L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 4mm
			Middle layer: SUS304 thickness: 4mm
			Outside layer: SUS304 thickness:3mm
	configuration		Bottom material exhaust, size: 1.5”
			Temp. sensor (0-199℃)
			Electrical heating: 8kw, cooling water inlet
Stirring system	Homogenizer	1．Material: SUS316L; standard homogenizer 2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min
	Stirring scrap and middle stirring	Material: SUS316L，Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2、Power：1.5 kw/380V/50Hz；RPM：0~86r/min（Frequency control） 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness
Dimension	1900mm×600mm×2650~3500 mm
	Shelf is SS, platform with raised platform and SS guardrail
Spare parts	One year spare parts and tools
Guarantee	One year
Using life	More than 15 years

Product Details

Product Highlights

HIGH SHEAR HOMOGENIZER

Fast agitator: Teethed type rotor and stator assembly installedon the vessel Bottom or on the top as optional items,severalinterchangeable configurations are available.

FRAME MIXER

Dead-end stirring,with sufficient mixing area and good stirring effect.

HYDRAULIC LIFTING SYSTEM

Used for material discharge and cleaning.It is more convenient and safer for the operator.

PHARMACEUTICAL GRADE MATERIAL

High quality SUS304 & 316L material, internal andexternal mirror polish of homogenizer tank.

Final Product
