Packing Line Automatic Cardboard Carton Unpacking Bottom-Sealing Carton Forming Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cosmetic Mask Packing Machine Mask Box Health Medicine Packaging Machine Spin-on Cartoning MachineNegotiableMOQ: 1 -
Fully Automatic Vertical Cartoning Machine Coffee Stick Cartoner Packaging Bags Cartoning MachineNegotiableMOQ: 1
-
Coffee Capsule Cartoning Box Packing Machine Soap Cartoning Machine Carton Box Packing MachineNegotiableMOQ: 1
-
Bag Small Packaging Machine Powder Coffee Sugar Carton Honey Carton Packaging MachineNegotiableMOQ: 1
-
Manufacturers Automatic Chocolate Bar Food Cartoning MachineNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.

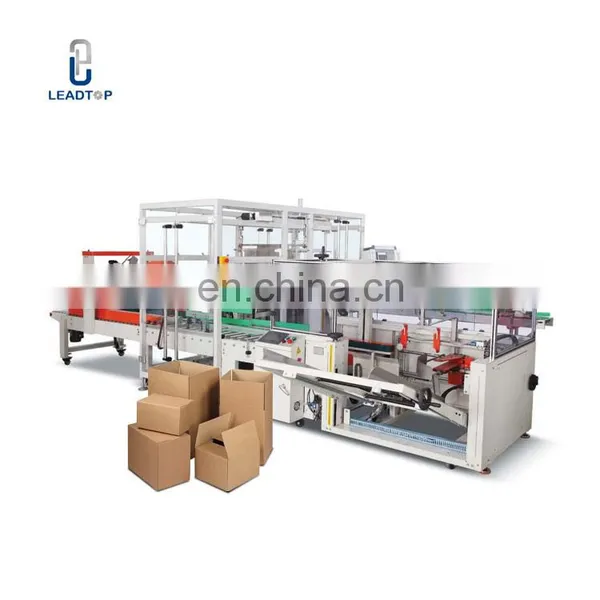

CPM-15 Automatic carton unpacking packing and sealing machine
CPM-15 Automatic carton unpacking packing and sealing machine is a fully automatic packaging equipment specially developed for automatic packaging.
The packing line can realize unpacking - packing - sealing - in box detection - suitable for large-scale production of
pharmaceutical and daily chemical products.
Fully automatic unmanned packaging operation, the equipment is stable, the production efficiency can reach 1-24 boxes / min, and all performances have reached the international advanced level.
pharmaceutical and daily chemical products.
Fully automatic unmanned packaging operation, the equipment is stable, the production efficiency can reach 1-24 boxes / min, and all performances have reached the international advanced level.
Technical Parameters
Model |
CPM-15 |
Theoretical maximum production capacity |
300 (boxes/hour) |
Actual production capacity |
≤24 carton/min （depending on the packing quantity） |
Carton size |
Minimum: 220×150×120 ; Maximum: 500×400×400 |
Power supply |
AC380 / three-phase / 50Hz |
Power |
7.5kw |
Air pressure |
0.6MPa |
Air consumption |
＜1m³/hour |
Dimensions |
5200*1600*2400 |
Weight |
2500kg |
Main materials |
aluminum alloy, carbon steel, stainless steel |
Product Details
-01
The whole line automatically completes unpacking, packing and sealing, effectively reducing labor costs;
-02
- French Schneider high-end PLC control system with three servo motors;
- With stand-alone independent debugging and production control, adjustable screen display and output statistics, machine
operating speed, equipment and other fault numbers, Chinese display and prompts;
- With stand-alone independent debugging and production control, adjustable screen display and output statistics, machine
operating speed, equipment and other fault numbers, Chinese display and prompts;
-03
Side push packing, neat stacking, stable and reliable block objects;
-04
It has carton quality and carton reserve detection and monitoring, fault alarm, fault shutdown and emergency shutdown and other safety protection functions;
-05
It has carton quality and carton reserve detection and monitoring, fault alarm, fault shutdown and emergency shutdown and other safety protection functions;
-06
The packing shall be smooth without damaging the appearance of the carton. The appearance of the finished carton shall be intact,tidy and qualified
-07
- The adjustment of the replacement specification station adopts self-locking wrench, rocker, and hand wheel to exchange quickly, and has strong versatility.
- Convenient and accurate adjustment can be made when the stacking specification and carton specification change;
- Convenient and accurate adjustment can be made when the stacking specification and carton specification change;
