Fully Automatic Corner Edge H Type Box Sealing Tape Machine Edge Banding Corner Rounding Machine

Fully Automatic Corner Edge H Type Box Sealing Tape Machine Edge Banding Corner Rounding Machine photo-1
Fully Automatic Corner Edge H Type Box Sealing Tape Machine Edge Banding Corner Rounding Machine photo-2

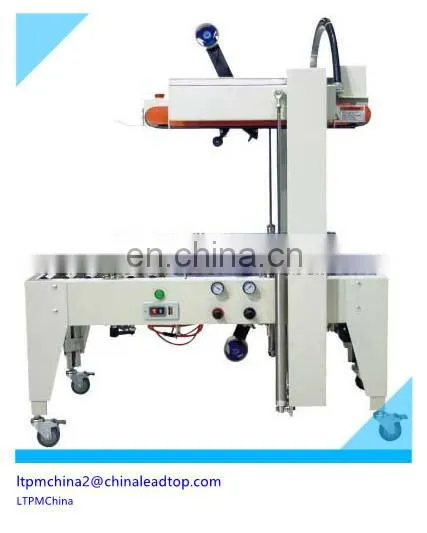

Fully Automatic Corner Edge H Type Box Sealing Tape Machine Edge Banding Corner Rounding Machine photo-3

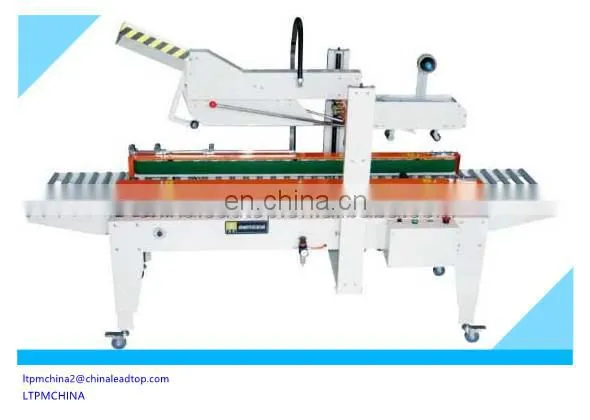

Fully Automatic Corner Edge H Type Box Sealing Tape Machine Edge Banding Corner Rounding Machine photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

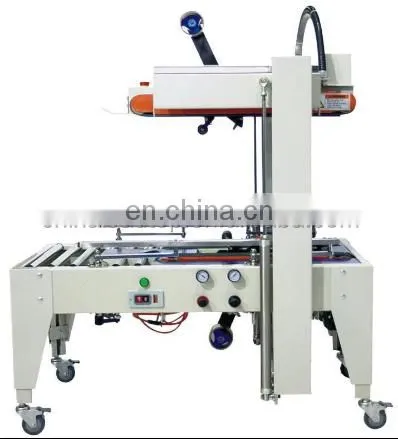

Fully Automatic corner edge H type box sealing tape machine edge banding corner rounding machine



Technology Procedure



Semi-Automatic Case-sealing Machine



Fully Automatic corner edge H type box sealing tape machine edge banding corner rounding machine

Model

FXJ-6050

Sealing Capacity

About 1000 standard cased per hour

Adhesive tape used

Bopp, PVC, Adhesive tape

Width of adhesive tape

48,60mm

Power sources

220-240V,50-60HZ,250W

Max sealing size(W*H)

500*600mm

Min sealing size(W*H)

140*150mm

Max loading weight

20kgs

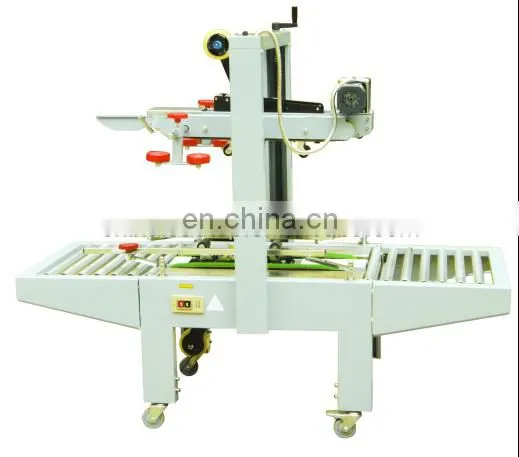

Fully Automatic corner edge H type box sealing tape machine edge banding corner rounding machine

Model

FXJ-5050B

Sealing Capacity

About 1000 standard cased per hour

Adhesive tape used

Bopp, PVC, Adhesive tape

Width of adhesive tape

48,60mm

Power sources

220-240V,50-60HZ,250W

Max sealing size(W*H)

500*500mm

Min sealing size(W*H)

120*110mm

Max loading weight

20kgs





Automatic carton sealing machine

Fully Automatic corner edge H type box sealing tape machine edge banding corner rounding machine

Model

QXJ-5050

Sealing Capacity

About 1000 standard cased per hour

Adhesive tape used

Bopp, PVC, Adhesive tape

Width of adhesive tape

48,60,70mm

Power sources

220-240V,50-60HZ,250W

Max sealing size(W*H)

500*600mm

Min sealing size(W*H)

180*100mm

Max loading weight

20kgs



Fully Automatic corner edge H type box sealing tape machine edge banding corner rounding machine

Model

FXJ-5050Z

Sealing tape speed

16m/min

Adhesive tape used

Bopp, PVC, Adhesive tape

Width of adhesive tape

48,60mm

Power sources

220-240V,50-60HZ,250W

Max sealing size(L*W*H)

600*500*500mm

Min sealing size(L*W*H)

180*130*130mm

Height of working table

810mm
