Automatic Hydrogel or Cataplasm Patch Packing Machine
This machine is the company's research staff on the basis of the multi-function horizontal packaging machine,
And absorb foreign advanced technology, combined with national conditions, strictly according to 'GMP' specifications,Advanced product specifically designed for strapping packaging, the machine set bag, loaded strapping tablets, batch number printing, sealing four sides, tear open the mouth, cutting and packaging products delivery all in one operation.The human machine interface,All host servo motor control,Bag length accuracy and stability,Having about automatic correction,Before and after the photoelectric version,Six groups of temperature control,Loading free to set other characteristics,The aircraft's successful trial,Plaster ended with hand-packed history,The superior performance of the machine,High technology content,Plaster is the preferred automatic packaging equipment.
Main technical parameter:
Production capacity | 30-120 packets/min |
Packing size | L 60-170mm, W 60-120mm, H 1-10mm |
Compressed air | ≥0.1m3/min |
Rated frequency | 50Hz |
Rated voltage | AC380V (three phase and four wire) |
Total power | 7KW |
Weight | 1200kg |
Overall dimensions | Length x width x height 5000x2020x1630 mm |
Applicable packaging products:

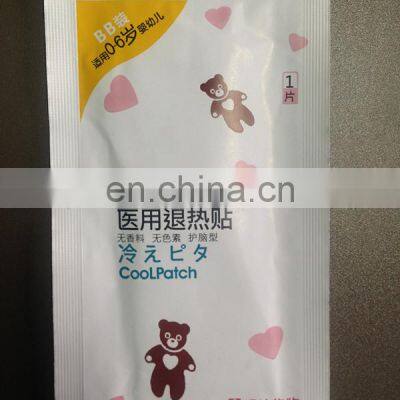

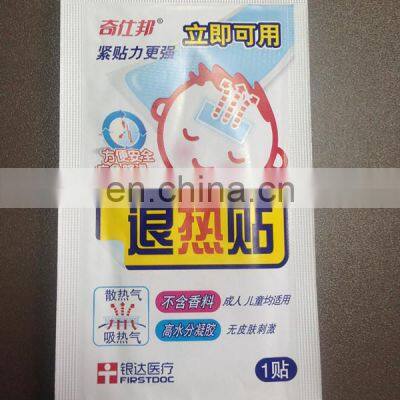

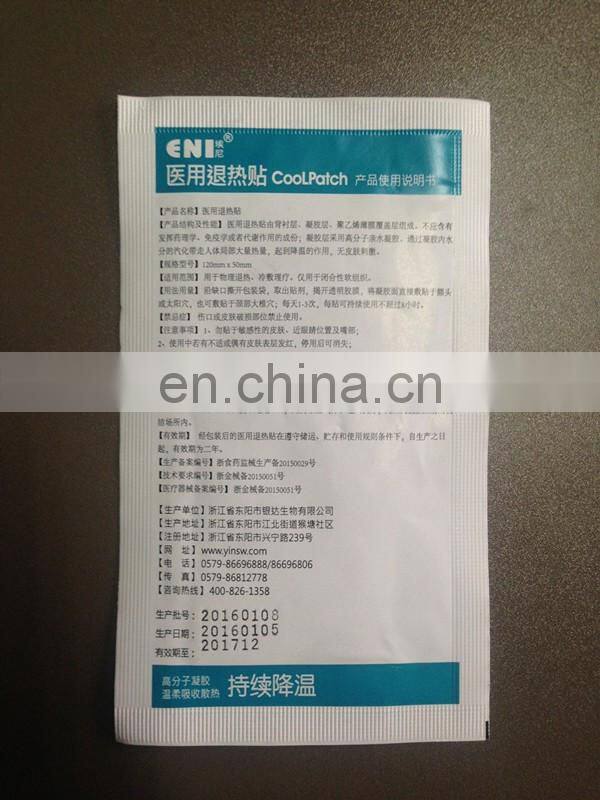

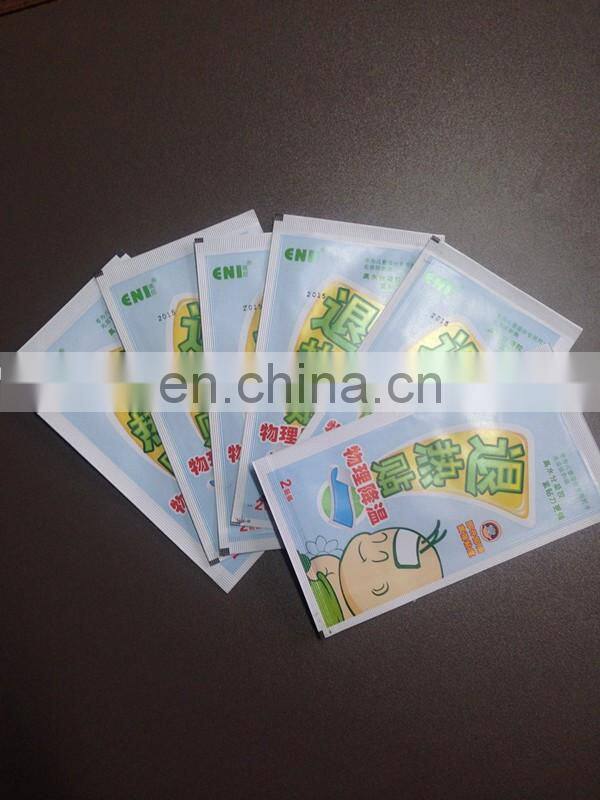

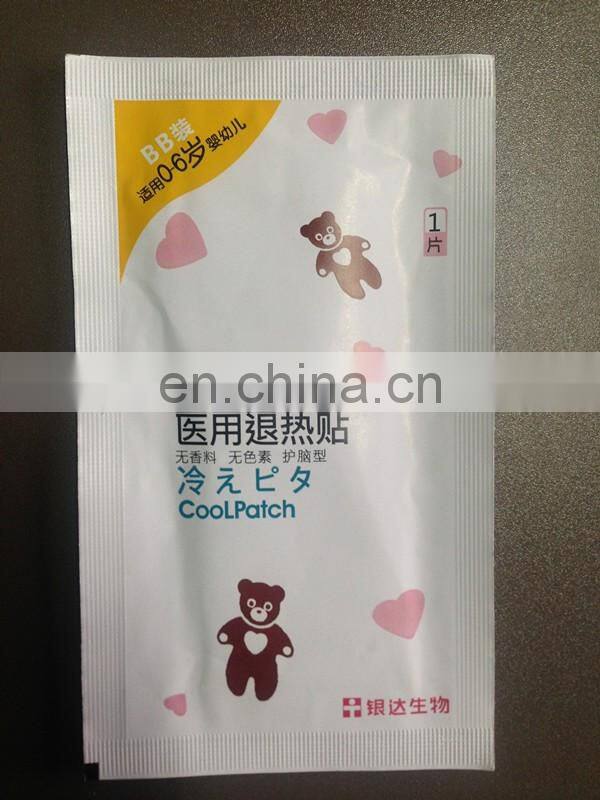

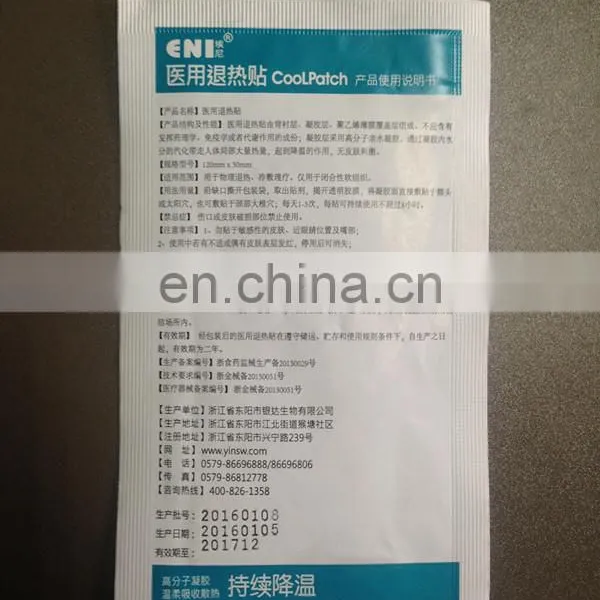

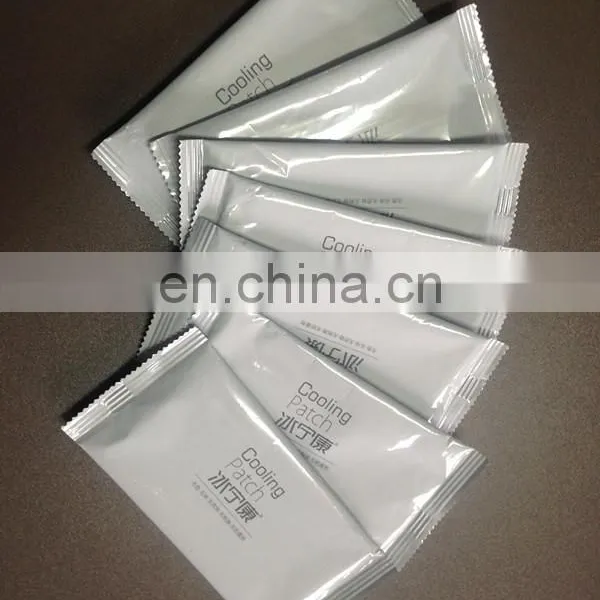

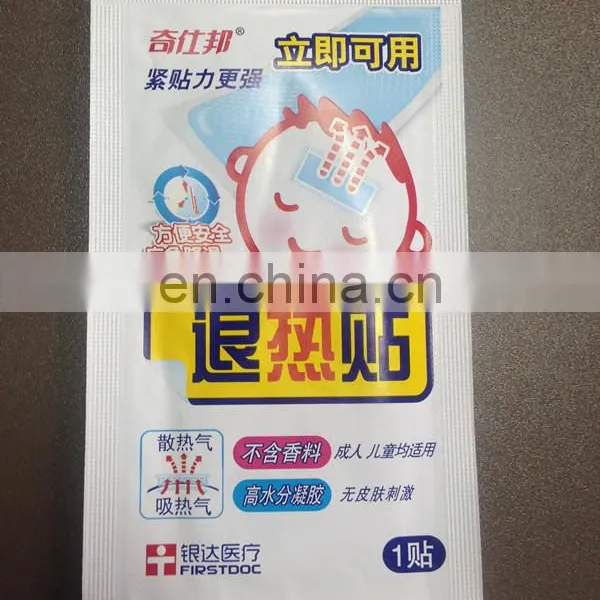

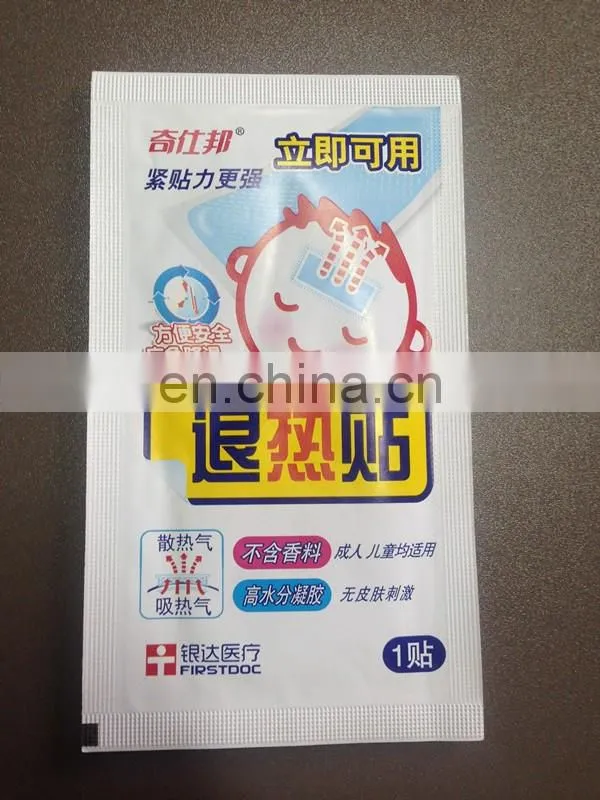

This machine is suitable for plaster, nonwovens, warm baby and other needs four sides sealing sheet products.
Optional Accessories:
1, programmable control: PLC programmable controller and servo motors, the machine runs procedures.
2, the touch-screen display: speed of the host, set the bag length, the actual length of the bag, the amount of compensation, the output will be displayed on the screen at a glance.
3, automatically adjust the bag length: the length of the conversion package on the touch screen to set their own, automatically adjust the length by a computer program, very easy and fast.
4, two-way compensation standard: imported photoelectric detection of color, combined with servo motor controlled by PLC computer programming, automatic tracking, benchmarking so fast and accurate.
5, the right and left optical correction code: Justify the bag, smooth and beautiful.
6, memory storage: 10 sets of data with a memory function.
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
For more information's, please feel free to contact with us by mail or telephone call.

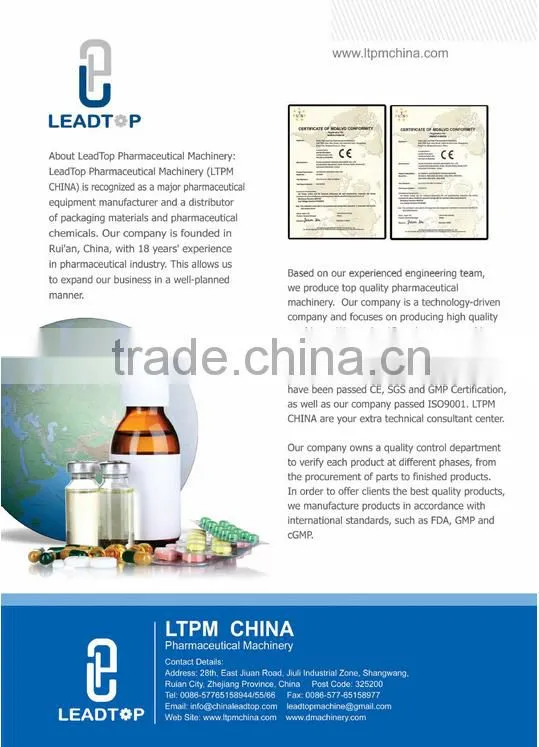

LTPM CHINA,Your best pharmaceutical production solution!
