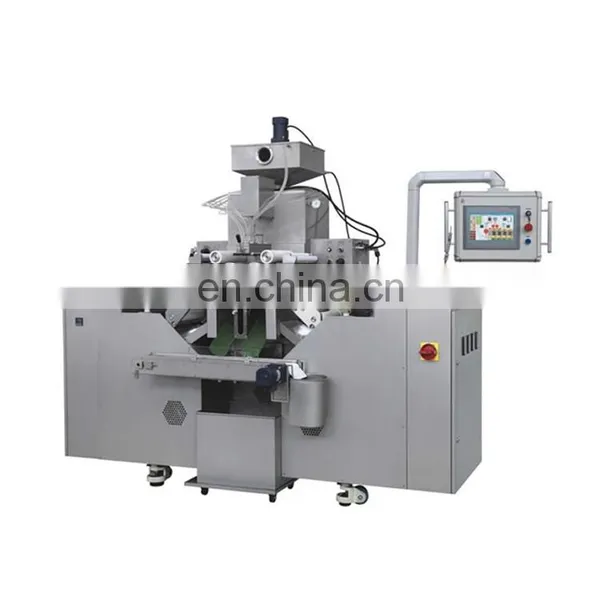

Factory Direct Supply Automatic Fish Oil Soft Capsule Liquid One-Time Forming Filling Soft Capsule Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Vitamin Cod Liver Oil Facial Serum Soft Capsule MachineNegotiableMOQ: 1 -
Five-Year Warranty Automatic Cotton Swab Making Packaging Machine Production LineNegotiableMOQ: 1
-
Small Desktop Capsule Tablet Pill Chewing Gum Candy Counting MachineNegotiableMOQ: 1
-
DPP-88 Small Aluminum Plastic Blister Packing MachineNegotiableMOQ: 1
-
NJP-1200 Automatic Maca Powder Capsule Filling Machine CE Certified GMP Approved With Validation DocumentNegotiableMOQ: 1
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2.Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Application and Usage:
Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.
Machine Details
Featuer:

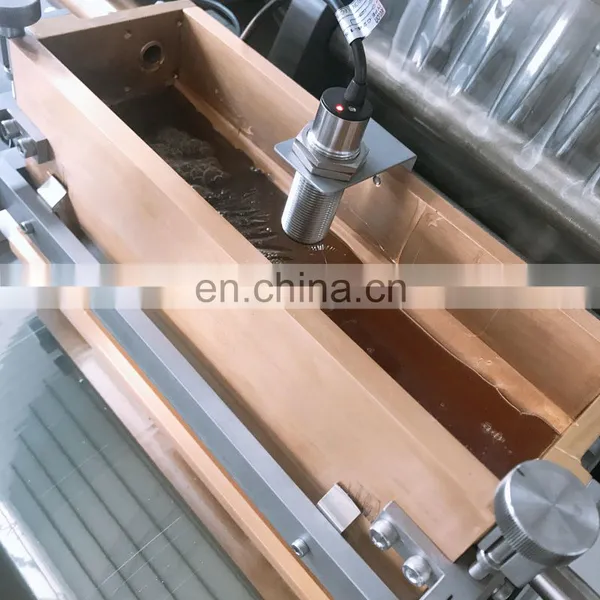

9.The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the
thickness of rubber, which is easy and accurate in adjustment.
1.Strong product capacity, it can produce 600 million granules (No.8 oval shape, 3 revolutions/minute, 24 hours / day,
300 days/year).
300 days/year).
2.Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.
3.Capsule package rate is up to 98%.
4.The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
5.Adopts food conveyor belt without poison and inhibitor and easy to clean.
6.Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
7.Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.
8.Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
9.The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the
thickness of rubber, which is easy and accurate in adjustment.
10.The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).
11.Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.
Technical Parameters
Main Technical Data: | ||||||||
ITEM/MODEL | LTRJ-110 | LTRJ-180 | LTRJ-200 | LTRJ-250 | ||||
Rotary speed of die roll | 0-4rpm | 0-5rpm | 0-5rpm | 0-5rpm | ||||
Supplying Volume for flow single-pillar pistol | 0-1ml | 0-2ml | 0-2ml | 0-2ml | ||||
Difference among filling volume | ±2% | ±2% | ±2% | ±2% | ||||
Power for whole machine | 4KW | 6.5KW | 7.5KW | 16.5KW | ||||
Pillar quantity | 8 | 12 | 12 | 20 | ||||
Contour sizes | 600×850×1650mm | 790×920×2100mm | 1500×1150×2000mm | 2300×1275×2400mm | ||||
Weight of whole machine | 650Kg | 980Kg | 1050Kg | 2800Kg | ||||
Gelatin Melting Tank
This temperature control gelatin dissolving unit can be used in combination with laboratory soft gelatin encapsulation machine to provide gelatin liquid for making soft gelatin capsule.
Physic Volume：50L
Gelatin Dissolving Volume：30L
Power of Motor：2.48Kw
Dimension：800*550*1590mm
Weight：200kg
Machine | Tumble Dryer |
Rotary cage quantity | 2 sections |
Rotaty cage speed | 13r/min |
Power Supply | 380v 50Hz |
Fan capacity | 960m³/h X2 |
Fan power | 380V 200WX2 |
Dimensions | 1700X770X865mm |
N.W.: | 170kg |
Total power | 1.2kw |
Application Products
More Products
Company Profie
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.

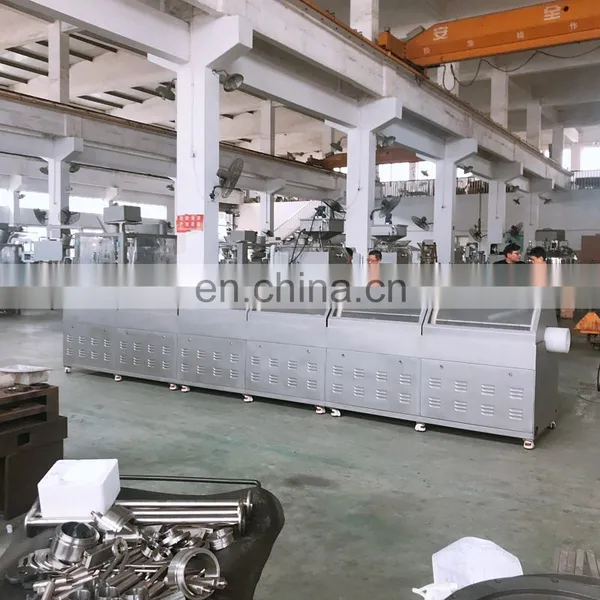

Our Machinery Manufacturing Workshop

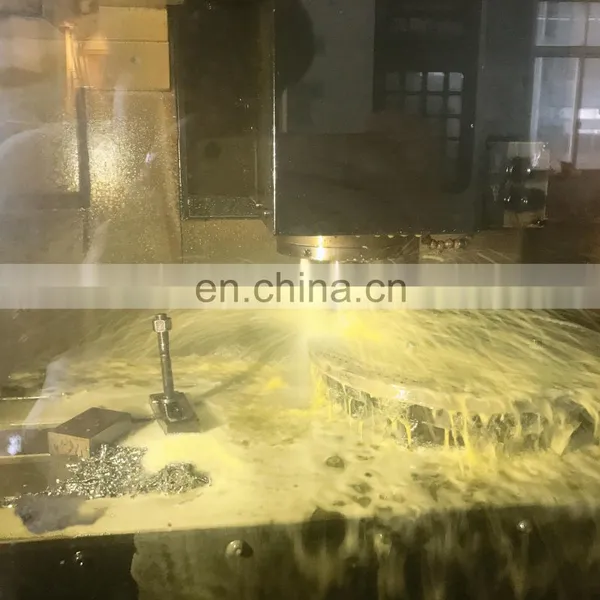

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Any other doubts about our machine, please feel easy to contact with us.
